Yagon Series

RECESSED DOWNLIGHT

Overview

  • Frosted Diffuser
  • LED Type: Phillips 2835 SMD
  • Non-Dimmable Driver: Boke Flicker-Free
  • Triac Dimmable Driver: AIDimming
  • 0-10V Dimmable Driver: AIDimming
  • DALI Dimmable Driver: Boke Flicker-Free
  • Full 5-year warranty
  • IP Rating: IP65

Customisations

  • Dimming: Non-Dimmable, Triac Dimmable, 0-10V Dimmable or DALI Dimmable
  • Beam Angles: 120°
  • CCT: 2700K, 3000K, 3500K, 4000K, 5000K
  • Trim & Internal Colour: White, or Custom Colour

Product Details



MODEL NO WATTAGE EFFICACY (Lumens/Watt) SIZE CUTOUT WEIGHT BEAM ANGLE

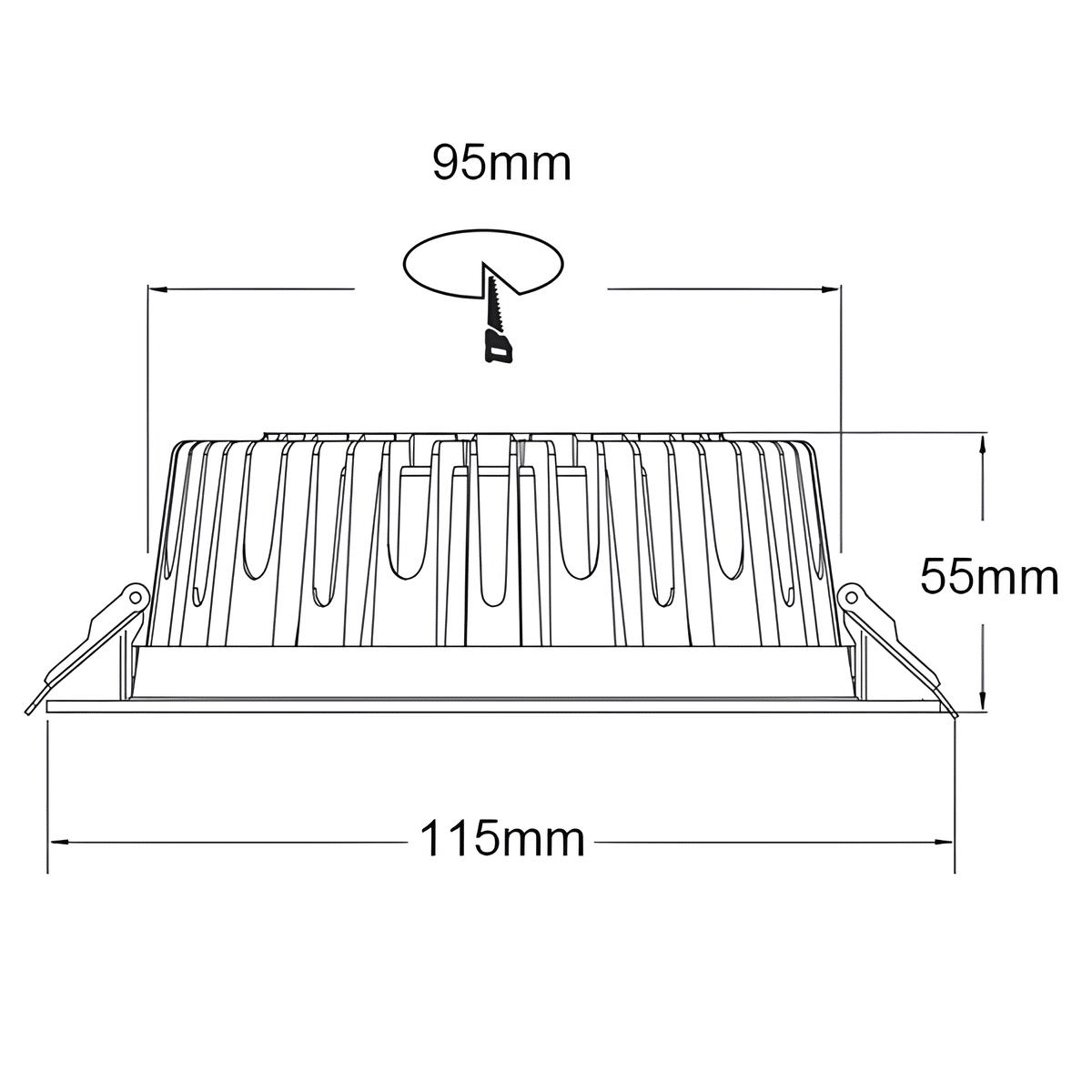

AES-20-A12-115-10W 10W 90lm/W-100lm/W 115mmØ x 55mmH 95mmØ 0.46kg 120°
AES-20-A12-115-15W 15W 90lm/W-100lm/W 115mmØ x 55mmH 95mmØ 0.46kg 120°

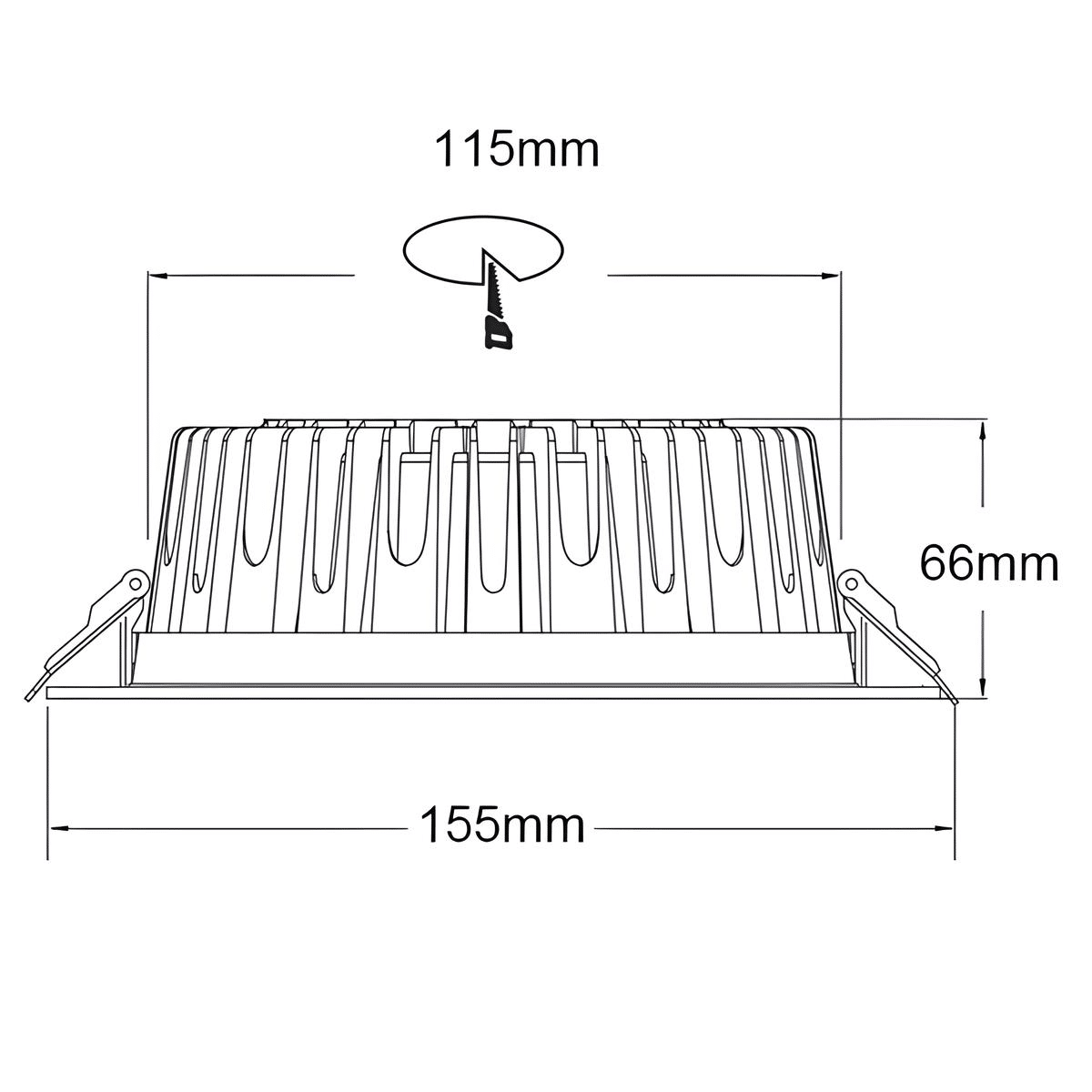

AES-20-A12-155-20W 20W 90lm/W-100lm/W 155mmØ x 66mmH 115mmØ 0.62kg 120°
AES-20-A12-195-20W 20W 90lm/W-100lm/W 195mmØ x 66mmH 170mmØ 0.67kg 120°

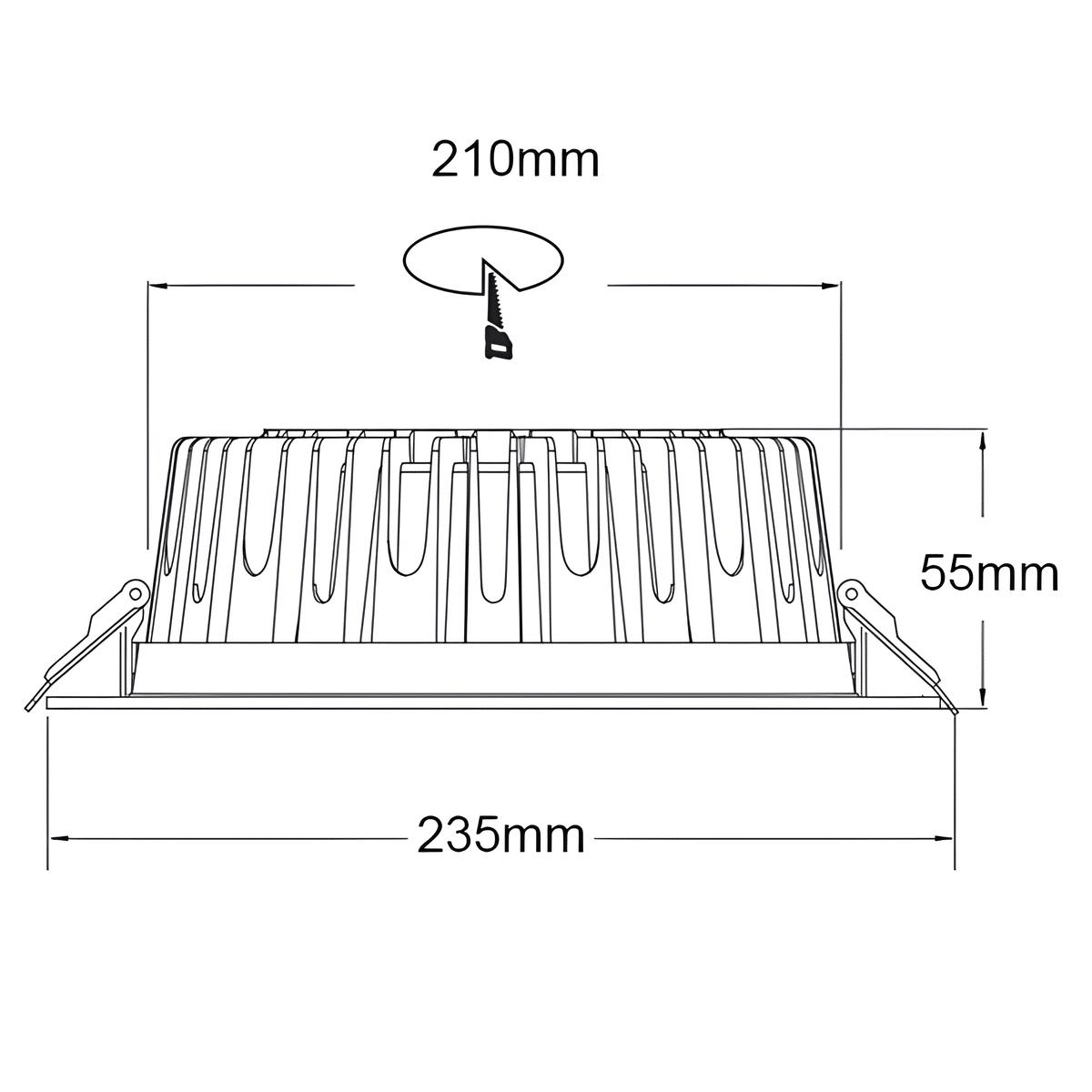

AES-20-A12-230-30W 30W 90lm/W-100lm/W 230mmØ x 55mmH 210mmØ 0.92kg 120°
