Yelta Series

RECESSED DOWNLIGHT

Overview

  • Smooth Reflector
  • LED Type: Phillips 2835 SMD
  • Non-Dimmable Driver: Boke Flicker-Free
  • Triac Dimmable Driver: AIDimming
  • 0-10V Dimmable Driver: AIDimming
  • DALI Dimmable Driver: Boke Flicker-Free
  • Full 5-year warranty
  • IP Rating: IP20

Customisations

  • Dimming: Non-Dimmable, Triac Dimmable, 0-10V Dimmable or DALI Dimmable
  • Beam Angles: 70°
  • CCT: 2700K, 3000K, 3500K, 4000K, 5000K, 5700K
  • Trim Colour: White or Custom Colour
  • Reflector Colour: White, Shiny Silver, Matt Silver or Custom Colour

Product Details



MODEL NO WATTAGE EFFICACY (Lumens/Watt) SIZE CUTOUT WEIGHT BEAM ANGLE
AES-20-A15-110-8W 8W 80lm/W-90lm/W 110mmØ x 68mmH 90mmØ 0.38kg 70°
AES-20-A15-110-10W 10W 80lm/W-90lm/W 110mmØ x 68mmH 90mmØ 0.38kg 70°
AES-20-A15-140 15W 80lm/W-90lm/W 140mmØ x 68mmH 120mmØ 0.45kg 70°

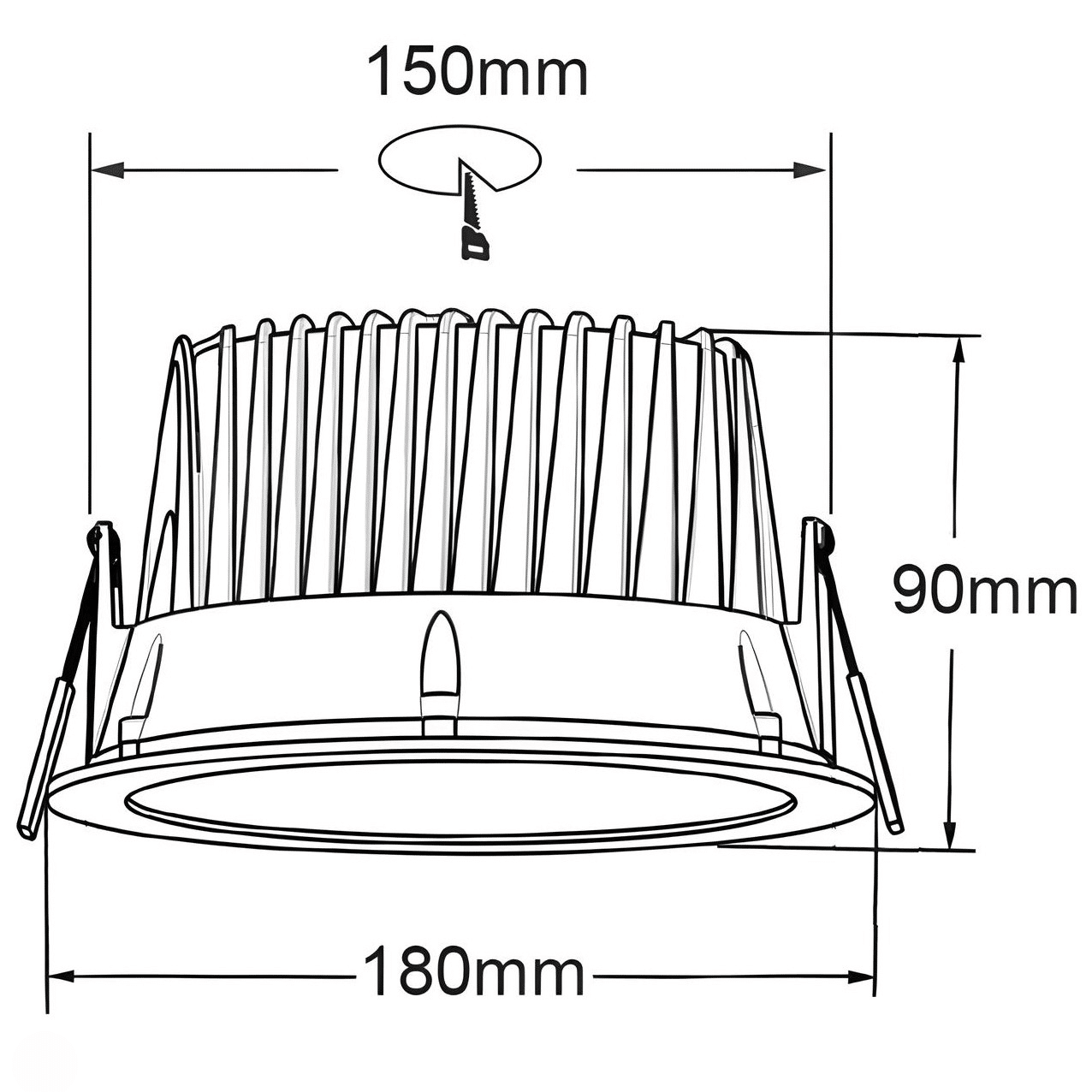

AES-20-A15-180-20W 20W 80lm/W-90lm/W 180mmØ x 90mmH 150mmØ 0.85kg 70°
AES-20-A15-180-30W 30W 80lm/W-90lm/W  180mmØ x 90mmH 150mmØ 0.85kg 70°

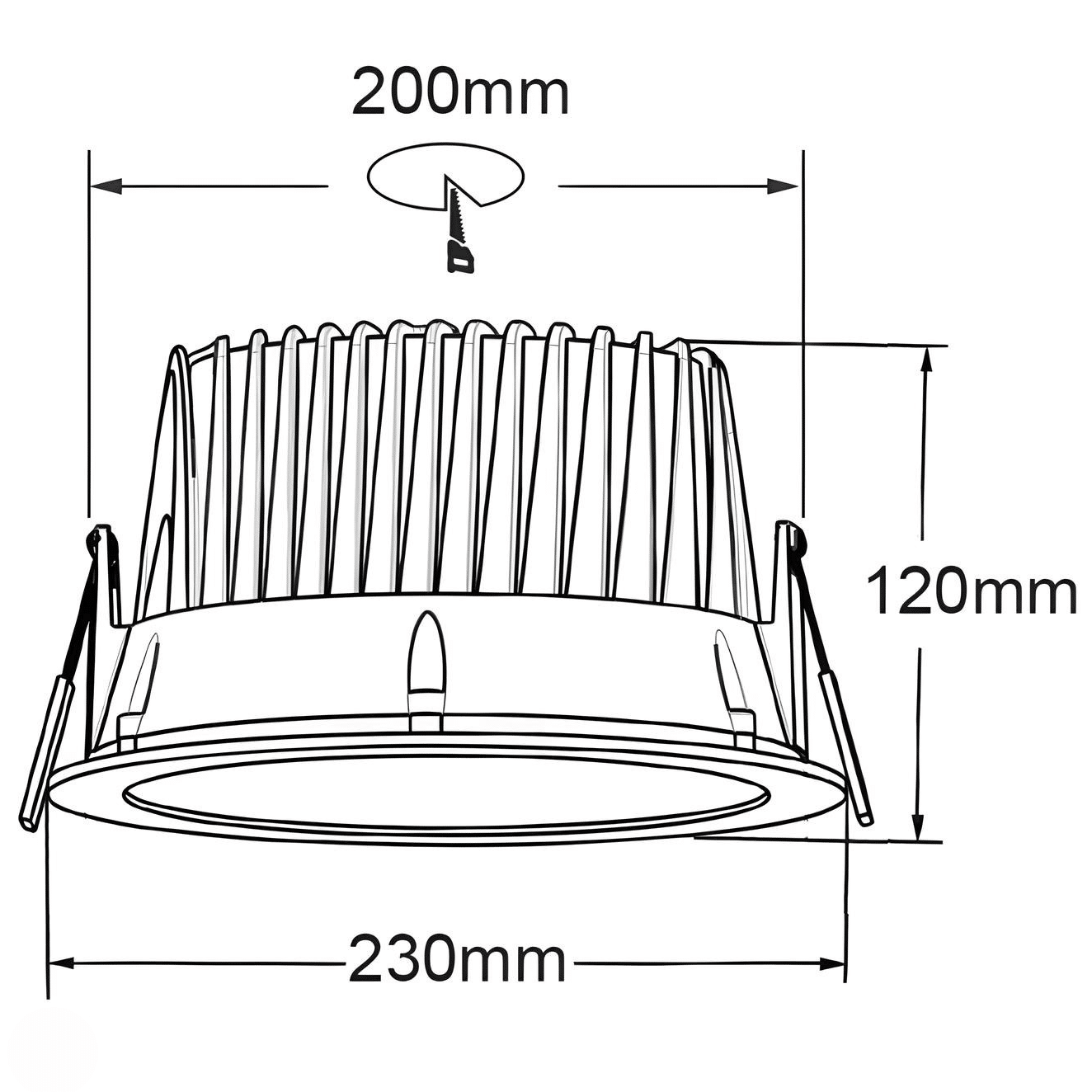

AES-20-A15-230 40W 80lm/W-90lm/W 230mmØ x 120mmH 200mmØ 1.00kg 70°
