Palmdale Series

PROJECTOR LIGHT

Overview

  • LED Type: CREE SMD
  • AC240V Driver: DONE
  • DC24V Driver: MEANWELL
  • Vertical Rotation: 90°
  • Horizontal Rotation: 360°
  • Full 5-year warranty
  • IP Rating: IP66
  • IK Rating: IK08

Customisations

  • Dimming: Non-Dimmable, Triac Dimmable, 0-10V Dimmable or DALI Dimmable
  • Beam Angles: 5°, 8°, 10°, 12°, 20°, 24°, 36°, 60°, 10° x 30°
  • CCT: 2200K, 2700K, 3000K, 3500K, 4000K, 5000K, 5700K, 6500K
  • Trim Colour: Black, White, Grey or Custom Colour

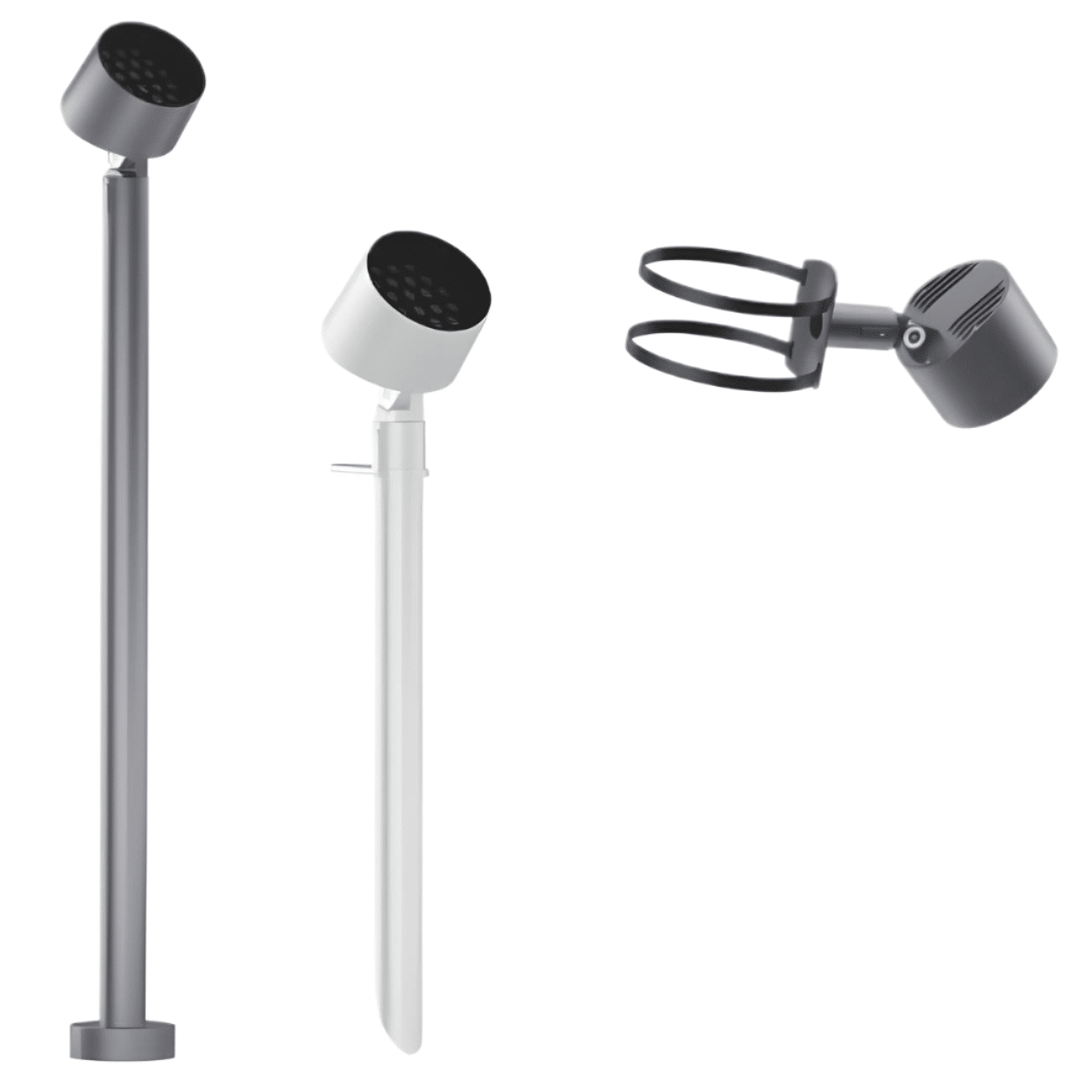

  • Mounting Options: Surface Mounted, Tree Mounted, 300/500/800/1000/1200mm Pole Mounted, ABS Spike Mounted (Available for AES-12-R1200615 and AES-12-R1501236), Aluminium Spike Mounted, Aluminium Spike + 300/500/800/1000/1200mm Pole Mounted (1 Prong or 3 Prong Spike, Light Size Dependant)

Product Details





MODEL NO WATTAGE EFFICACY (Lumens/Watt) SIZE BEAM ANGLE

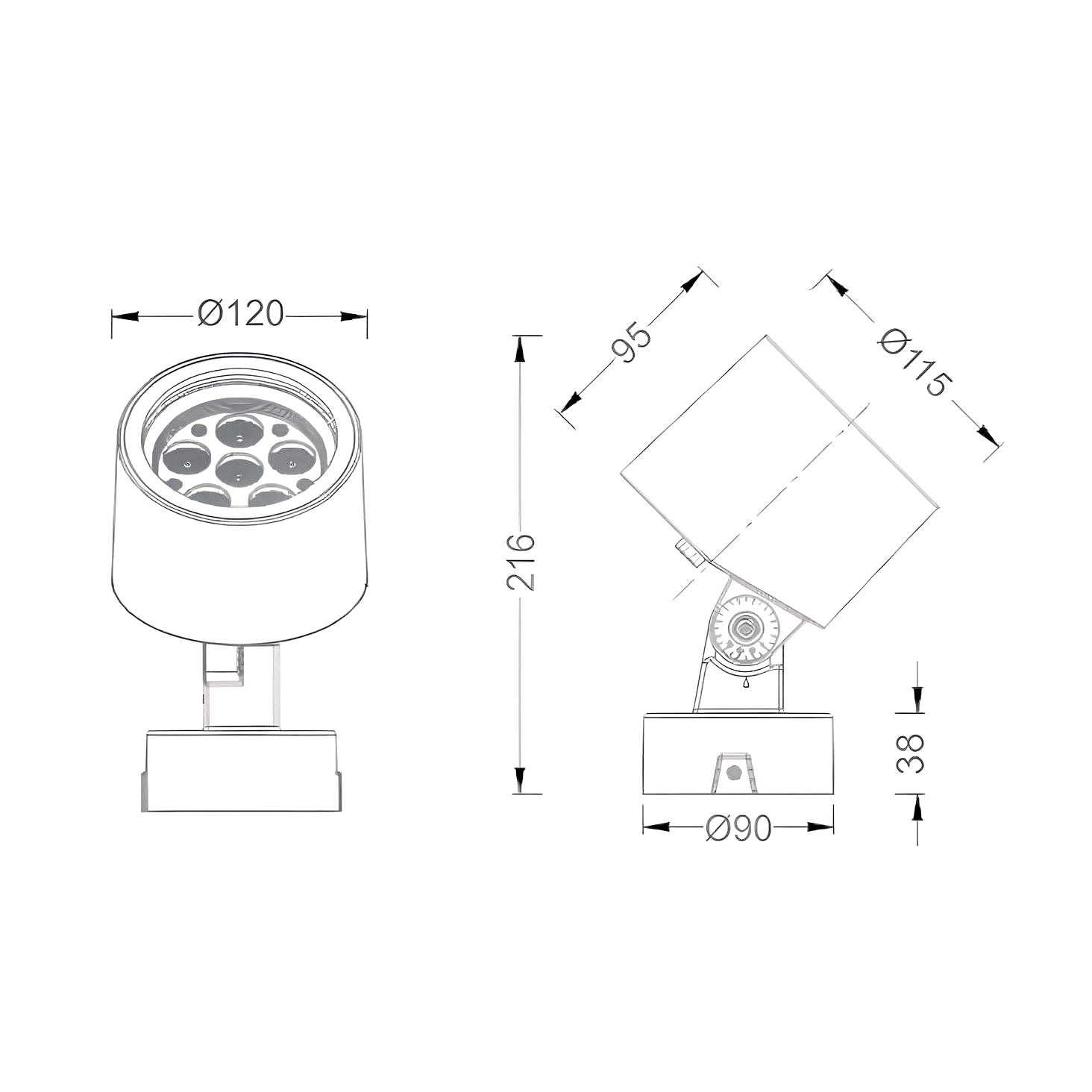

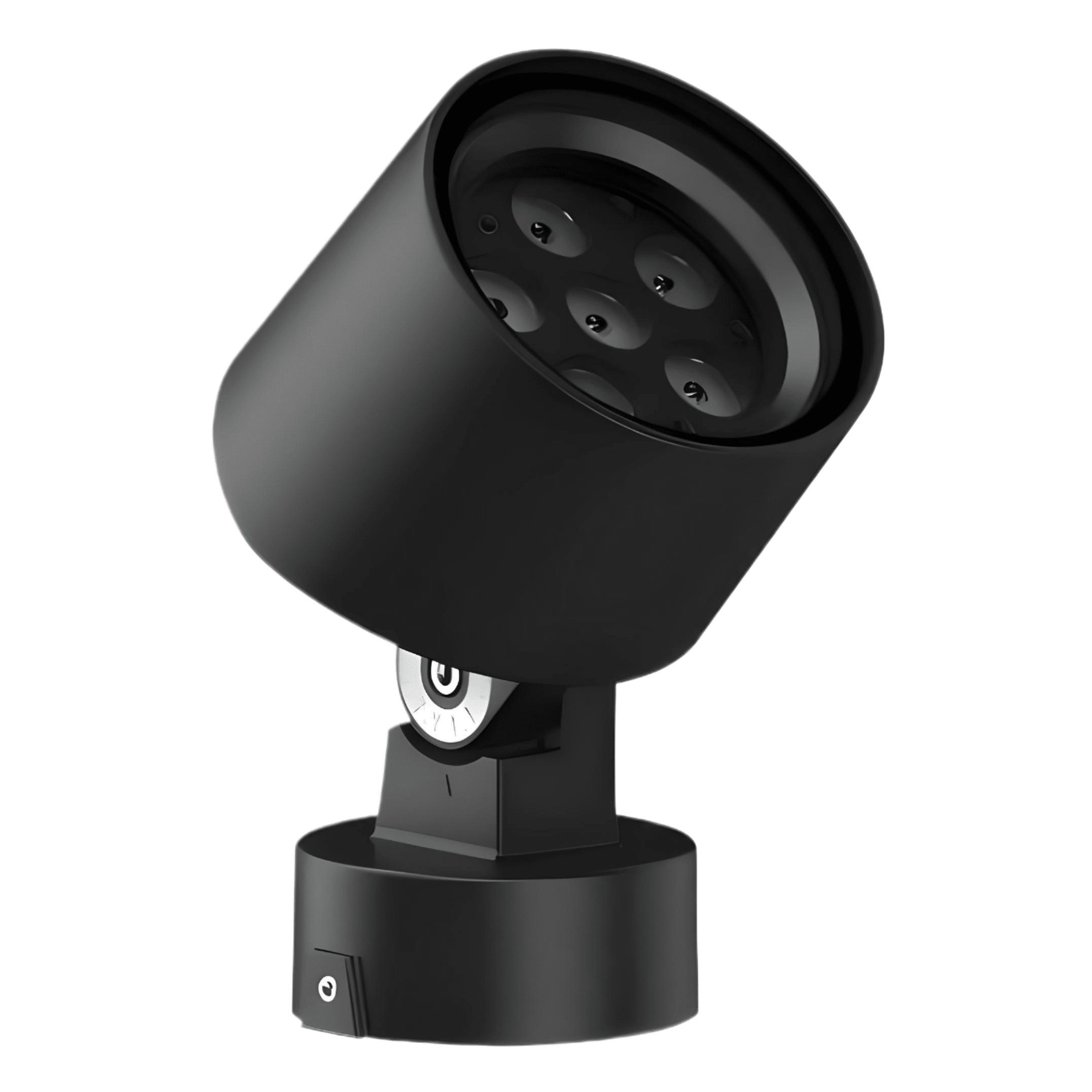

AES-12-R1200615 15W, 18W, 20W 24W 80lm/W 120mmØ x 216mmH 5°, 8°, 10°, 12°, 20°, 24°, 36°, 60°, 10° x 30°

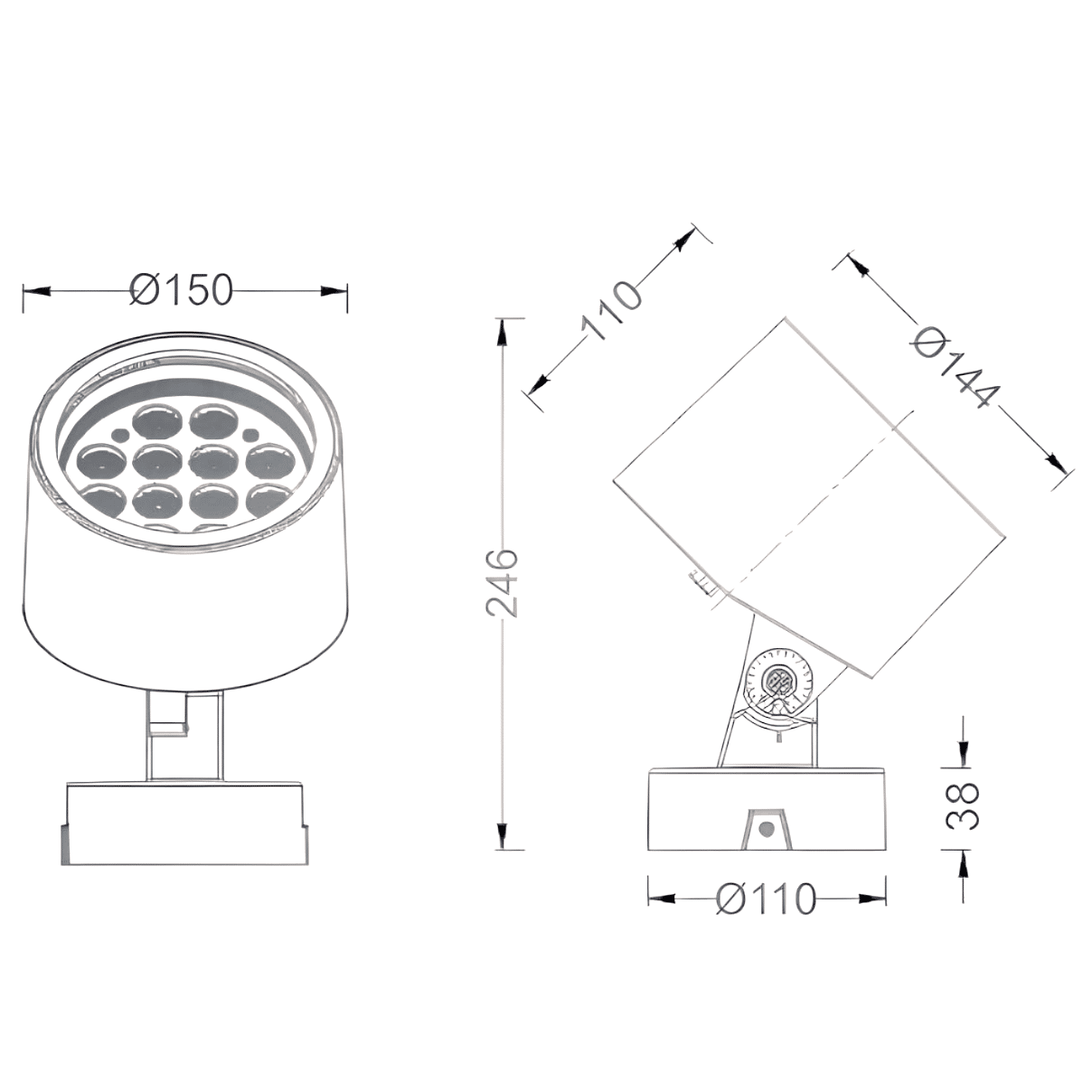

AES-12-R1501236 36W, 42W, 48W 80lm/W 150mmØ x 246mmH 5°, 8°, 10°, 12°, 20°, 24°, 36°, 60°, 10° x 30°

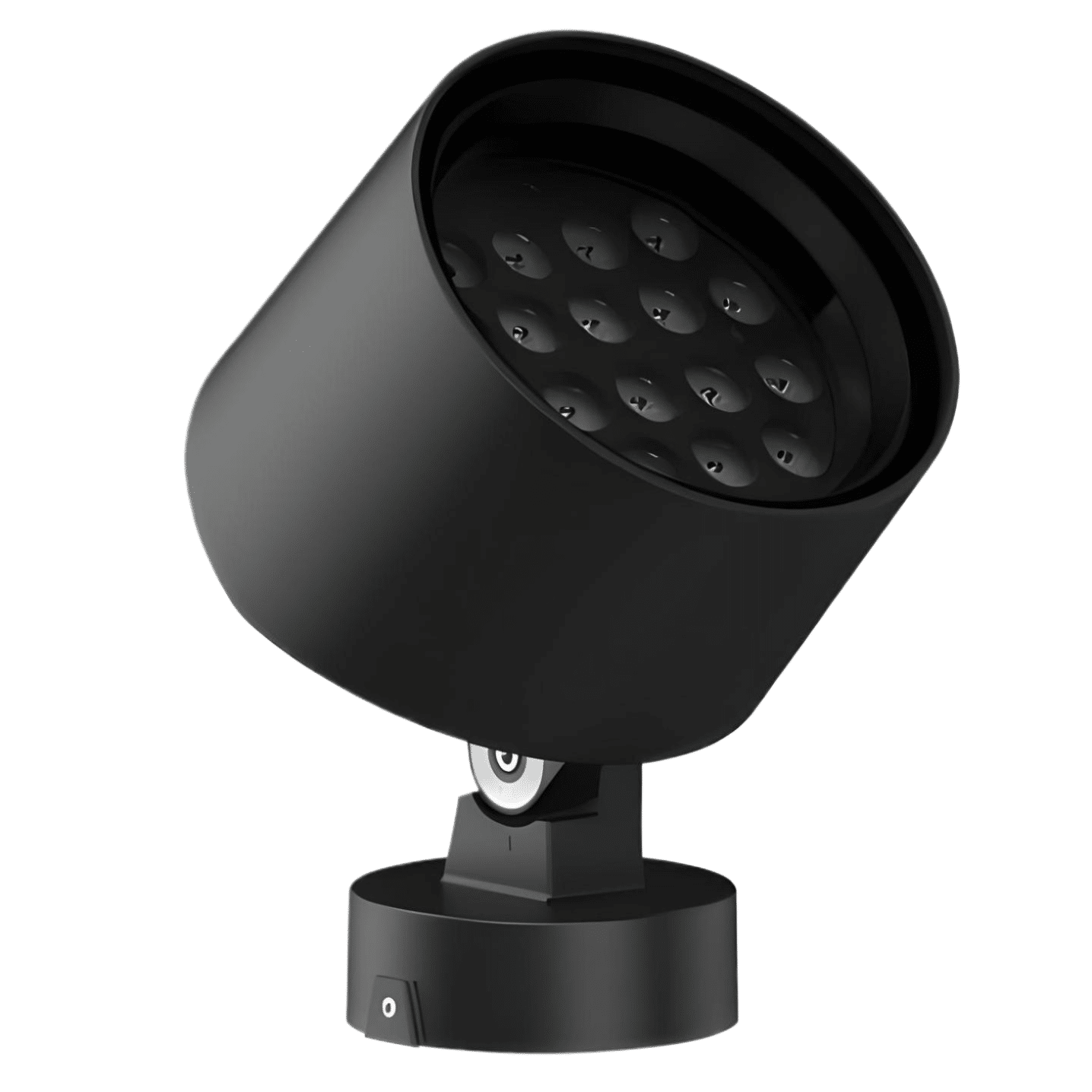

AES-12-R1801842 42W, 48W, 54W 80lm/W 180mmØ x 280mmH 5°, 8°, 10°, 12°, 20°, 24°, 36°, 60°, 10° x 30°

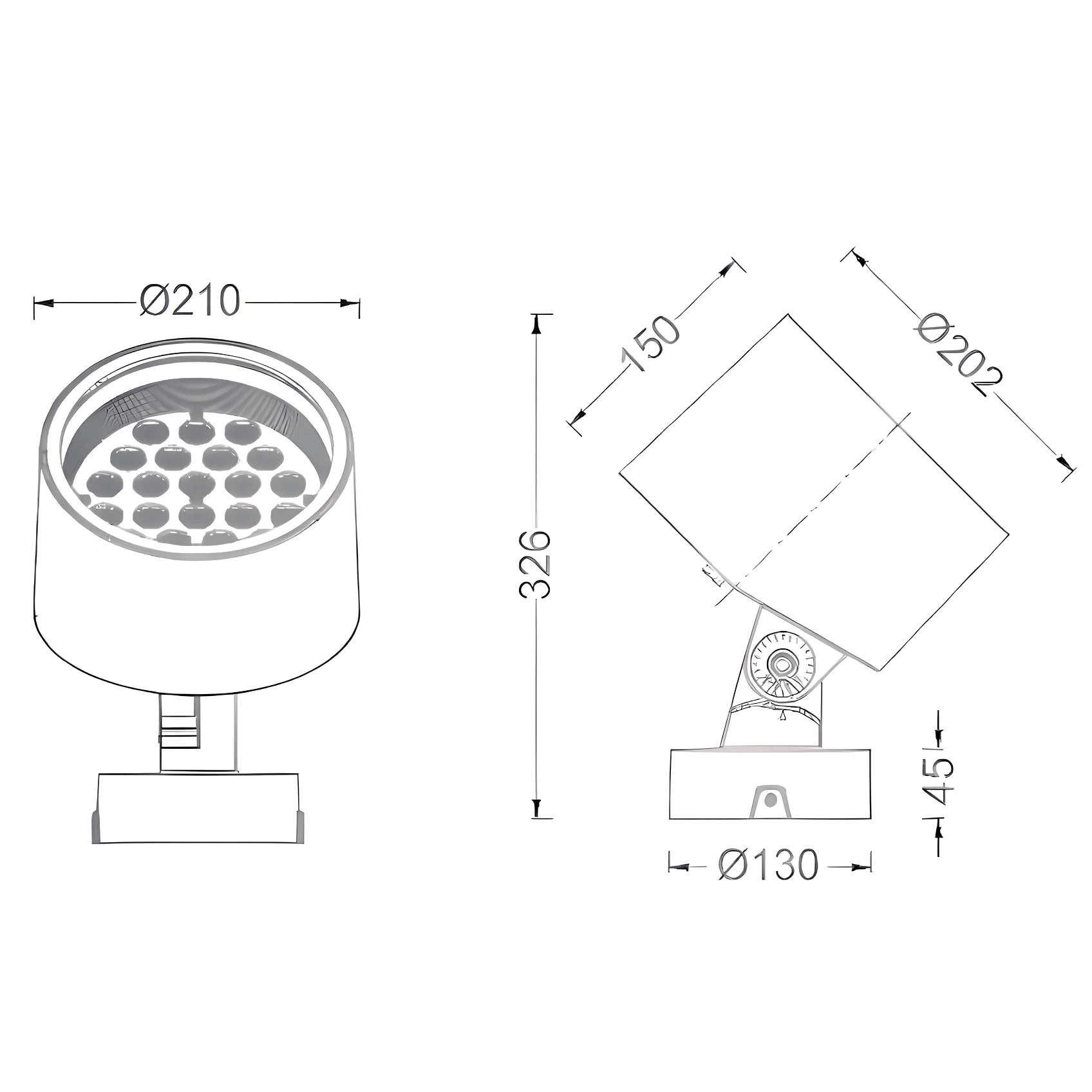

AES-12-R2102466 66W, 72W 80lm/W 210mmØ x 326mmH 5°, 8°, 10°, 12°, 20°, 24°, 36°, 60°, 10° x 30°
