Ottoway Series
CAR PARK & STREET LIGHTS
Overview
- LED Type: Lumileds 5050
- Driver: Invertronics EUM
- Full 5-year warranty
- IP Rating: IP65
- IK Rating: IK09
- Corrosion Resistance: C5
Customisations
- Dimming: Non-Dimmable, 1-10V Dimmable or DALI Dimmable

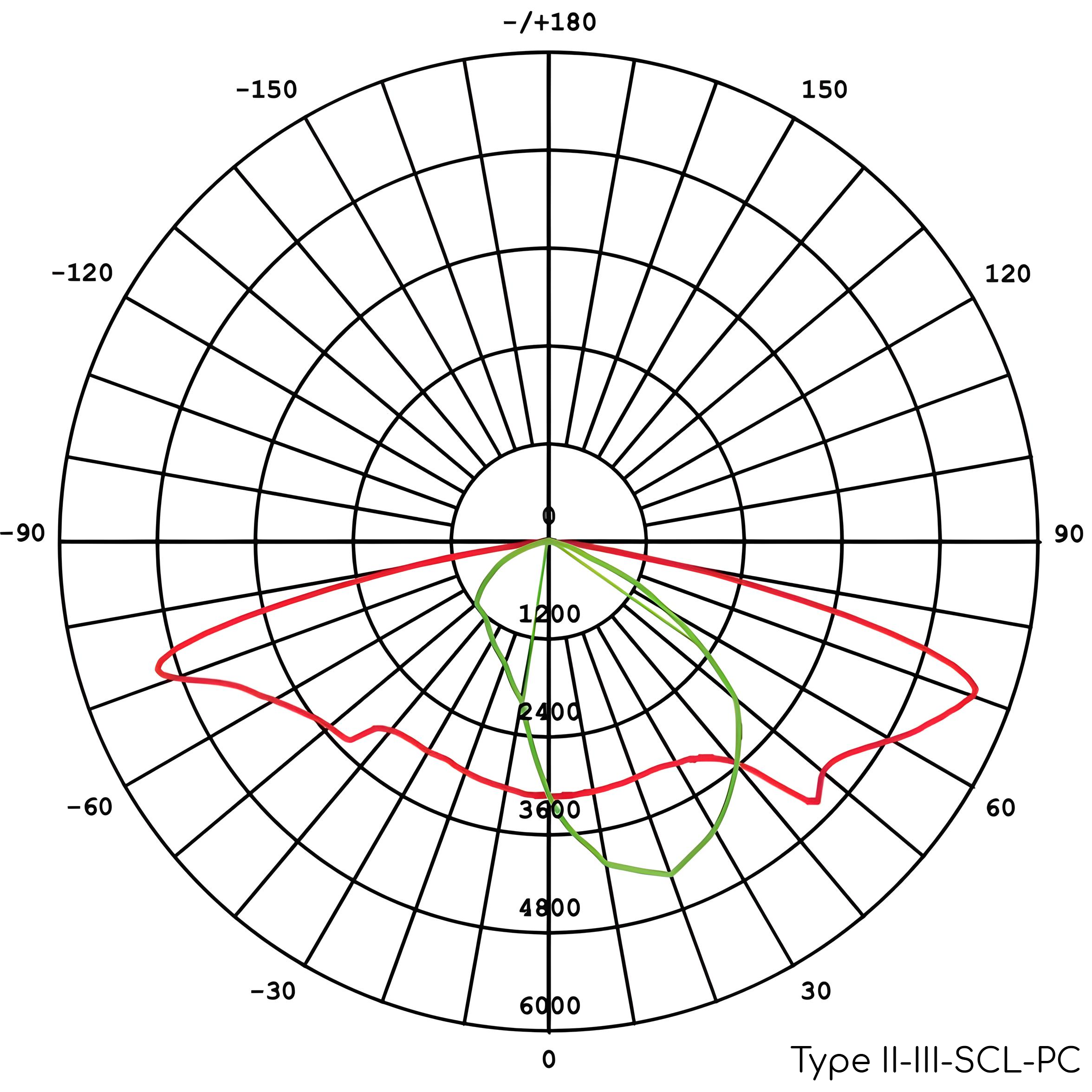

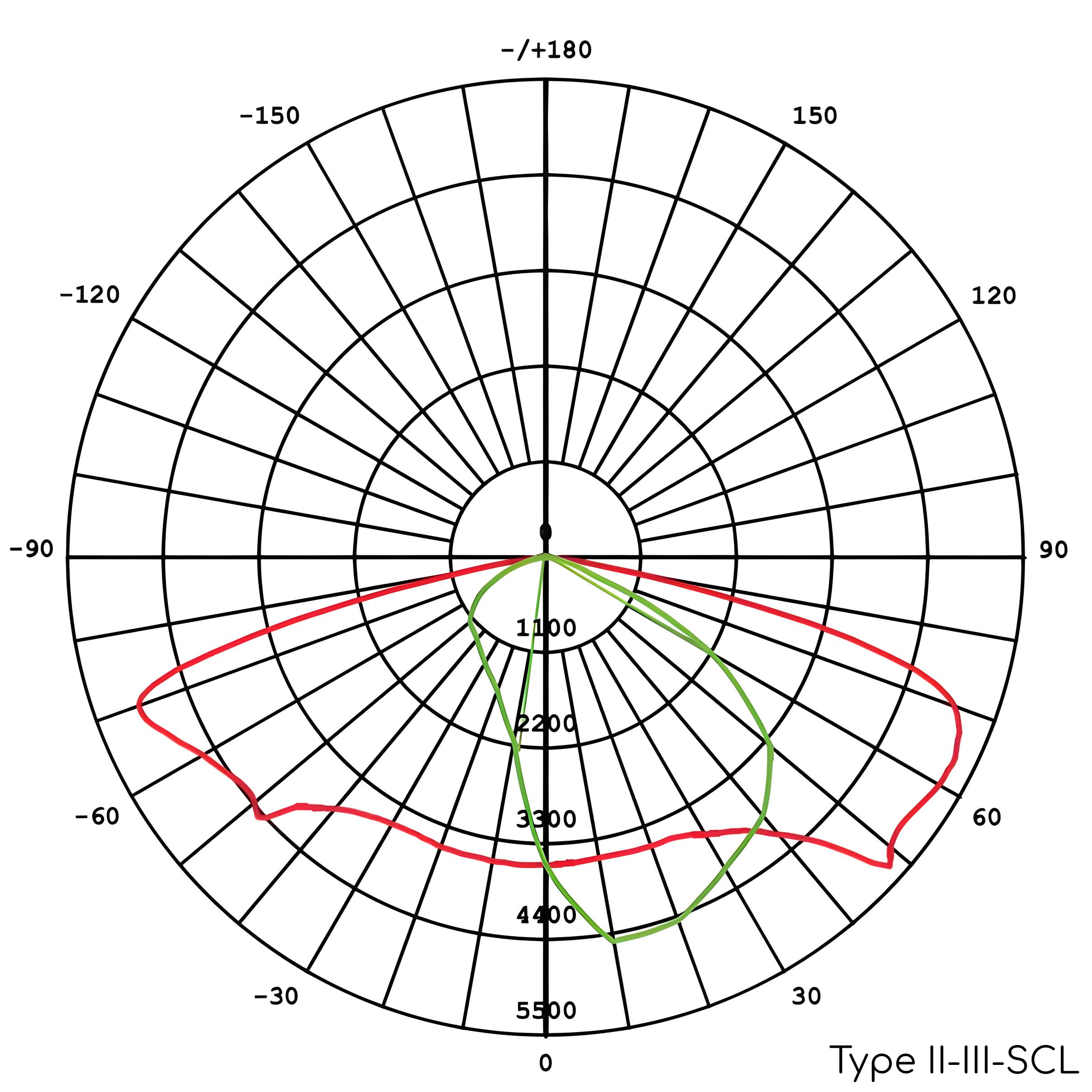

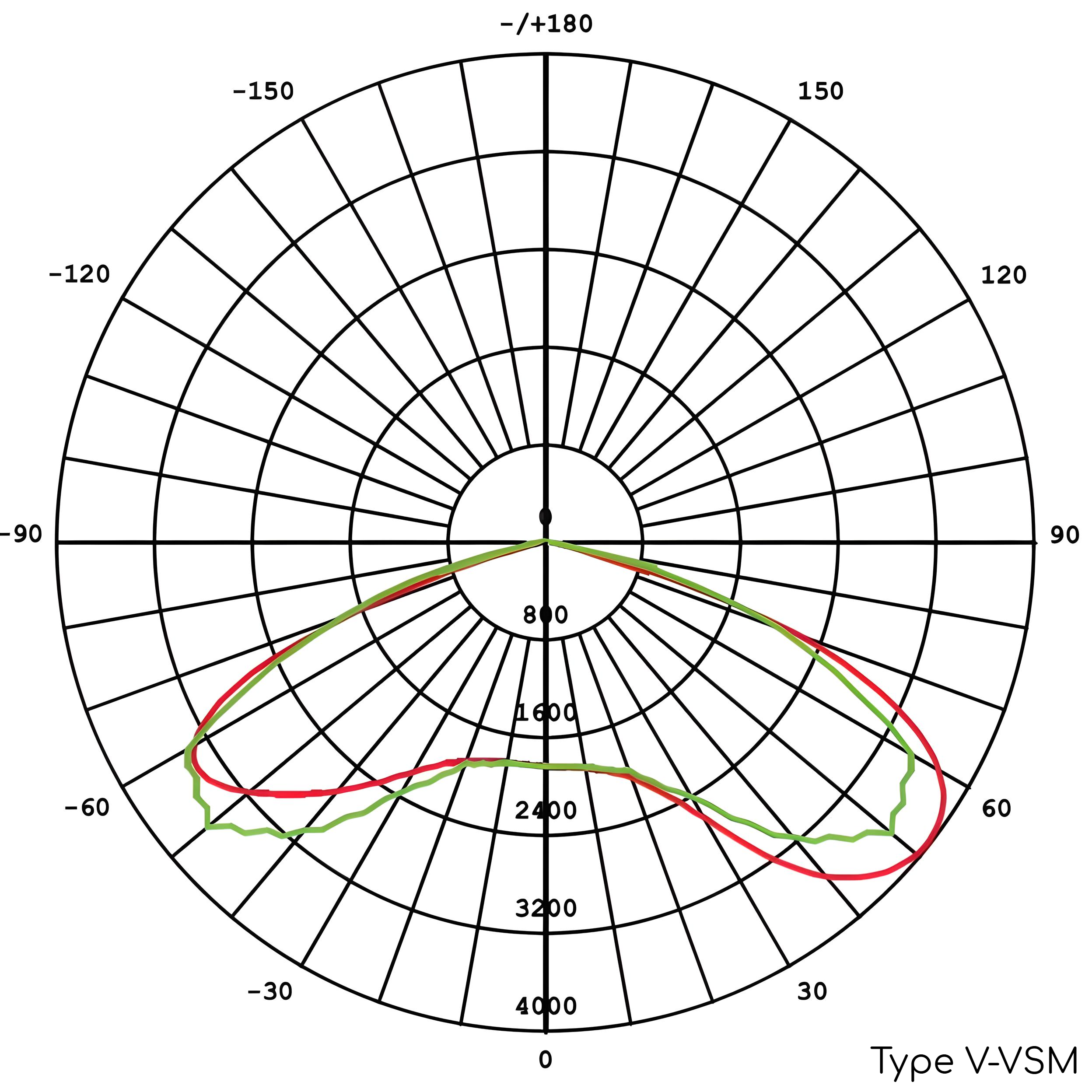

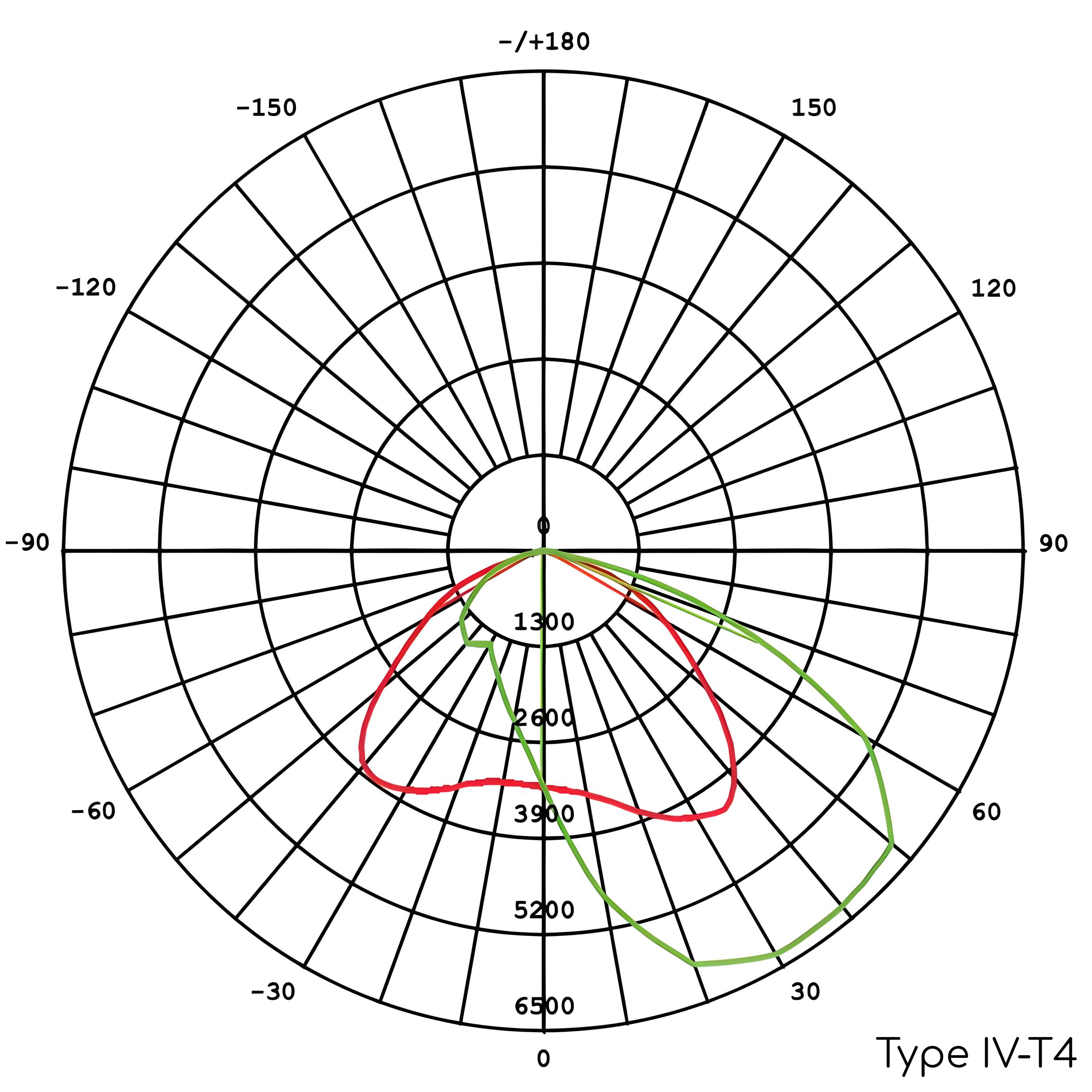

- Beam Angles: Type IV-T4, Type V-VSM, Type II-III-T4, Type II-III-SCL, Type II-III-SCL-PC
- SDCM: <5, <3
- CCT: 2700K, 3000K, 3500K, 4000K, 5000K

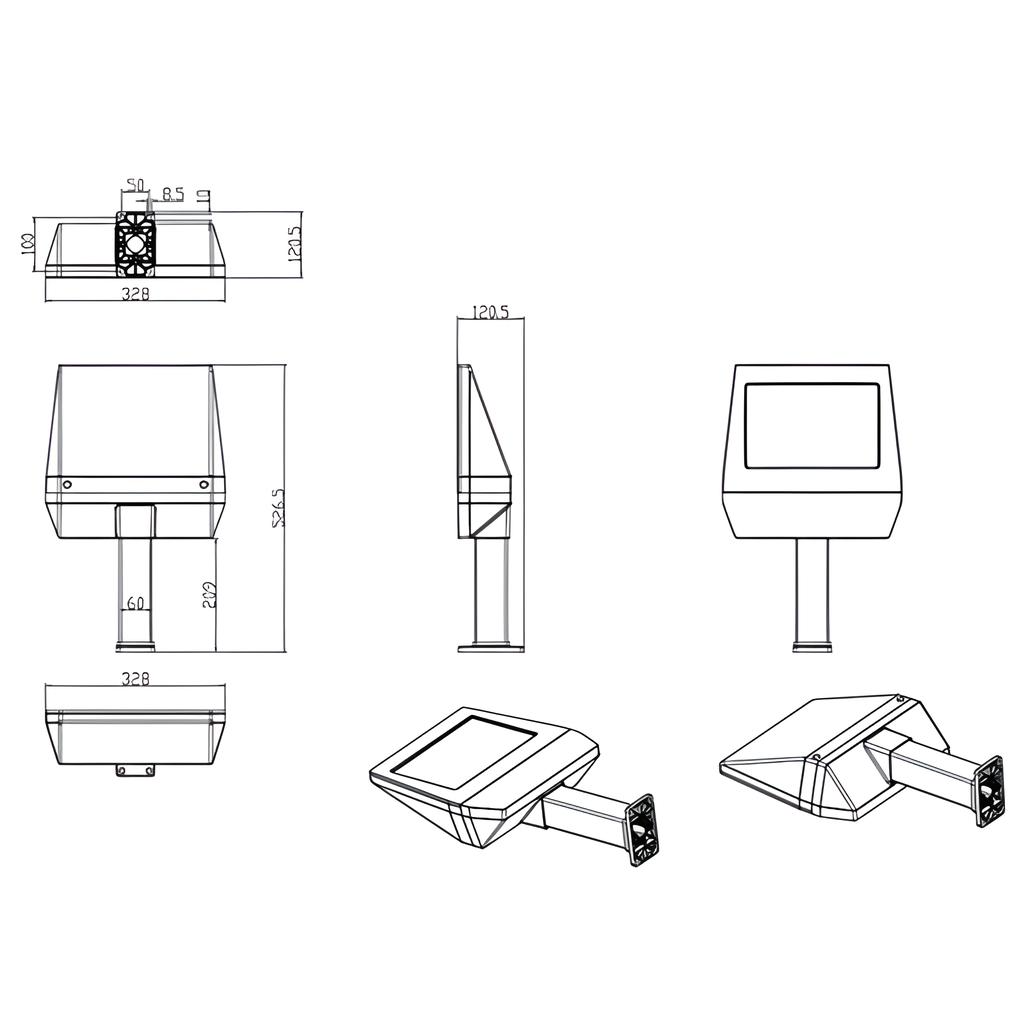

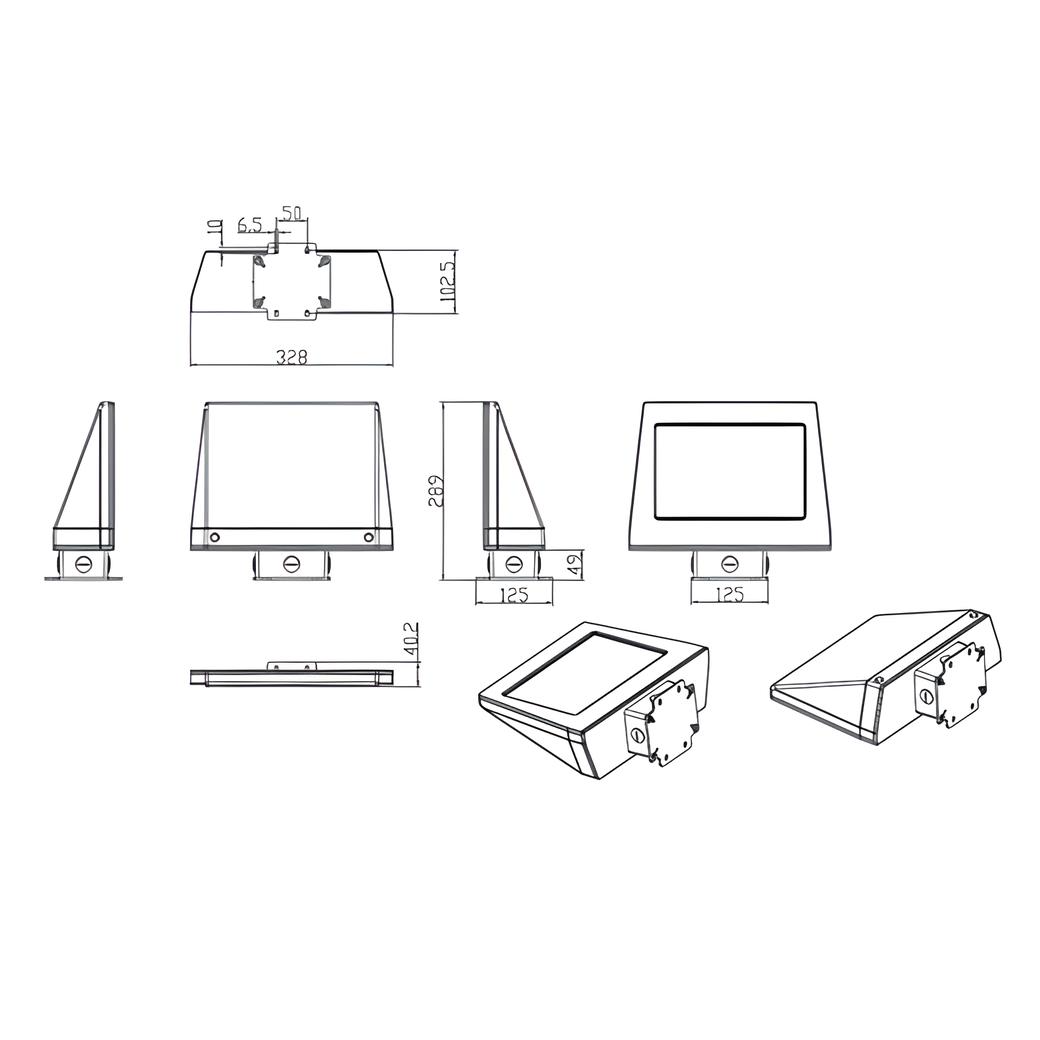

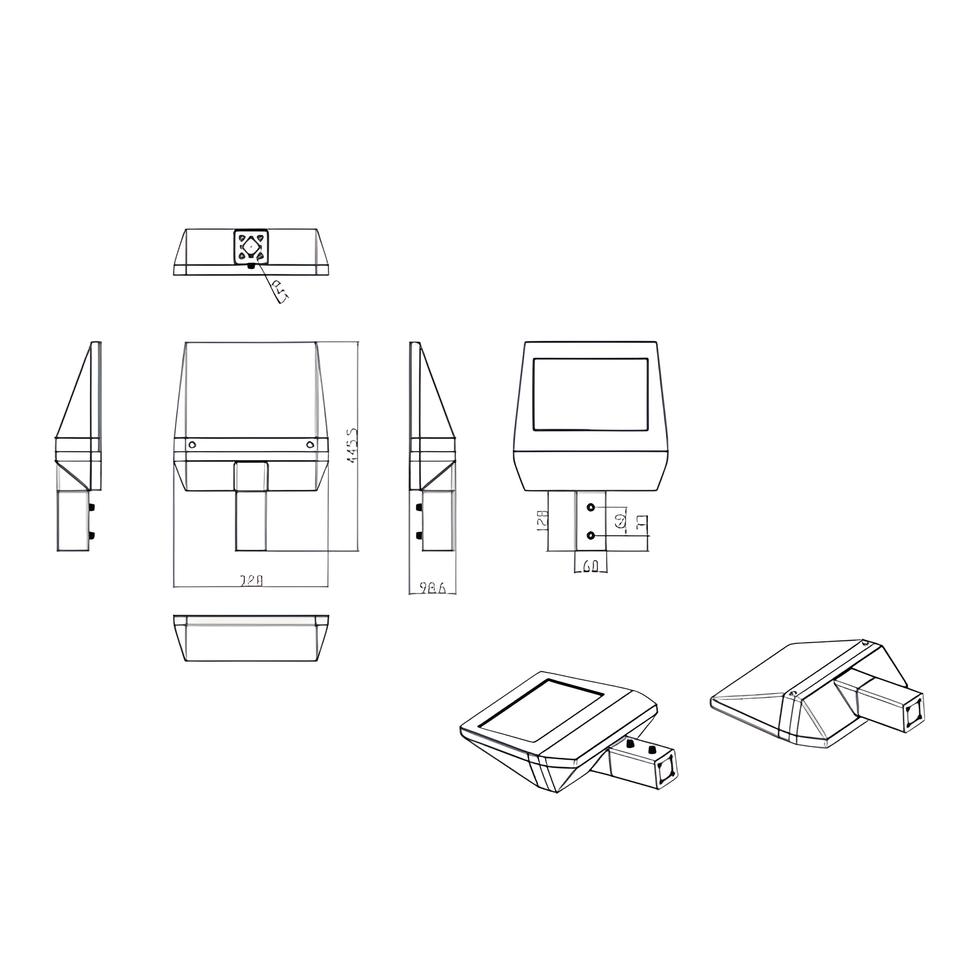

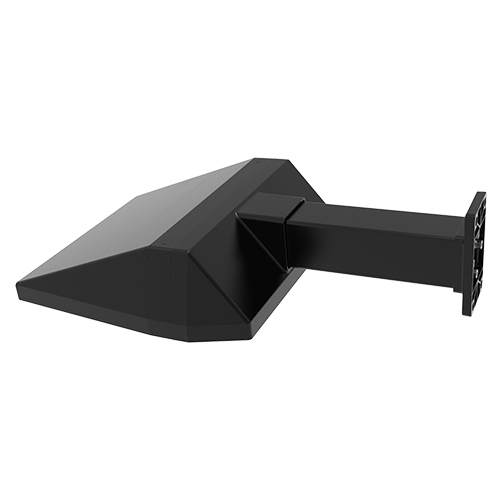

- Accessories: Junction Box for Wall Mounting, 40mm⌀ round pipe bracket for pole mounting, 60mm⌀ square tube bracket for wall mounting
Product Details
| MODEL NO | WATTAGE | EFFICACY (Lumens/Watt) | SIZE | WEIGHT | BEAM ANGLE | ||||||||||||||||||||||||||||||||||||||||||||
| AES-37-AL140-30W | 30W | 140lm/W | 328mmL x 240mmW x 99mmH | 3.8kg | Type IV-T4, Type V-VSM, Type II-III-T4, Type II-III-SCL, Type II-III-SCL-PC | ||||||||||||||||||||||||||||||||||||||||||||
| AES-37-AL140-50W | 50W | 140lm/W | 328mmL x 240mmW x 99mmH | 3.8kg | Type IV-T4, Type V-VSM, Type II-III-T4, Type II-III-SCL, Type II-III-SCL-PC | ||||||||||||||||||||||||||||||||||||||||||||
| AES-37-AL140-70W | 70W | 140lm/W | 328mmL x 240mmW x 99mmH | 3.8kg | Type IV-T4, Type V-VSM, Type II-III-T4, Type II-III-SCL, Type II-III-SCL-PC | ||||||||||||||||||||||||||||||||||||||||||||
| AES-37-AL140-100W | 100W | 140lm/W | 328mmL x 240mmW x 99mmH | 3.8kg | Type IV-T4, Type V-VSM, Type II-III-T4, Type II-III-SCL, Type II-III-SCL-PC | ||||||||||||||||||||||||||||||||||||||||||||
