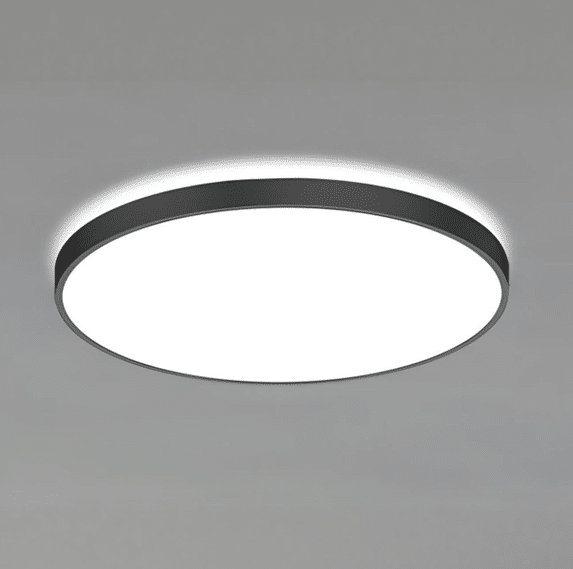

Oakdale Series – Up/Down

CEILING LIGHT

Overview

  • LED Type: SMD 2835
  • Driver: Built In
  • Full 5-year warranty
  • IP Rating: IP40

Customisations

    • CCT: 3000K, 4000K, 5000K, 5700K or 3CCT: 3000K + 4000K + 5700K
    • Trim Colour: White, Black, Wood Grain or Custom Colour
    • Beam Angle: 85° (Microprismatic), 120° (Polystyrene)
    • Accessories: Microwave Sensor, Steel Wire Suspension, Pendant Rod Suspension, Wire Harness Suspension (all suspensions add 0.9kg)
    • Recessed, Surface Mounted or Pendant mounting

Product Details

MODEL NO WATTAGE EFFICACY SIZE CUTOUT (recessed only) WEIGHT BEAM ANGLE
AES-27-AL99C-400-40W-UD 40W 100lm/W 400mmØ x 86mmH 220-250mmØ 3.07kg 85°, 120°
AES-27-AL99C-600-60W-UD 60W 100lm/W 600mmØ x 86mmH 385-415mmØ 6.79kg 85°, 120°
AES-27-AL99C-800-75W-UD 75W 100lm/W 800mmØ x 86mmH 385-415mmØ 9.85kg 85°, 120°
AES-27-AL99C-1000-100W-UD 100W 100lm/W 1000mmØ x 86mmH 385-415mmØ 13.82kg 85°, 120°
