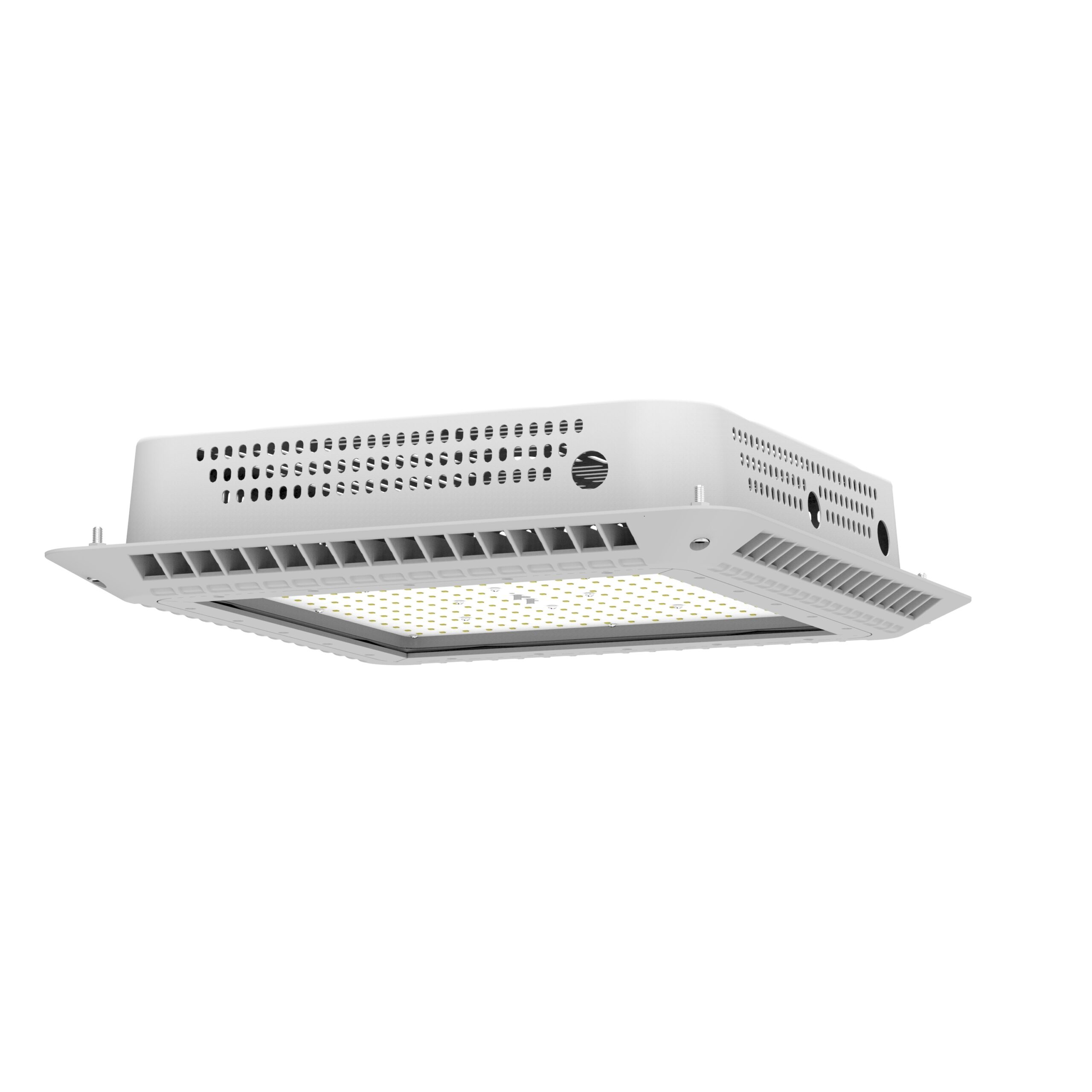

Newport G3

CANOPY LIGHTS

Overview

  • Die-Cast Aluminium Housing
  • Injection Molded Polymer lenses
  • IP65 IK08
  • LED Type: LUMILEDS 3030
  • Full 5-year warranty
  • 80,000 hours lamp life
  • Meanwell Driver

Customisations

  • DALI Dimmable or 0-10V Dimmable
  • Microwave sensor available on the surface mount option
  • Bespoke photo-optic lens
Data Sheet
Add to Enquiry
MODEL NO WATTAGE EFFICACY (Lumens/Watt) SIZE
AES-RK-GS60W-01-G3-R 60W 150 430mmW x 430mmL x 112mmH
AES-RK-GS80W-01-G3-R 80W 150 430mmW x 430mmL x 112mmH
AES-RK-GS100W-01-G3-R 100W 150 430mmW x 430mmL x 112mmH
AES-RK-GS120W-01-G3-R 120W 150 430mmW x 430mmL x 112mmH
AES-RK-GS150W-01-G3-R 150W 150 430mmW x 430mmL x 112mmH
AES-RK-GS180W-01-G3-R 180W 150 430mmW x 430mmL x 112mmH
AES-RK-GS200W-01-G3-R 200W 150 430mmW x 430mmL x 112mmH
AES-RK-GS60W-01-G3-SM 60W 150 430mmW x 430mmL x 97mmH
AES-RK-GS80W-01-G3-SM 80W 150 430mmW x 430mmL x 97mmH
AES-RK-GS100W-01-G3-SM 100W 150 430mmW x 430mmL x 97mmH
AES-RK-GS120W-01-G3-SM 120W 150 430mmW x 430mmL x 97mmH
AES-RK-GS150W-01-G3-SM 150W 150 430mmW x 430mmL x 97mmH
AES-RK-GS180W-01-G3-SM 180W 150 430mmW x 430mmL x 97mmH
AES-RK-GS200W-01-G3-SM 200W 150 430mmW x 430mmL x 97mmH
AES-RK-GS60W-01-G3-P 60W 150 430mmW x 430mmL x 255mmH
AES-RK-GS80W-01-G3-P 80W 150 430mmW x 430mmL x 255mmH
AES-RK-GS100W-01-G3-P 100W 150 430mmW x 430mmL x 255mmH
AES-RK-GS120W-01-G3-P 120W 150 430mmW x 430mmL x 255mmH
AES-RK-GS150W-01-G3-P 150W 150 430mmW x 430mmL x 255mmH
AES-RK-GS180W-01-G3-P 180W 150 430mmW x 430mmL x 255mmH
AES-RK-GS200W-01-G3-P 200W 150 430mmW x 430mmL x 255mmH
