Fairhaven Series

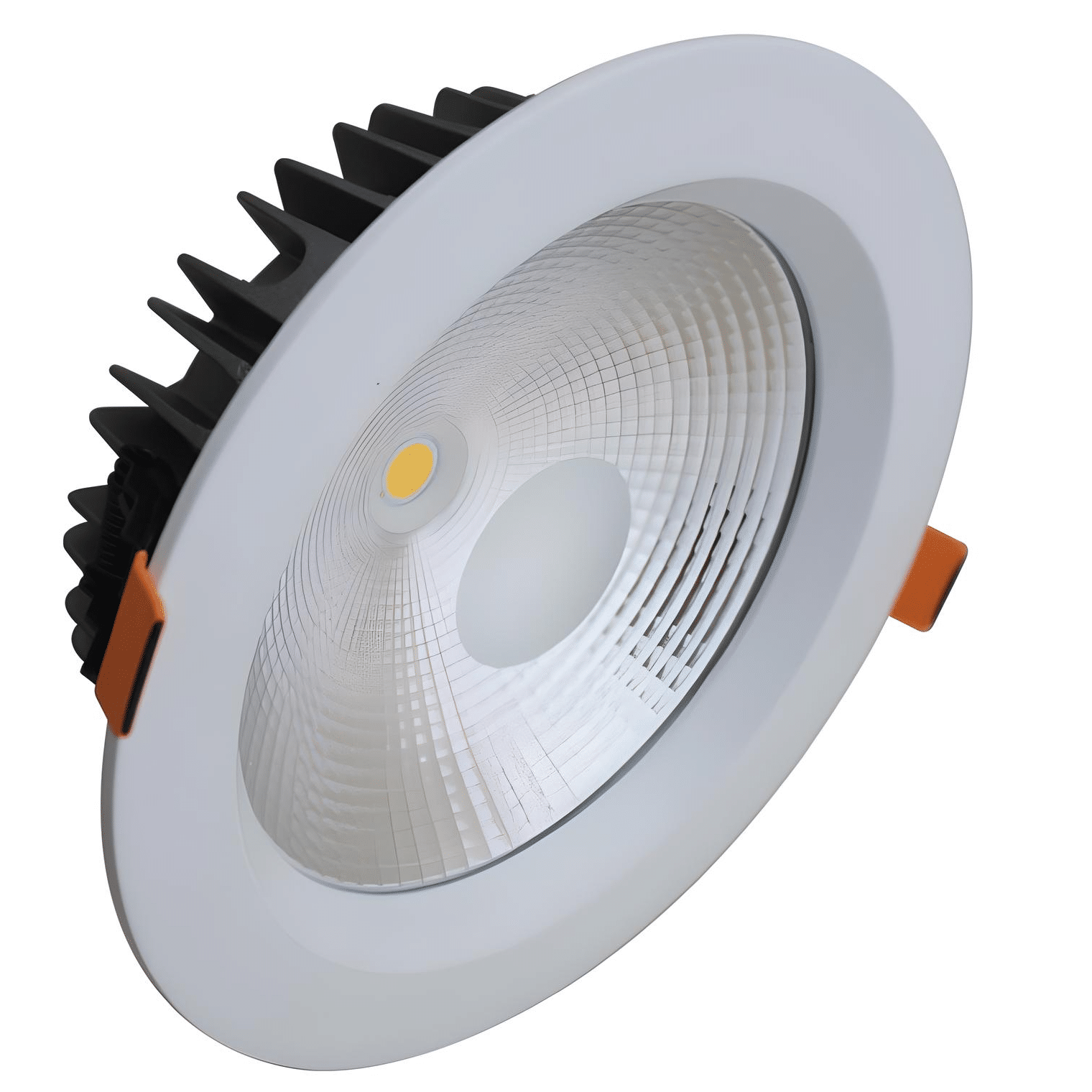

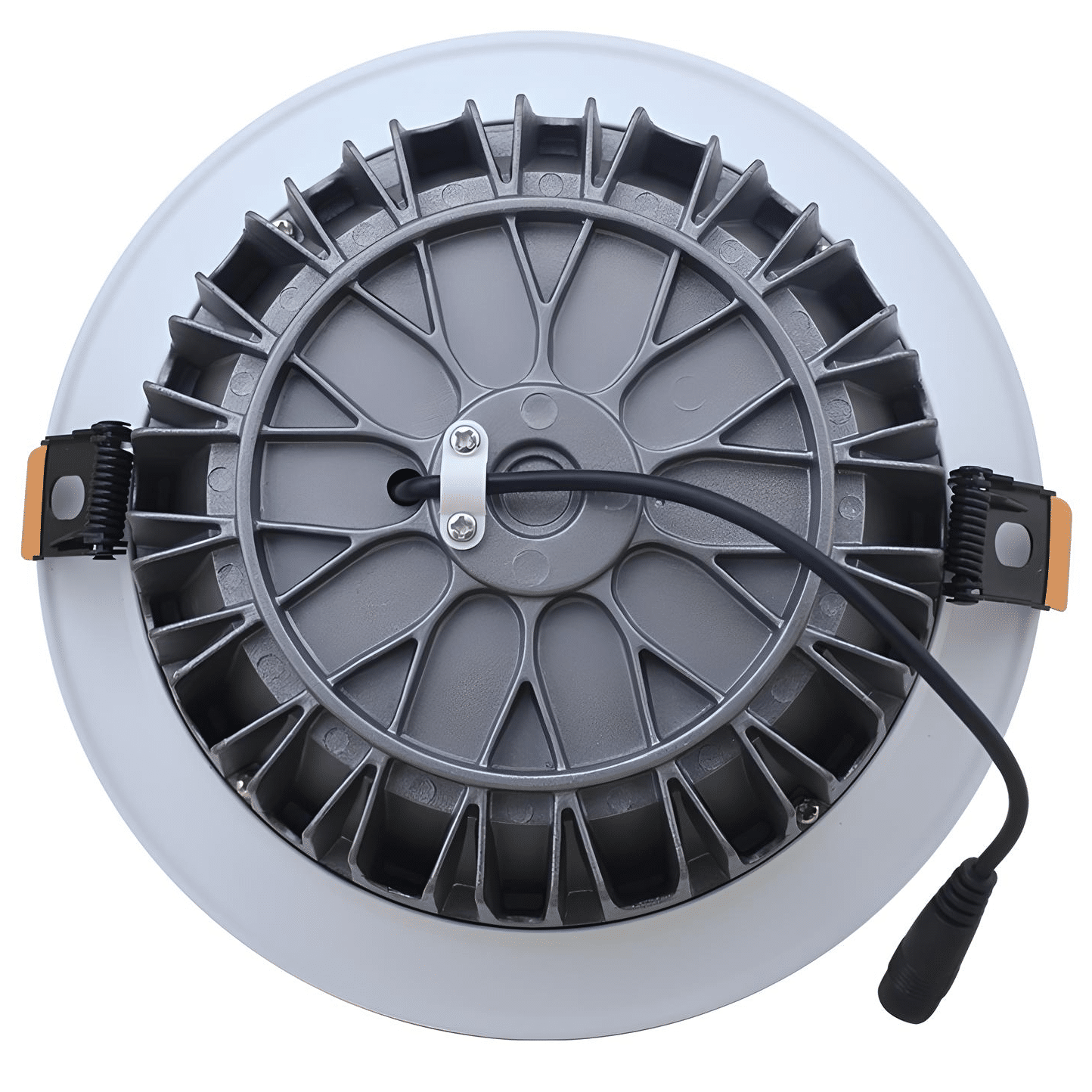

RECESSED DOWNLIGHT

Overview

  • Faceted Reflector
  • LED Type: Citizen COB
  • Non-Dimmable Driver: Boke Flicker-Free
  • Triac Dimmable Driver: AIDimming
  • 0-10V Dimmable Driver: AIDimming
  • DALI Dimmable Driver: Boke Flicker-Free
  • Full 5-year warranty
  • IP Rating: IP20

Customisations

  • Dimming: Non-Dimmable, Triac Dimmable, 0-10V Dimmable or DALI Dimmable
  • Beam Angles: 90°
  • CCT: 2700K, 3000K, 3500K, 4000K, 5000K
  • Trim Colour: White, Black or Custom Colour

Product Details



MODEL NO WATTAGE EFFICACY (Lumens/Watt) SIZE CUTOUT WEIGHT BEAM ANGLE
AES-20-C8-115 7W 90lm/W-100lm/W 115mmØ x 48mmH 100-105mmØ 0.44kg 90°

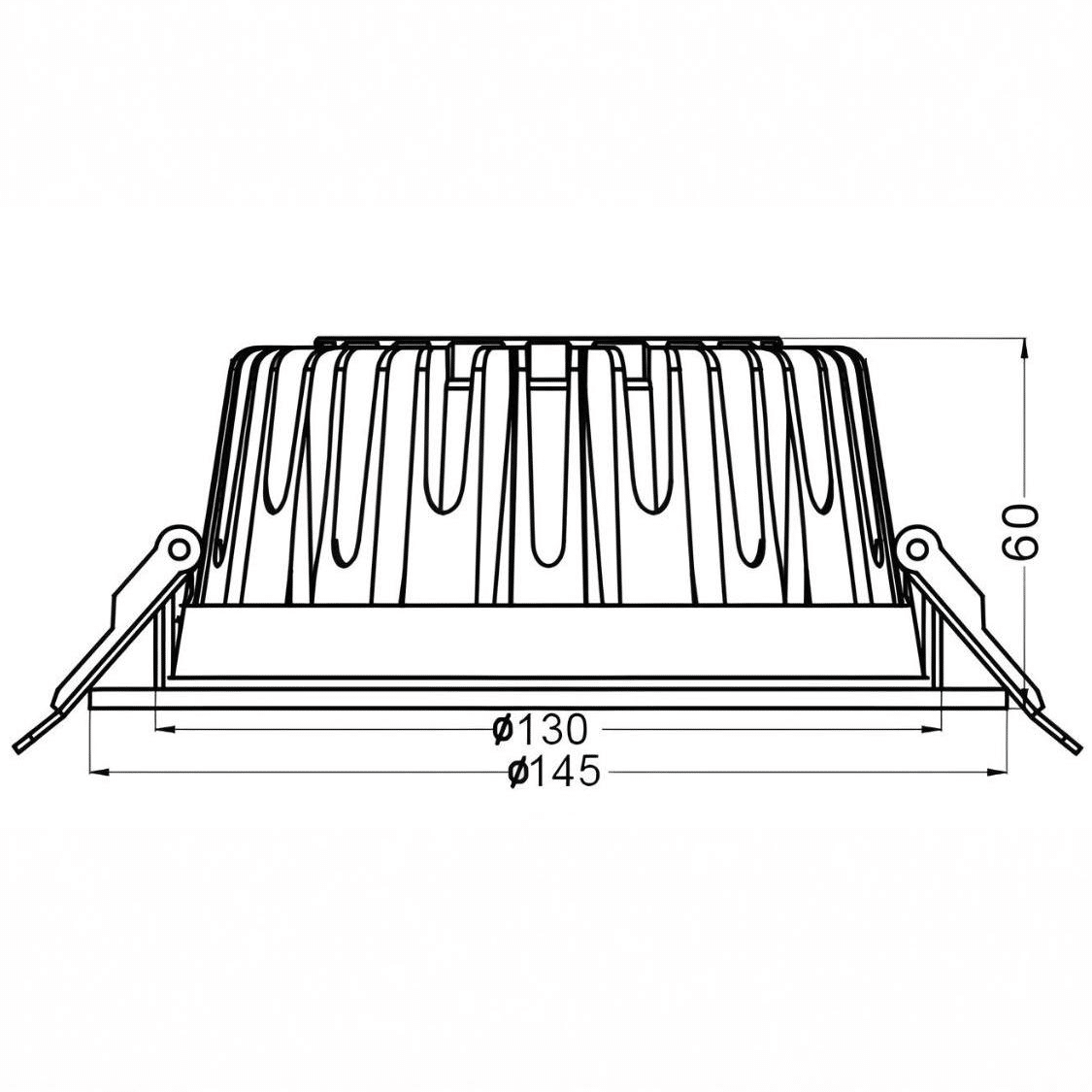

AES-20-C8-145 12W 90lm/W-100lm/W 145mmØ x 60mmH 130-135mmØ 0.65kg 90°

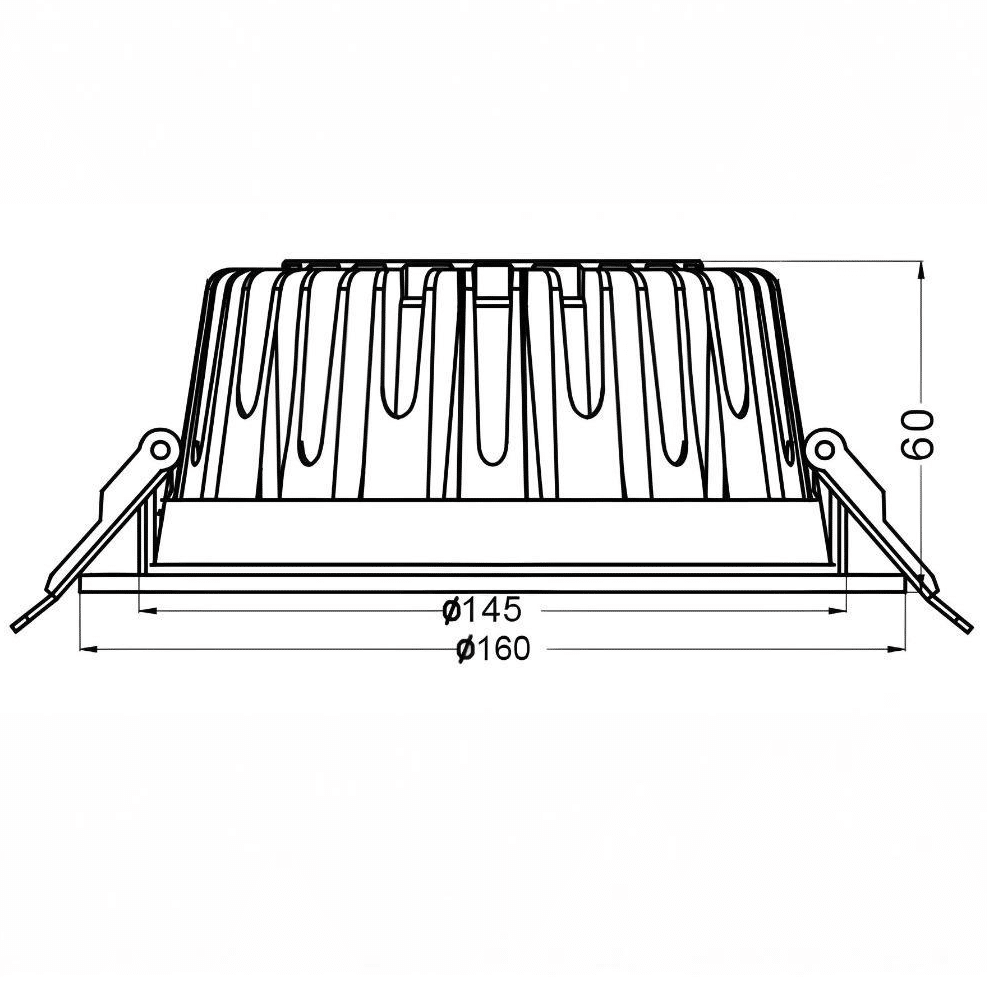

AES-20-C8-160 15W 90lm/W-100lm/W 160mmØ x 60mmH 145-150mmØ 0.67kg 90°

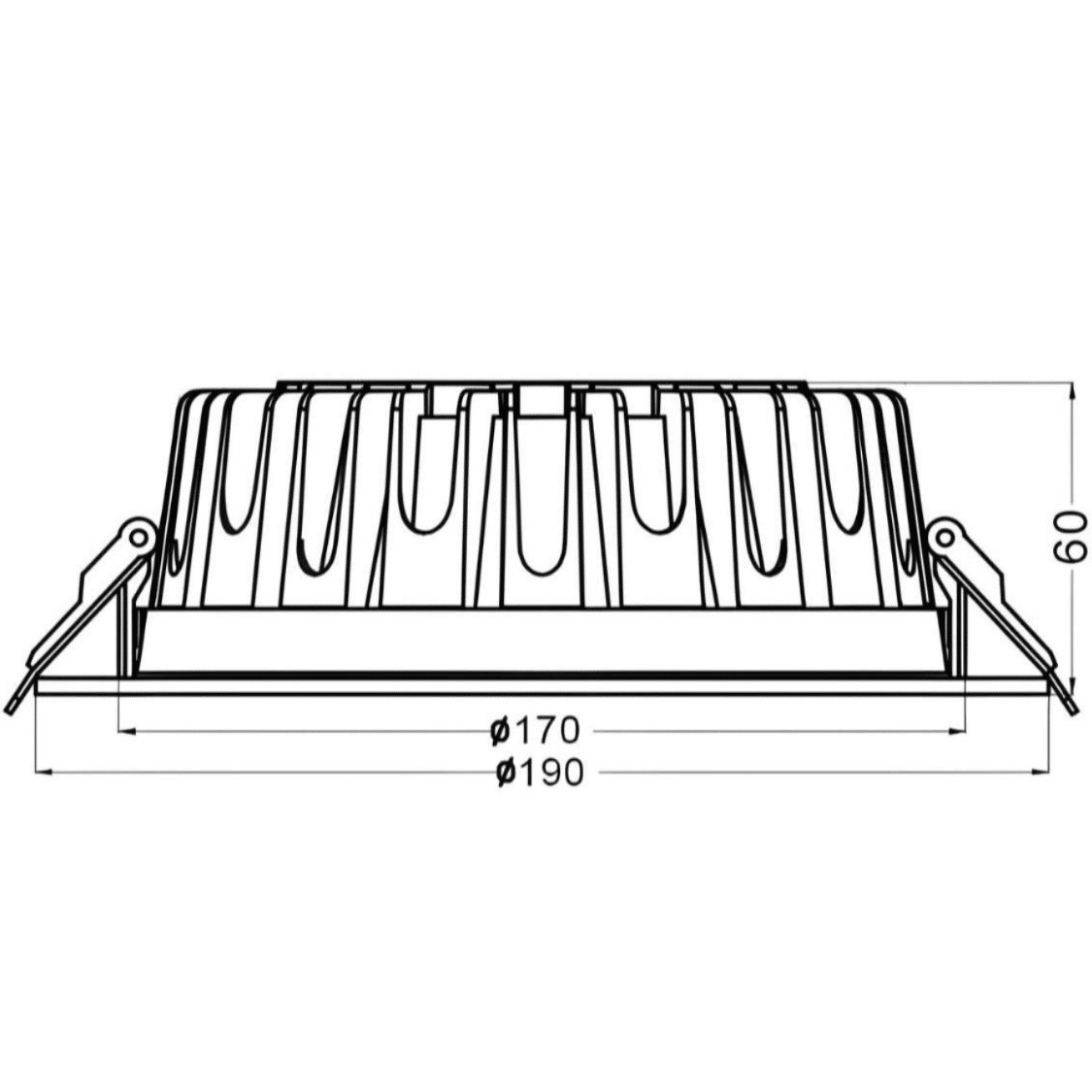

AES-20-C8-190 20W 90lm/W-100lm/W 190mmØ x 60mmH 170-180mmØ 0.83kg 90°

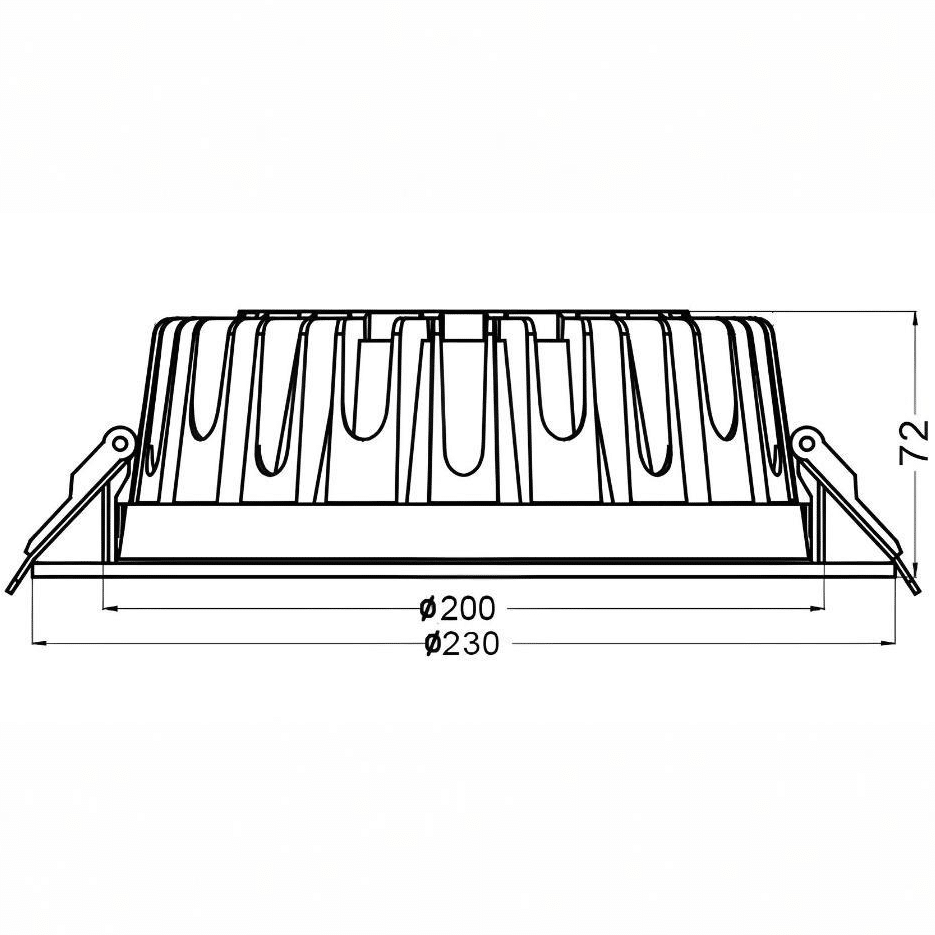

AES-20-C8-230 30W 90lm/W-100lm/W 230mmØ x 72mmH 200-215mmØ 1.03kg 90°
