Kambah Series

RECESSED DOWNLIGHT

Overview

  • LED Type: Philips 2835 SMD
  • Non-Dimmable Driver: Boke Flicker-Free
  • Triac Dimmable Driver: AIDimming
  • 0-10V Dimmable Driver: AIDimming
  • DALI Dimmable Driver: Boke Flicker-Free
  • Full 5-year warranty
  • IP Rating: IP20

Customisations

  • Dimming: Non-Dimmable, Triac Dimmable, 0-10V Dimmable or DALI Dimmable
  • CCT: 2700K, 3000K, 3500K, 4000K, 5000K
  • Internal Colour: White, Black, Matt Black, Shiny Silver, Shiny Black or Custom Colour

Product Details



MODEL NO WATTAGE EFFICACY (Lumens/Watt) SIZE CUTOUT WEIGHT BEAM ANGLE
AES-20-A1-60 5W 90-100lm/W 60mmØ x 35mmH 55mmØ 0.21kg 70°

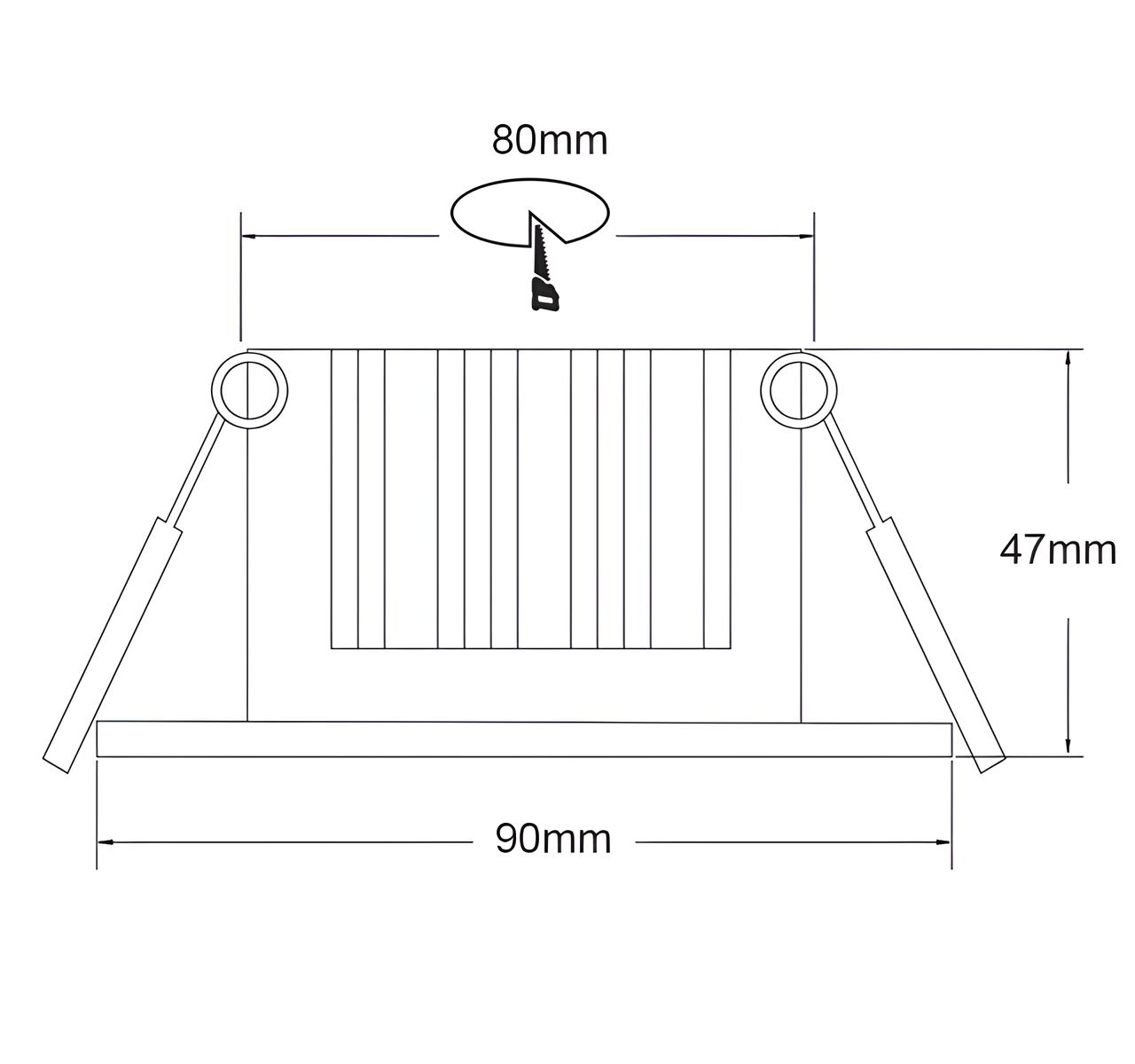

AES-20-A1-90 10W 90-100lm/W 90mmØ x 47mmH 80mmØ 0.32kg 70°
AES-20-A1-105 12W 90-100lm/W 105mmØ x 50mmH 95mmØ 0.38kg 70°
AES-20-A1-130 15W 90-100lm/W 130mmØ x 52mmH 120mmØ 0.47kg 70°

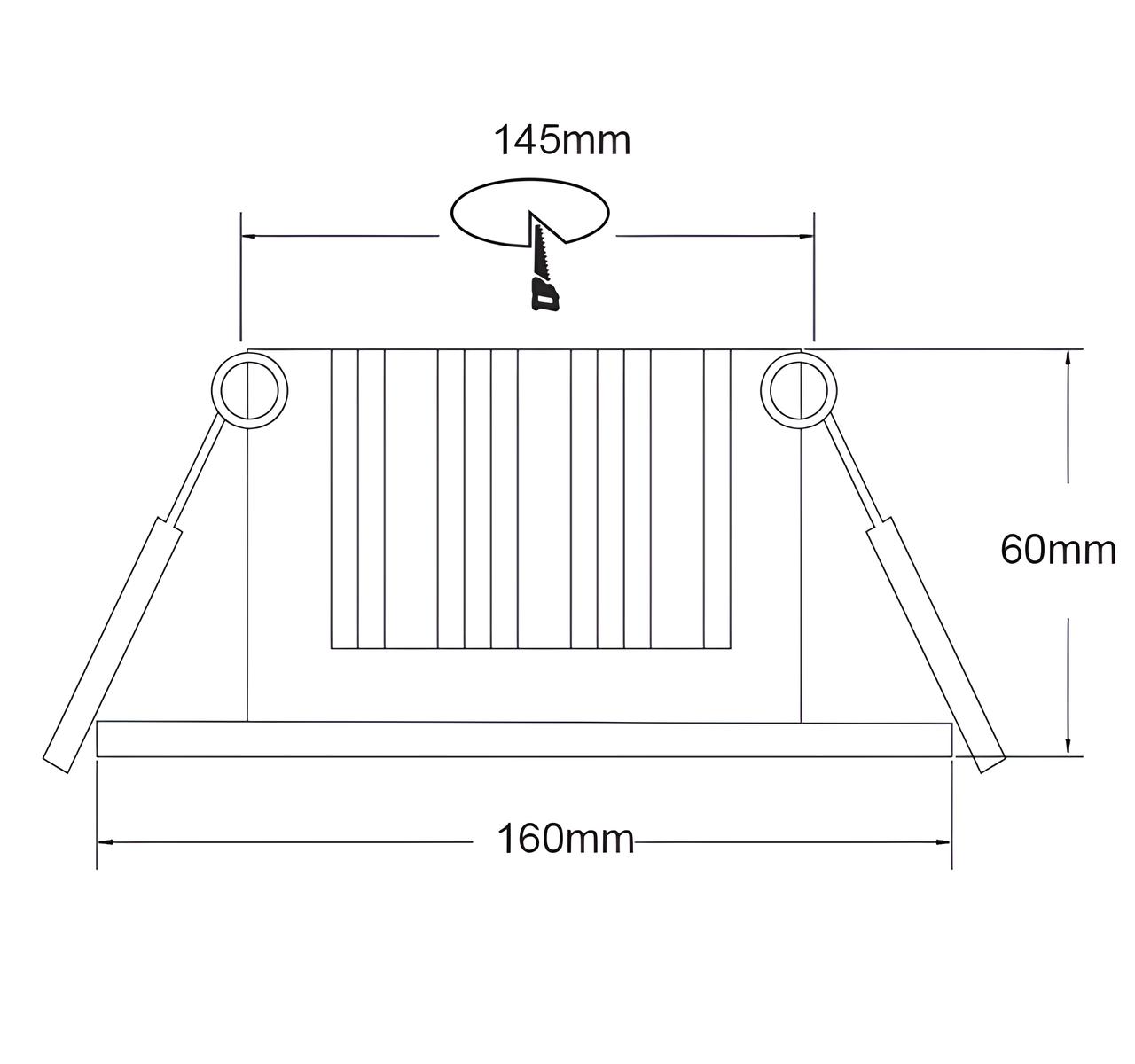

AES-20-A1-160 20W 90-100lm/W 160mmØ x 60mmH 145mmØ 0.57kg 70°
AES-20-A1-175 25W 90-100lm/W 175mmØ x 63mmH 160mmØ 0.63kg 70°
AES-20-A1-220 30W 90-100lm/W 220mmØ x 75mmH 200mmØ 0.79kg 70°
