Ikewa Series

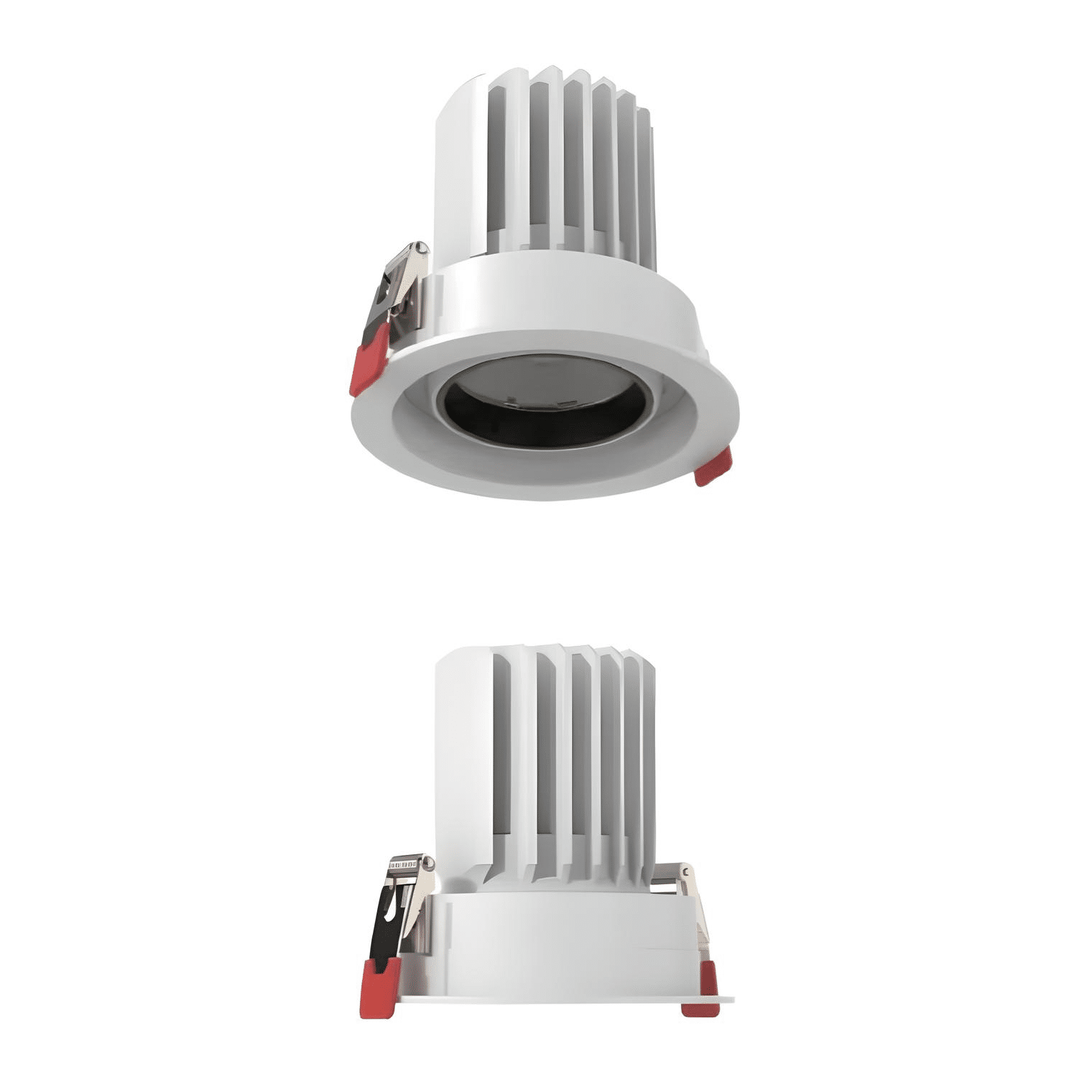

RECESSED DOWNLIGHT

Overview

  • LED Type: Citizen COB
  • Non-Dim Driver: BOKE
  • Triac Driver: AIDimming
  • 0-10V Driver: AIDimming
  • DALI Driver: BOKE
  • Vertical Rotation: 355°
  • Horizontal Rotation: 355°
  • Full 5-year warranty
  • IP Rating: IP20
  • Full 5-year warranty

Customisations

  • Dimming: Non-Dimmable, Triac Dimmable, 0-10V Dimmable or DALI Dimmable
  • CRI: >80, >90, >97
  • CCT: 2700K, 3000K, 3500K. 4000K, 5000K,
  • Internal Reflector Colour: White, Black, Custom Colour
  • Honeycomb Lens

Product Details

MODEL NO WATTAGE EFFICACY (Lumens/Watt) SIZE CUTOUT WEIGHT BEAM ANGLE

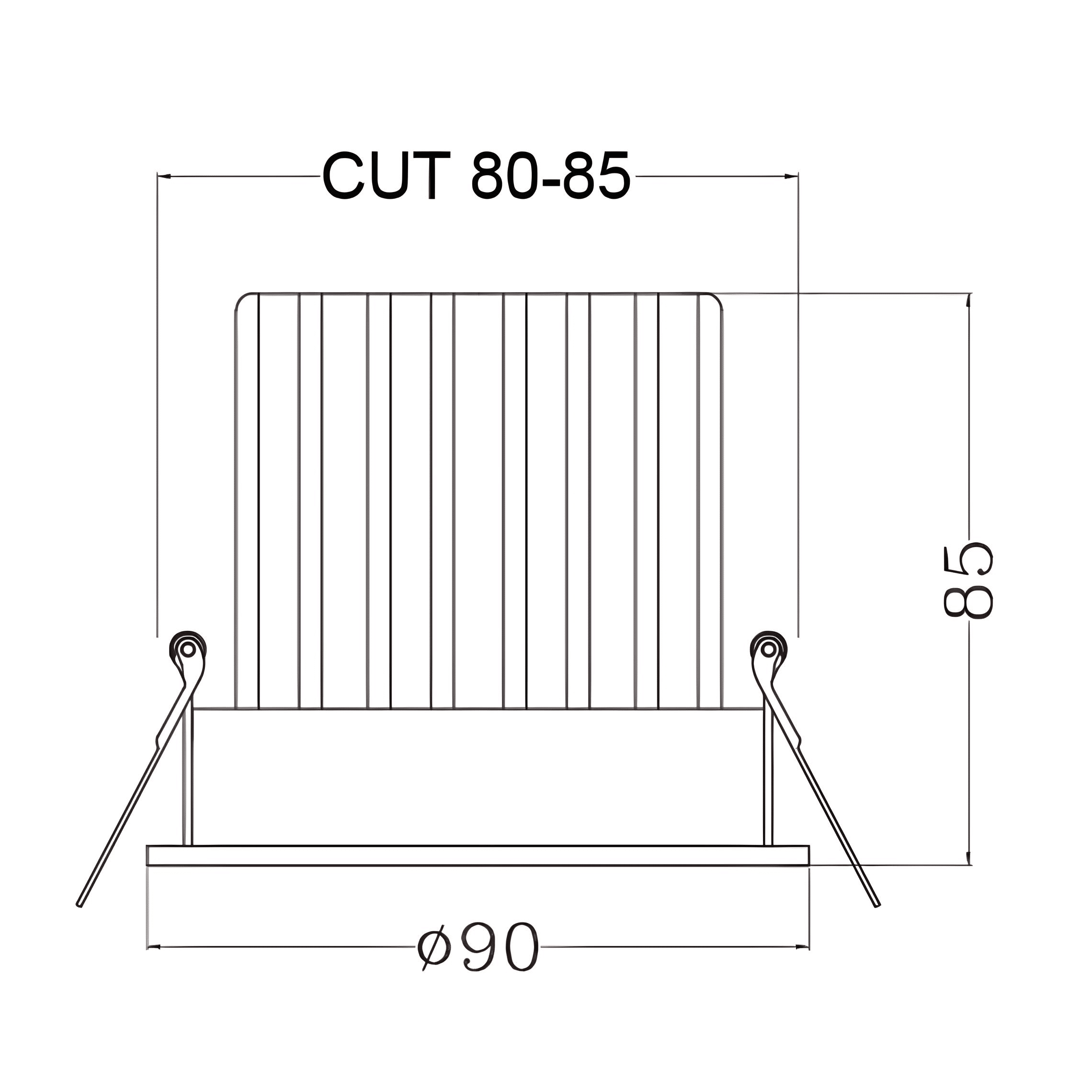

AES-20-C66-90 15W 100-110lm/W 90mmØ x 85mmH 80mmØ-85mmØ 0.55kg 15°, 24°, 36°, 60°

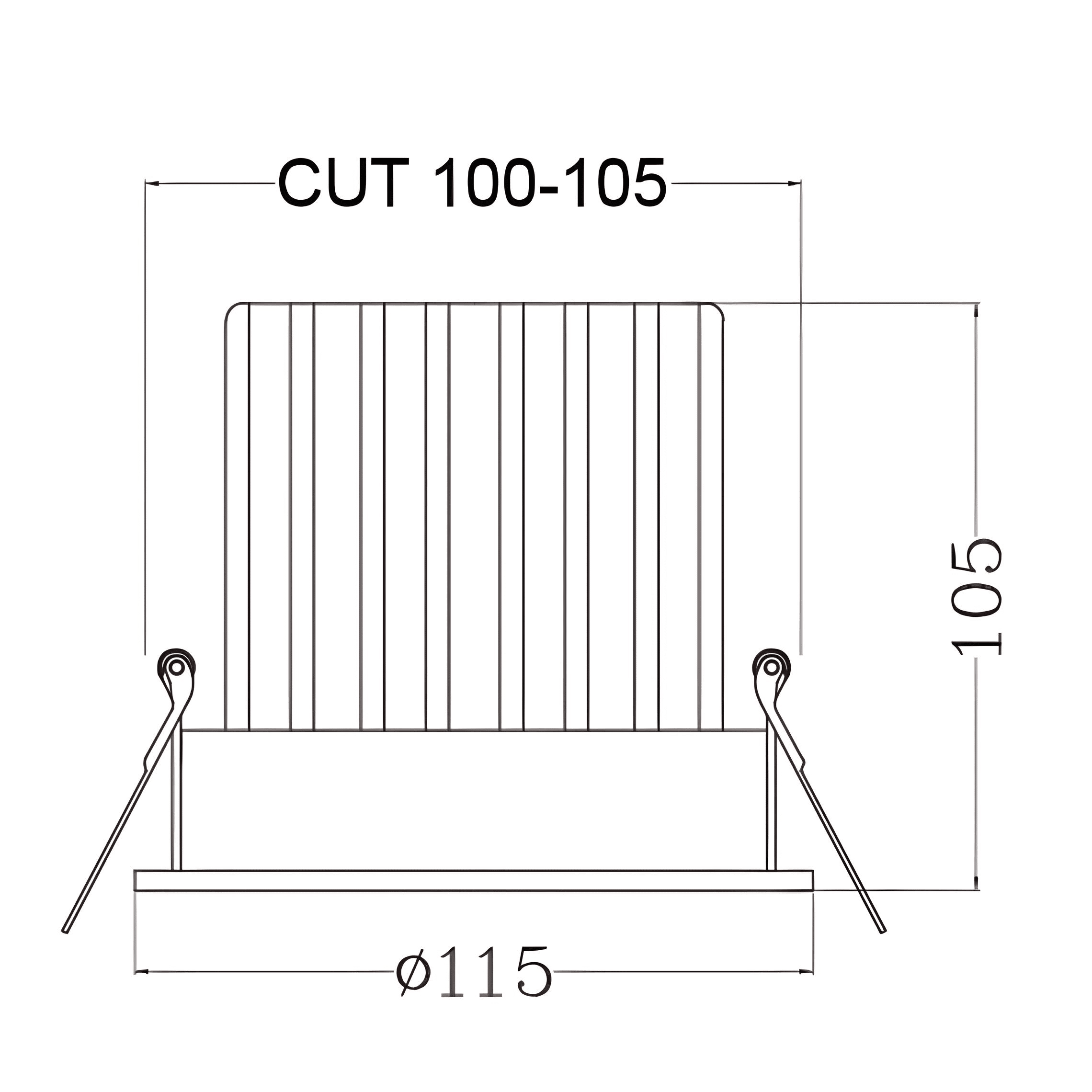

AES-20-C66-115-20W 20W 100-110lm/W 115mmØ x 105mmH 100mmØ-105mmØ 0.75kg 15°, 24°, 36°, 60°
AES-20-C66-115-25W 25W 100-110lm/W 115mmØ x 105mmH 100mmØ-105mmØ 0.75kg 15°, 24°, 36°, 60°

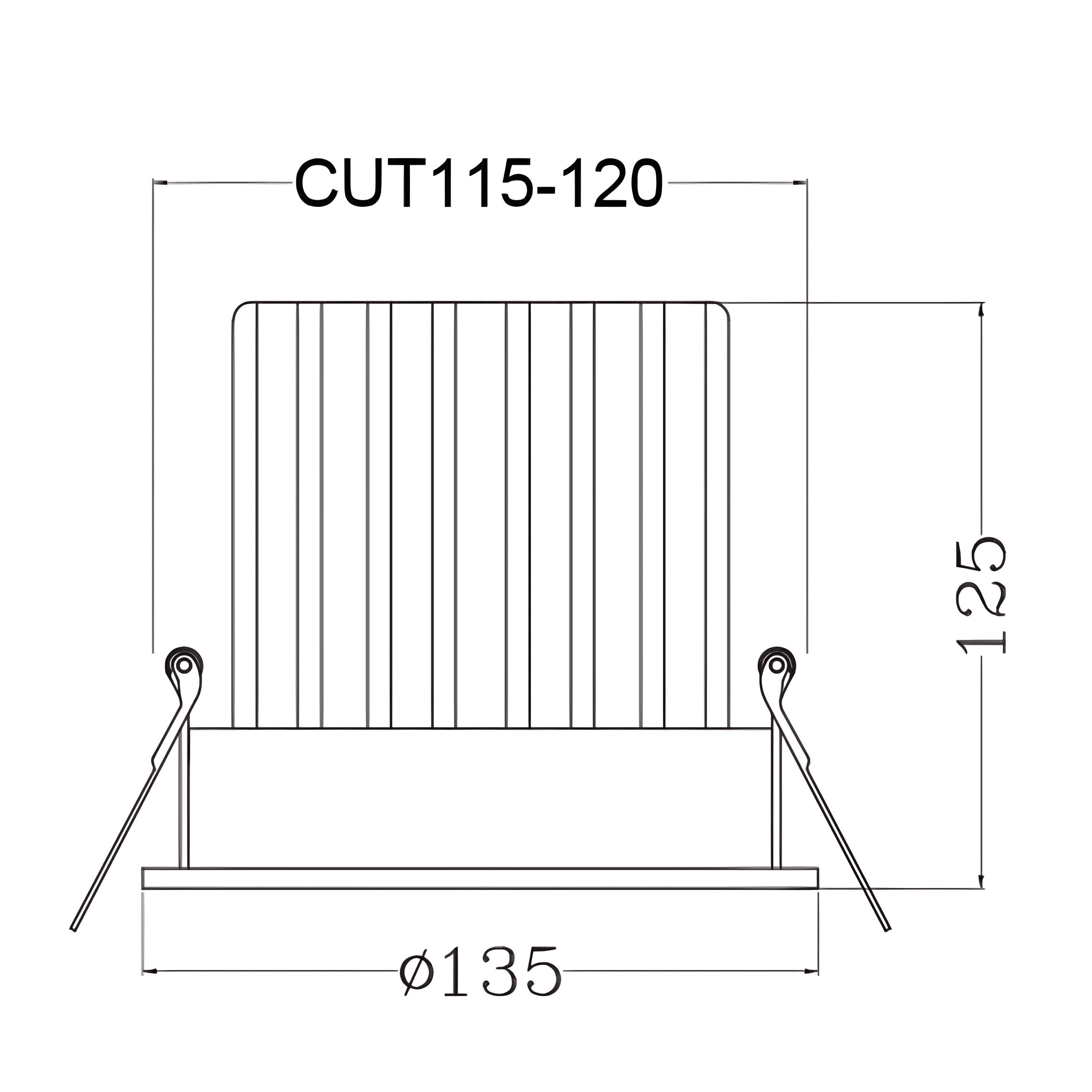

AES-20-C66-135 30W 100-110lm/W 135mmØ x 125mmH 115mmØ-120mmØ 0.93kg 15°, 24°, 36°, 60°
