Haines Series

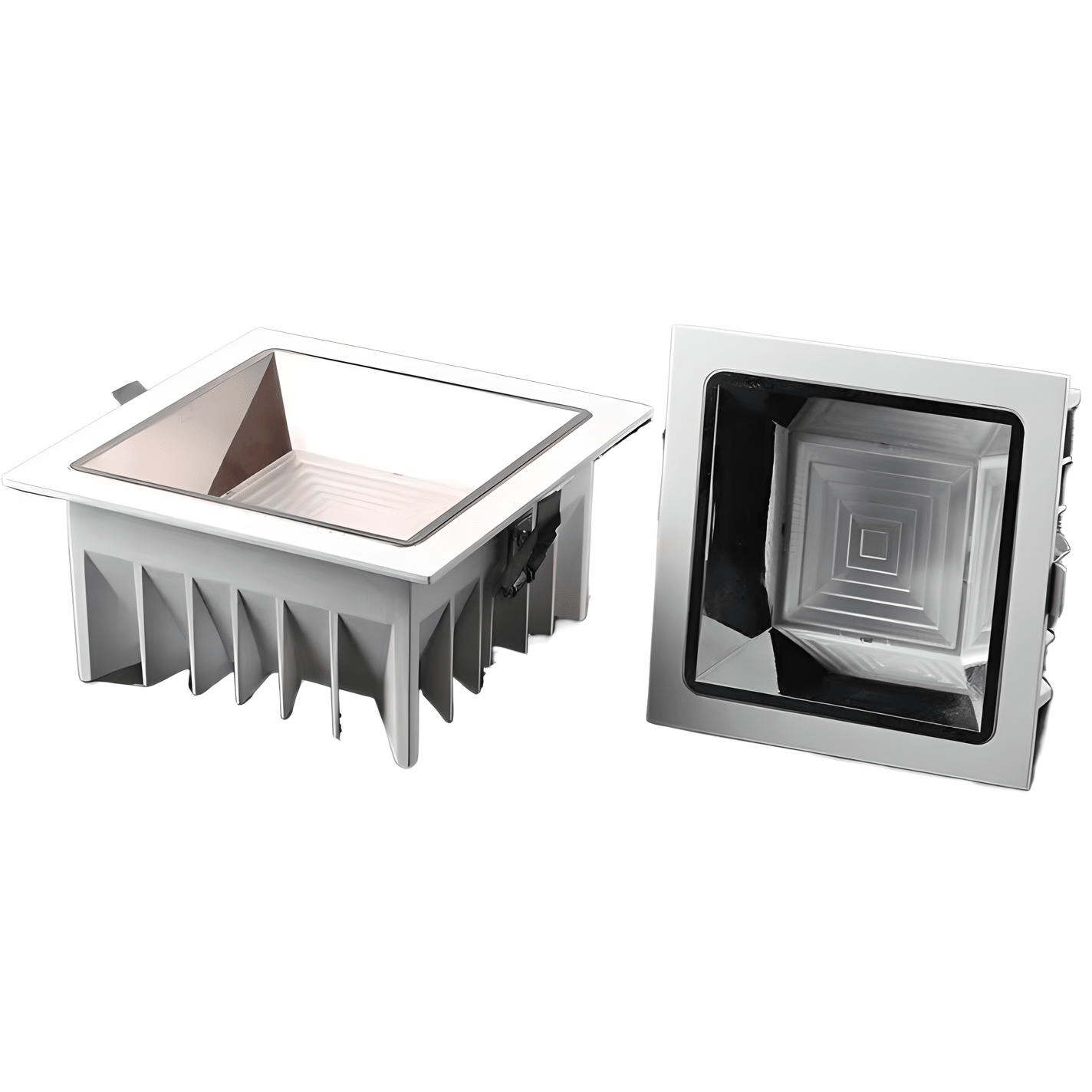

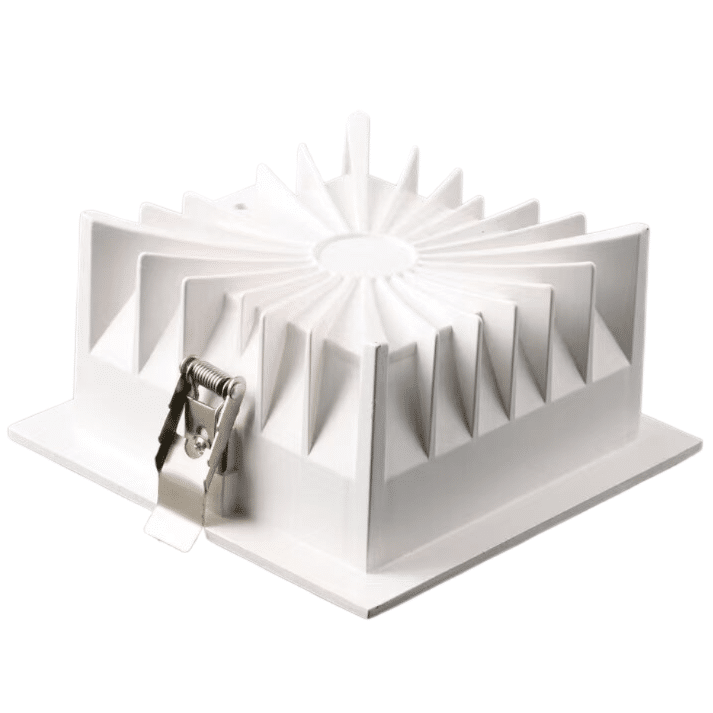

RECESSED DOWNLIGHT
Overview
- LED Type: Bridgelux COB
- Non-Dimmable Driver: Lifud
- Triac Dimmable Driver: AIDimming
- 0-10V Dimmable Driver: CUPower
- DALI Dimmable Driver: CUPower
- Full 5-year warranty
- IP Rating: IP20
Customisations
- Dimming: Non-Dimmable, Triac Dimmable, 0-10V Dimmable or DALI Dimmable
- CCT: 2700K, 3000K, 3500K, 4000K, 5000K, 6500K
- CRI: >90, >95, or >97
- Internal Colour: Silver or Custom Colour
- External Colour: White, Black or Custom Colour
Product Details
| MODEL NO | WATTAGE | EFFICACY (Lumens/Watt) | SIZE | CUTOUT | WEIGHT | BEAM ANGLE | |||||||||||||||||||||||||||||||||||||||||||||||||||

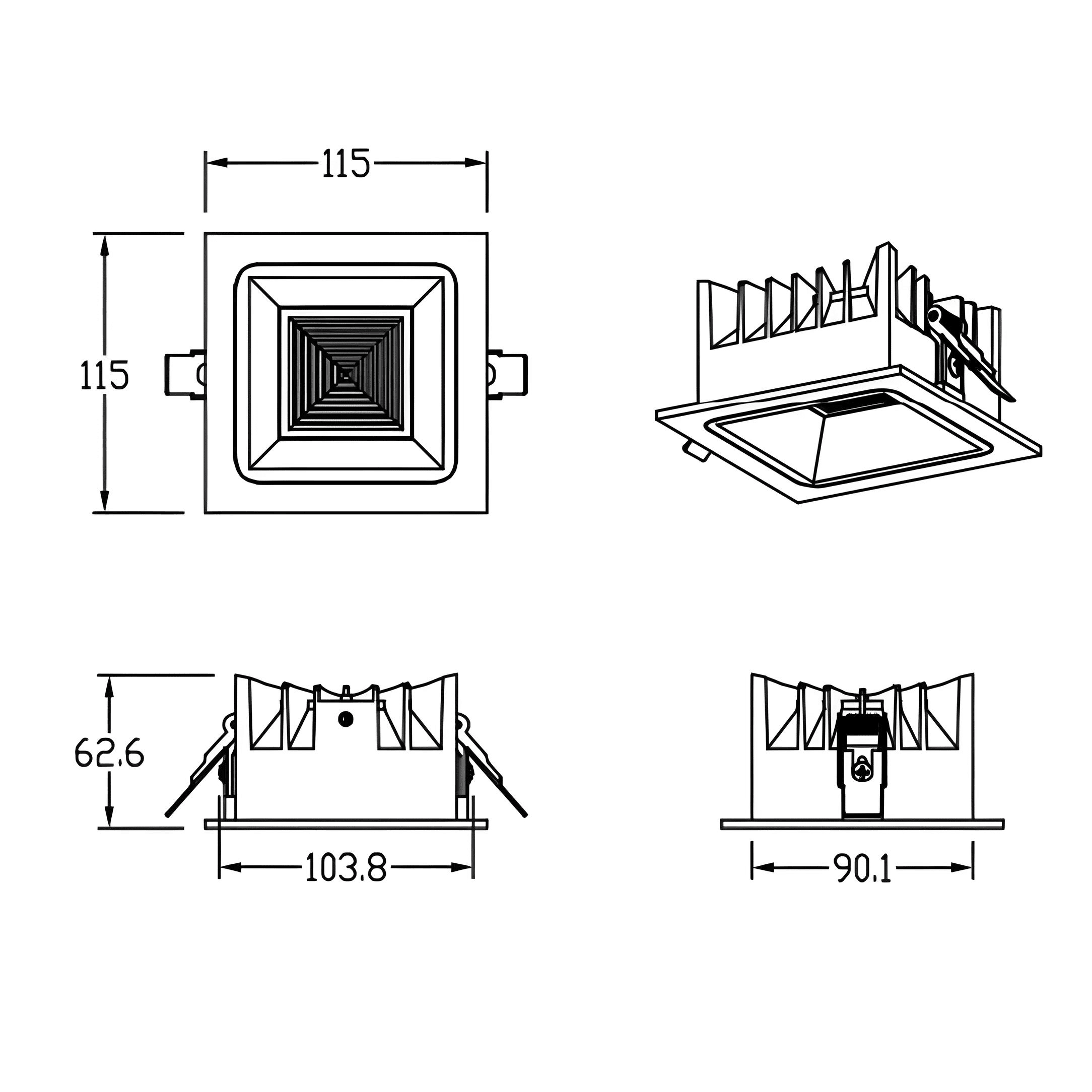

| AES-15-3001F-115 | 10W | 90lm/W | 115mmL x 115mmW x 62.6mmH | 103.8mm L x 103.8mm W | 0.35kg | 50° | |||||||||||||||||||||||||||||||||||||||||||||||||||

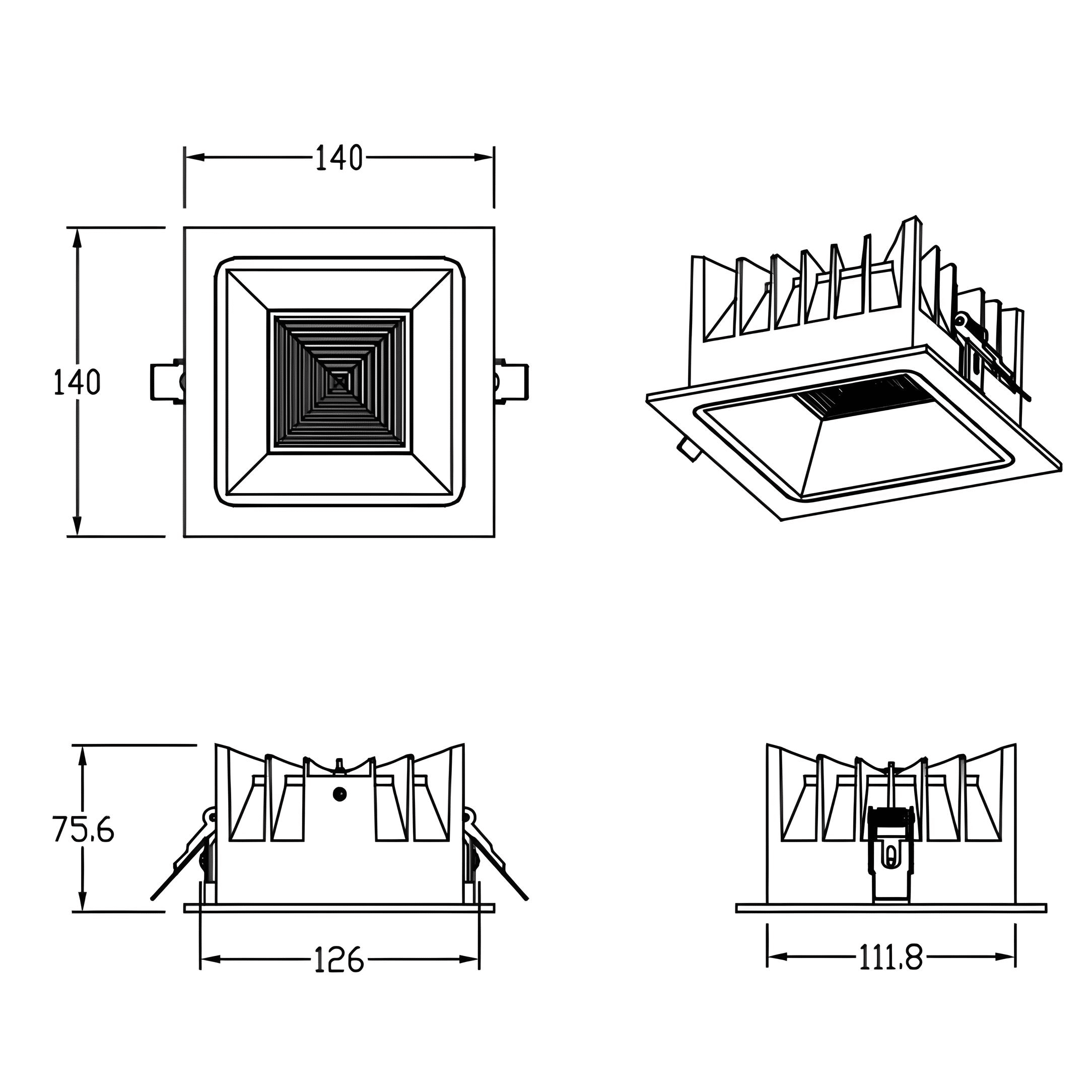

| AES-15-3001F-140 | 20W | 90lm/W | 140mmL x 140mmW x 75.6mmH | 126mm L x 126mm W | 0.40kg | 50° | |||||||||||||||||||||||||||||||||||||||||||||||||||

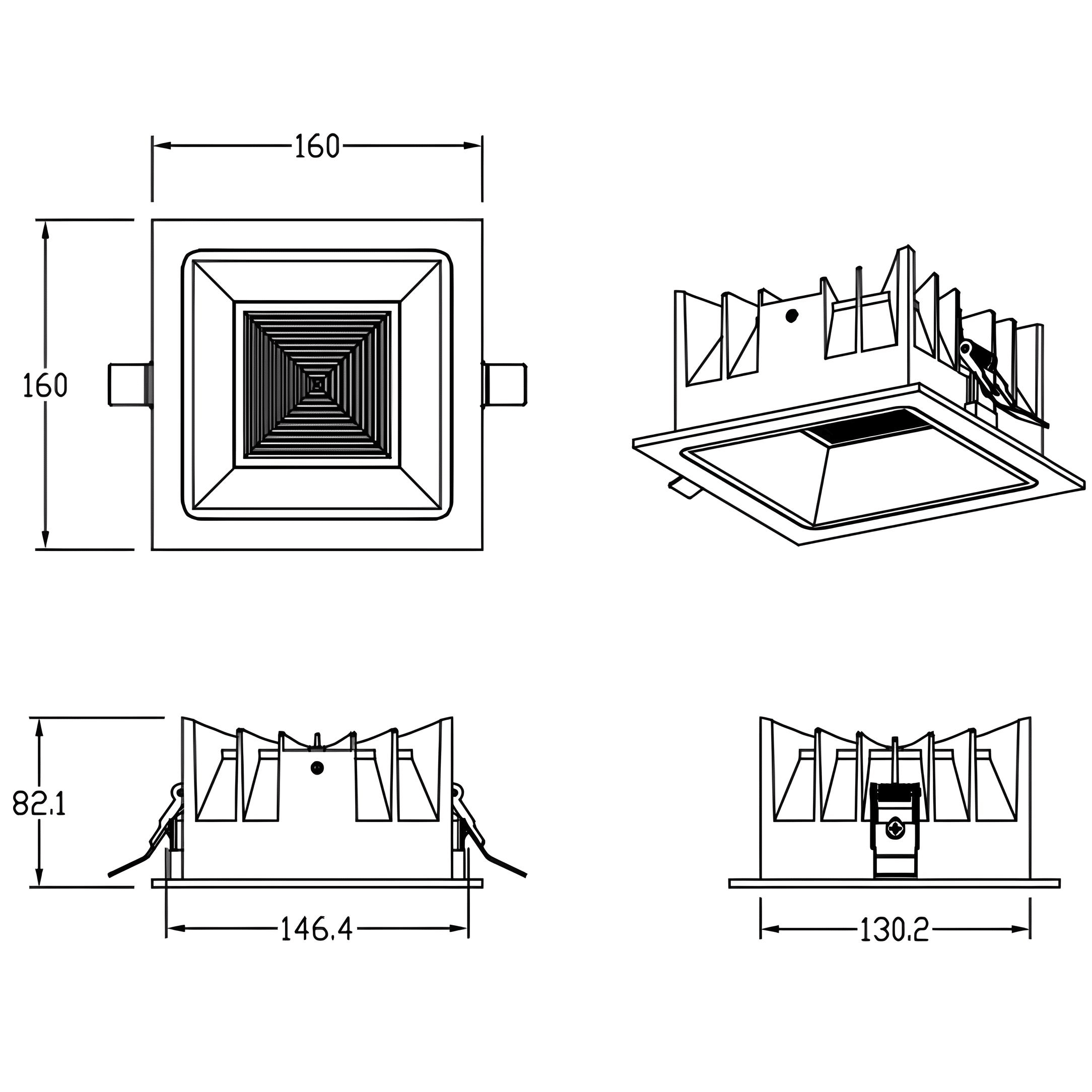

| AES-15-3001F-160 | 30W | 90lm/W | 160mmL x 160mmW x 82.1mmH | 146.4mm L x 146.4mm W | 0.90kg | 50° | |||||||||||||||||||||||||||||||||||||||||||||||||||
| AES-15-3001F-195 | 40W | 90lm/W | 198mmL x 198mm W x 96.7mmH | 176mm L x 176mm W | 1.15kg | 50° | |||||||||||||||||||||||||||||||||||||||||||||||||||
