Hadfield Series

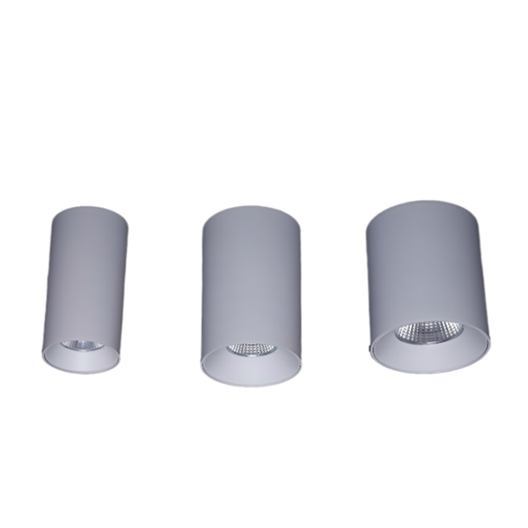

SURFACE MOUNTED DOWNLIGHT

Overview

  • Faceted Reflector
  • LED Type: Citizen COB
  • Driver: BOKE
  • Full 5-year warranty
  • IP Rating: IP20

Customisations

  • Dimming: Non-Dimmable, Triac Dimmable, 0-10V Dimmable or DALI Dimmable
  • Beam Angles: 15°, 24°, 38°, 60°
  • CCT: 2700K, 3000K, 4000K, 5000K
  • Trim Colour: White, Black or Custom Colour

Product Details

MODEL NO WATTAGE EFFICACY (Lumens/Watt) SIZE WEIGHT BEAM ANGLE

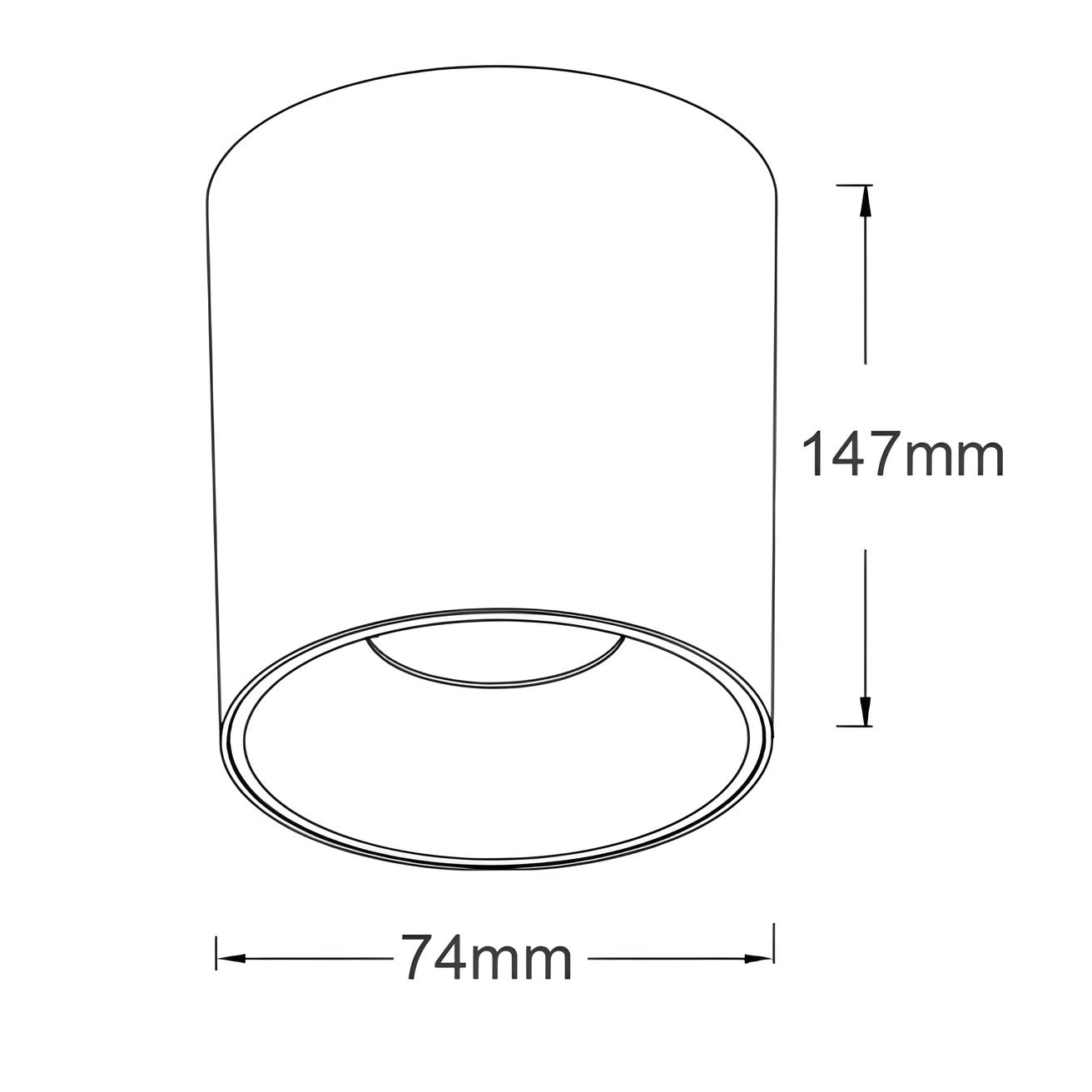

AES-20-C22-74 10W 90-100lm/W 74mmØ x 147mmH 0.74kg 15°, 24°, 38°, 60°
AES-20-C22-96-15W 15W 90-100lm/W 96mmØ x 152mmH 0.96kg 15°, 24°, 38°, 60°
AES-20-C22-96-20W 20W 90-100lm/W 96mmØ x 152mmH 0.96kg 15°, 24°, 38°, 60°
AES-20-C22-115 20W 90-100lm/W 115mmØ x 135mmH 1.15kg 15°, 24°, 38°, 60°

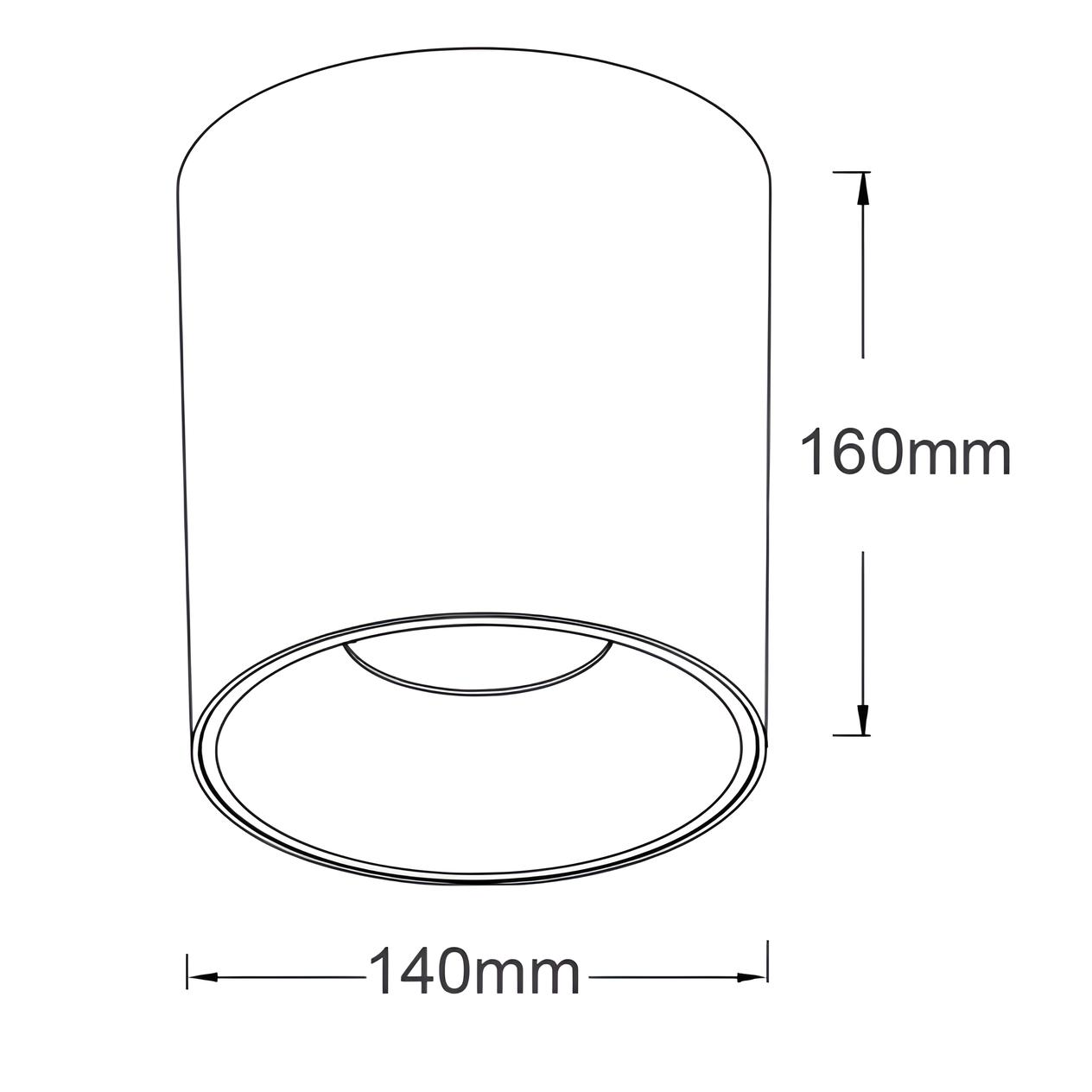

AES-20-C22-140 30W 90-100lm/W 140mmØ x 160mmH 1.4kg 15°, 24°, 38°, 60°

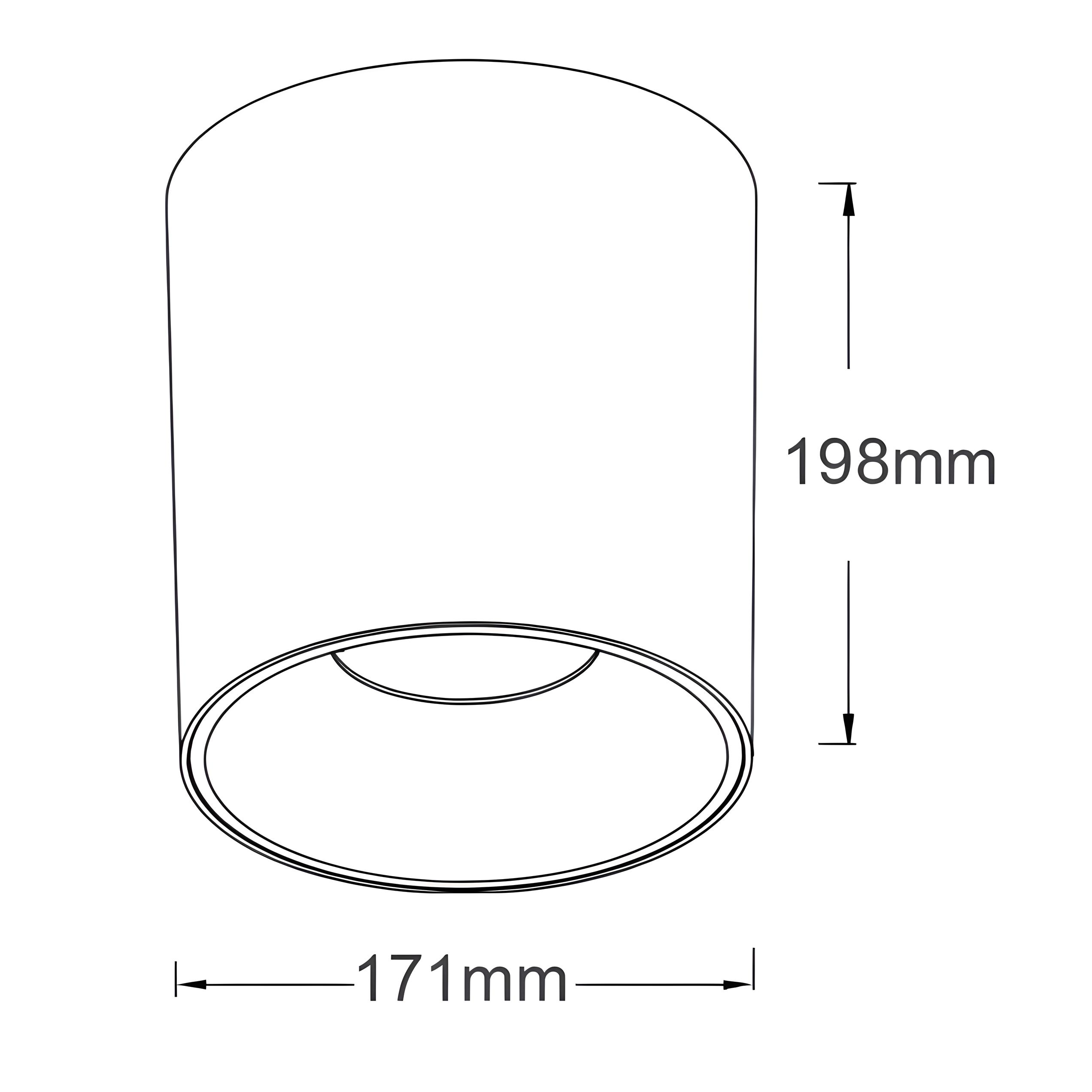

AES-20-C22-171 40W 90-100lm/W 171mmØ x 198mmH 1.72kg 15°, 24°, 38°, 60°
AES-20-C22-186 50W 90-100lm/W 186mmØ x 214mmH 1.9kg 15°, 24°, 38°, 60°
