Gerard Series – SMD Lens

PROJECTOR LIGHT

Overview

  • LED Type: CREE SMD
  • Driver: Eaglerise
  • Full 5-year warranty
  • IP Rating: IP66
  • IK Rating: IK08
  • Vertical Rotation: 90°
  • Horizontal Rotation: 355°

Customisations

  • Dimming: Non-Dimmable, Triac Dimmable, 1-10V Dimmable or DALI Dimmable
  • Beam Angles:   5°, 8°, 10°, 12°, 20°, 25°, 30°, 40°, 45°, 60°, 10° x 22°, 15° x 55°, 20° x 60°
  • CCT: 2700K, 3000K, 3500K, 4000K, 5000K
  • Trim Colour: White, Black, Grey or Custom Colour
  • Accessories: Pole, Pole & Spike, Tree Mount, ABS Spike, Honeycomb Louvre, 45° Cylindrical Hood, Cylindrical Hood.

Product Details



MODEL NO WATTAGE EFFICACY (Lumens/Watt) SIZE WEIGHT BEAM ANGLE

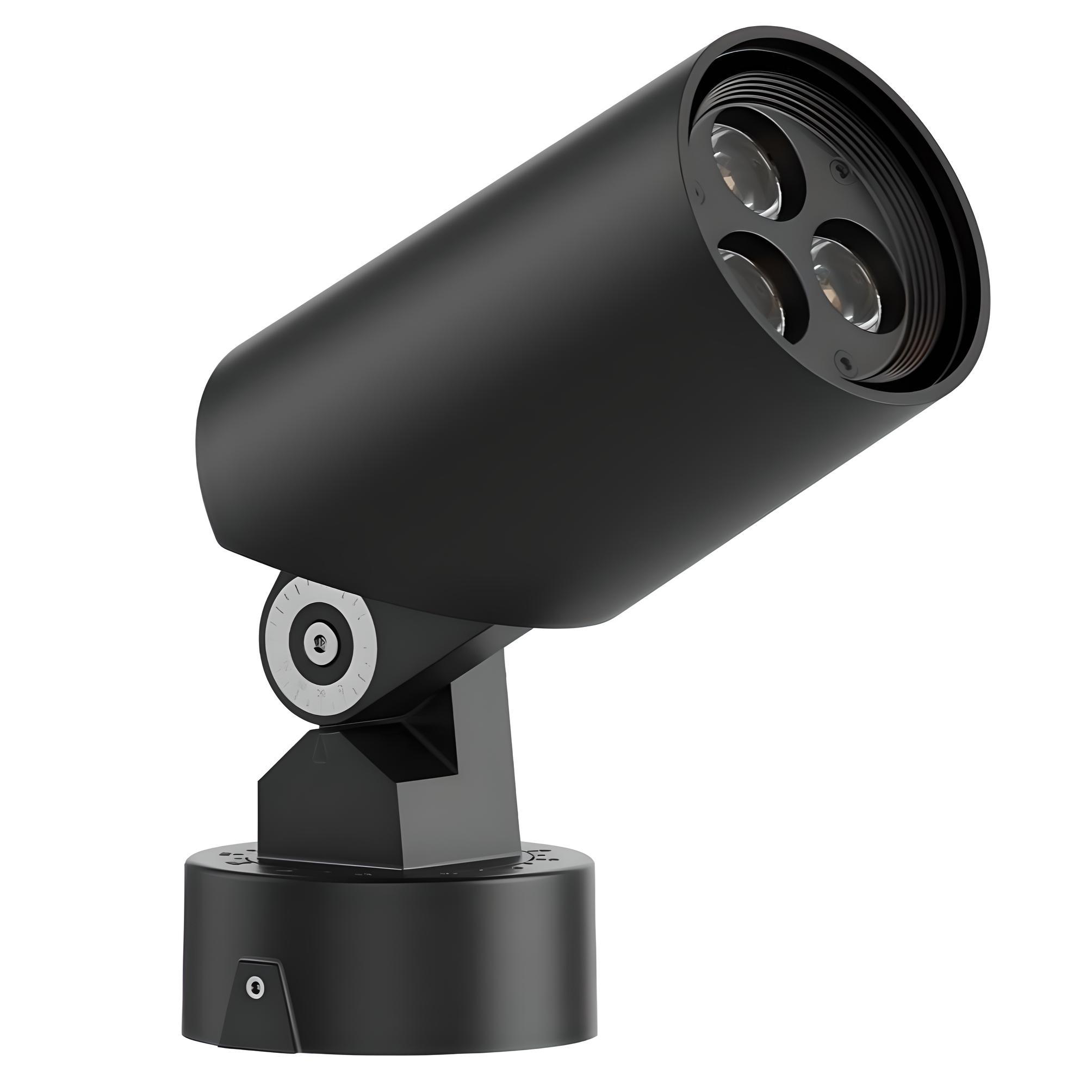

AES-12-D680306-SL 12W 80lm/W 67mmØ x 163mmH 1-1.5kg 5°, 8°, 10°, 12°, 20°, 25°, 30°, 40°, 45°, 60°, 10° x 22°, 15° x 55°, 20° x 60°

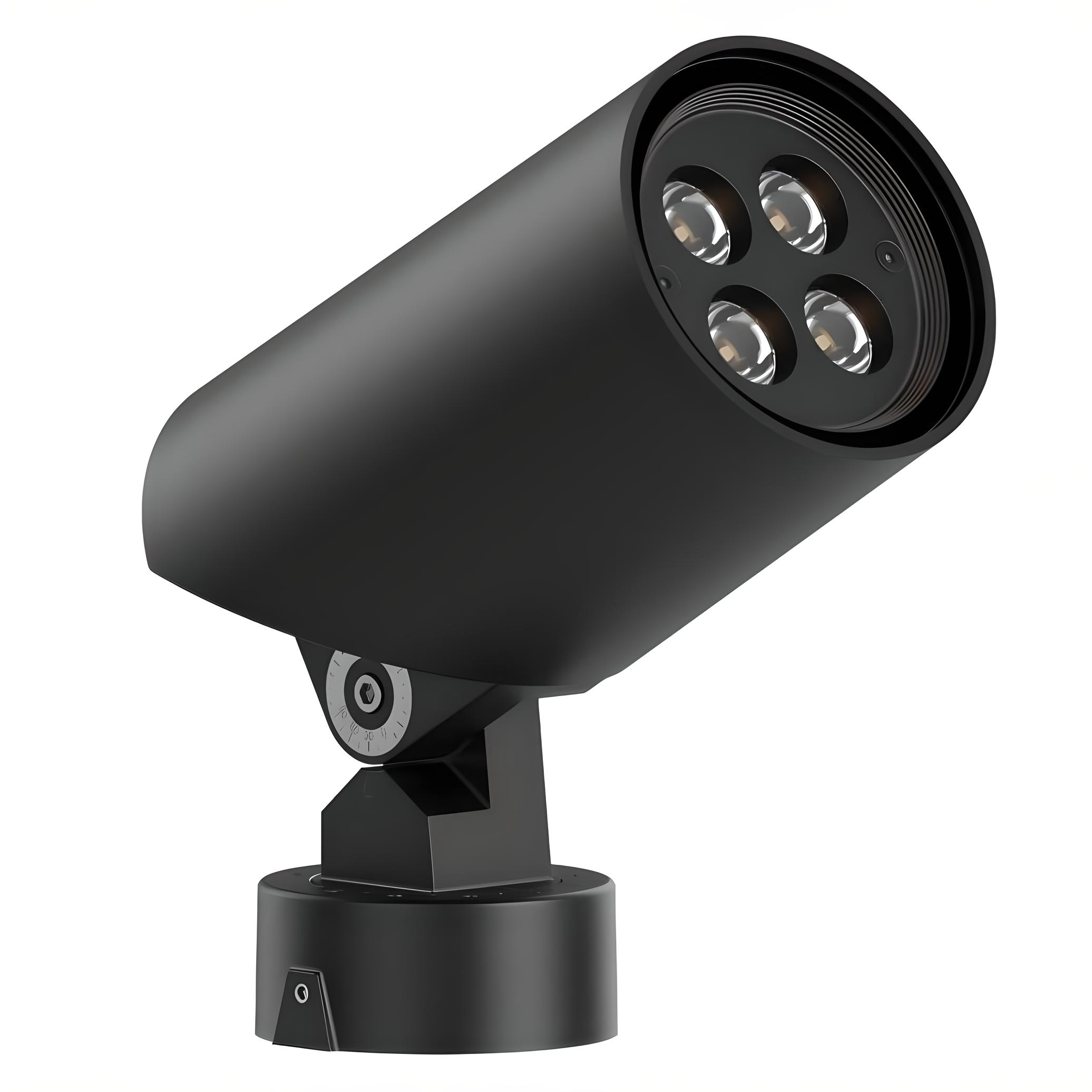

AES-12-D860410-SL 24W 80lm/W 85mmØ x 186mmH 1-1.5kg  5°, 8°, 10°, 12°, 20°, 25°, 30°, 40°, 45°, 60°, 10° x 22°, 15° x 55°, 20° x 60°

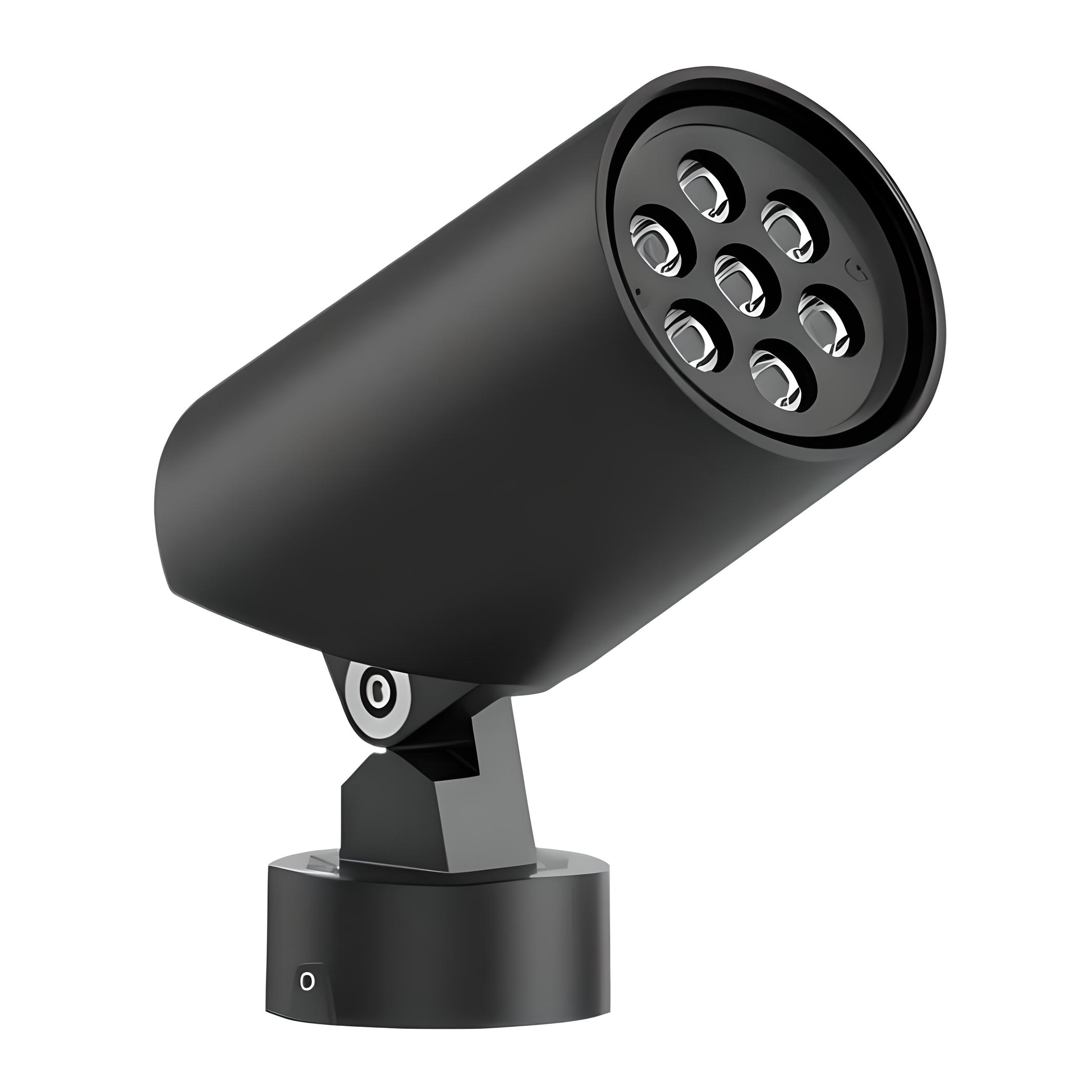

AES-12-D1080715-SL 30W 80lm/W 105mmØ x 233mmH 2-3kg  5°, 8°, 10°, 12°, 20°, 25°, 30°, 40°, 45°, 60°, 10° x 22°, 15° x 55°, 20° x 60°

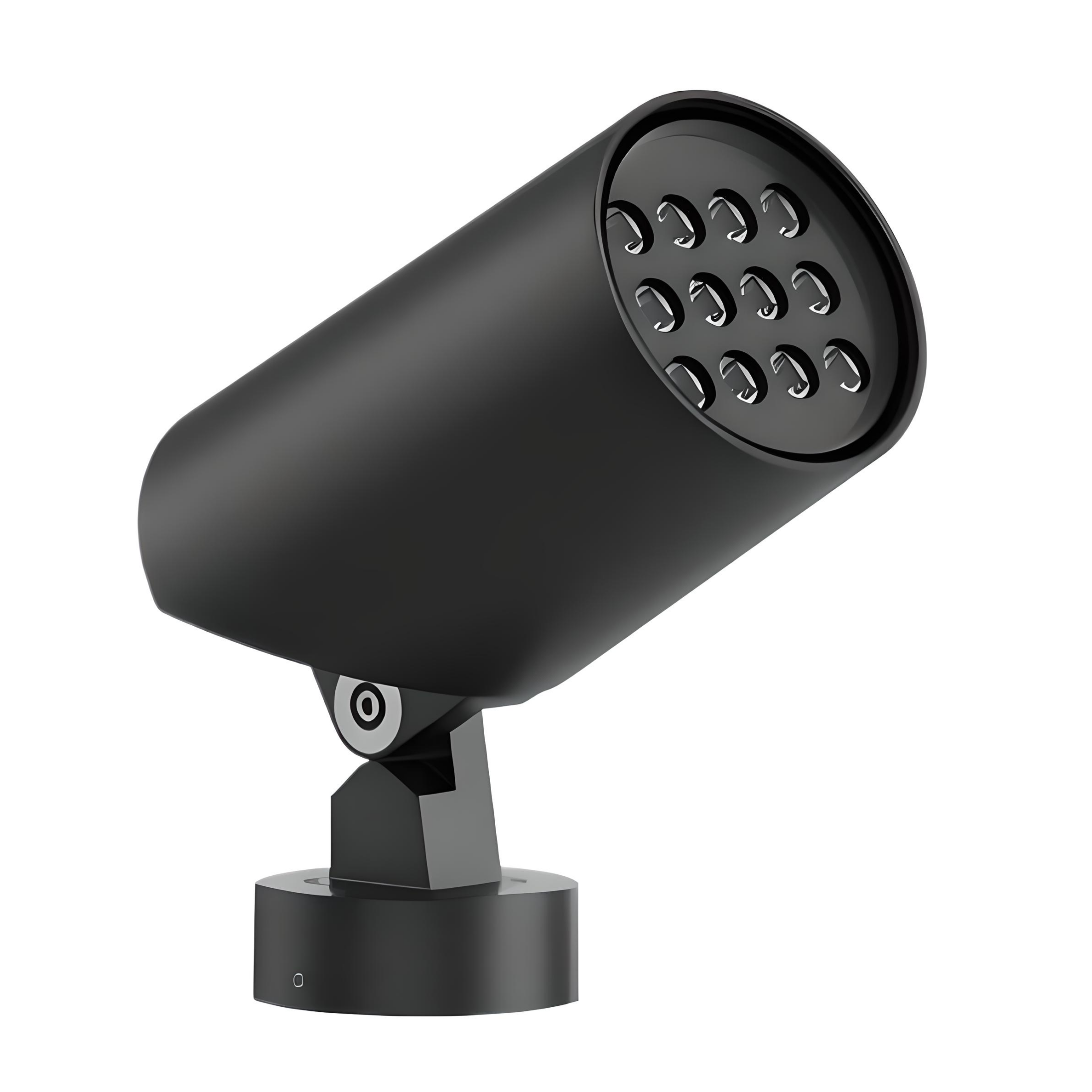

AES-12-D1401245-SL 48W 80lm/W 138mmØ x 299mmH 2-3kg  5°, 8°, 10°, 12°, 20°, 25°, 30°, 40°, 45°, 60°, 10° x 22°, 15° x 55°, 20° x 60°
