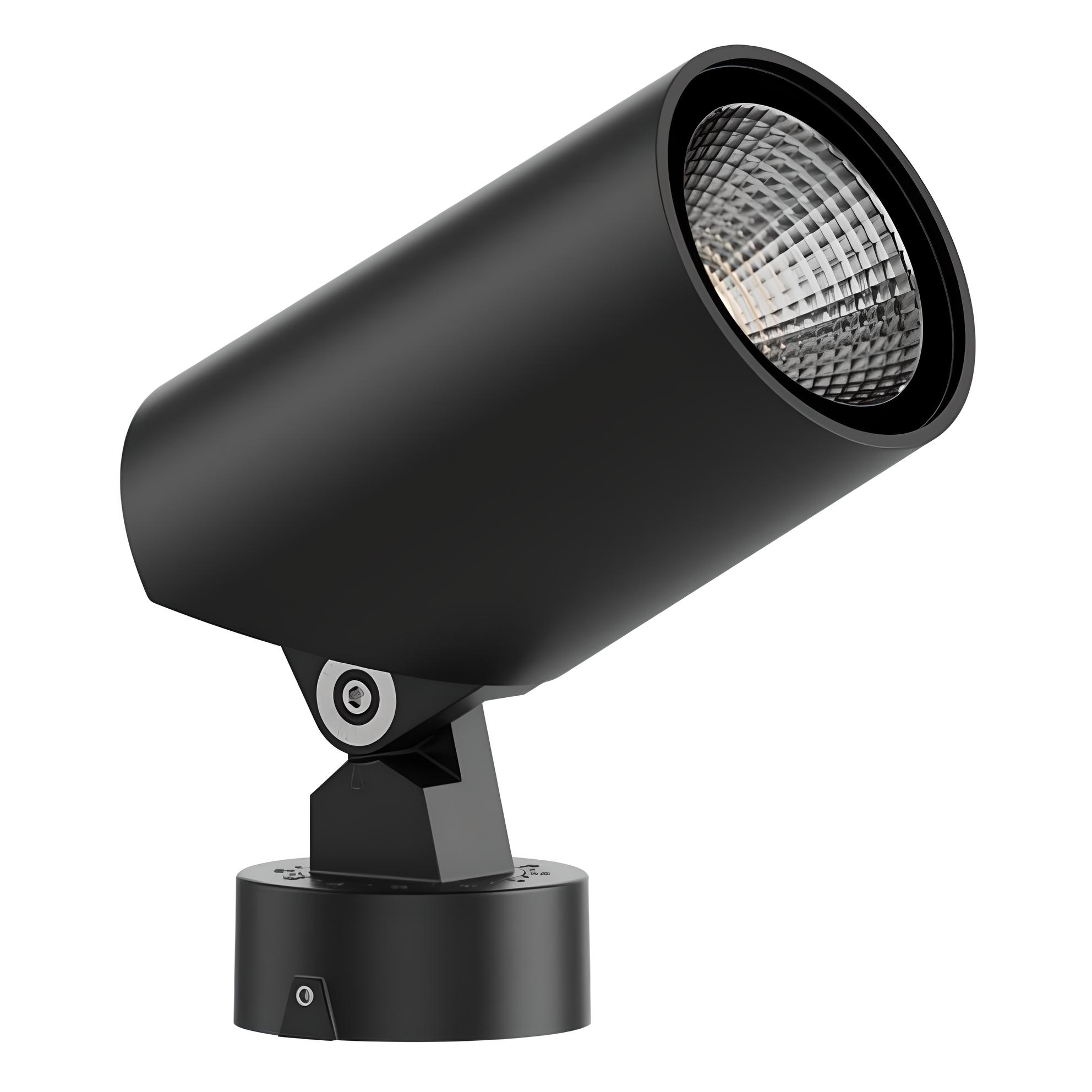

Gerard Series – COB Reflector

PROJECTOR LIGHT

Overview

  • Faceted Reflector
  • LED Type: CREE COB
  • Driver: Eaglerise
  • Full 5-year warranty
  • IP Rating: IP66
  • IK Rating: IK08
  • Vertical Rotation: 90°
  • Horizontal Rotation: 355°

Customisations

  • Dimming: Non-Dimmable, Triac Dimmable, 1-10V Dimmable or DALI Dimmable
  • Beam Angles:  15°, 24°, 38°, 60°
  • CCT: 2700K, 3000K, 3500K, 4000K, 5000K
  • Trim Colour: White, Black, Grey or Custom Colour
  • Accessories: Pole, Pole & Spike, Tree Mount, ABS Spike, Honeycomb Louvre, 45° Cylindrical Hood, Cylindrical Hood.

Product Details

MODEL NO WATTAGE EFFICACY (Lumens/Watt) SIZE WEIGHT BEAM ANGLE
AES-12-D6801-CR 12W 80lm/W 67mmØ x 163mmH 1-1.5kg 15°, 24°, 38°, 60°
AES-12-D8601-CR 24W 80lm/W 85mmØ x 186mmH 1-1.5kg 15°, 24°, 38°, 60°
AES-12-D10801-CR 36W 80lm/W 105mmØ x 233mmH 2-3kg 15°, 24°, 38°, 60°

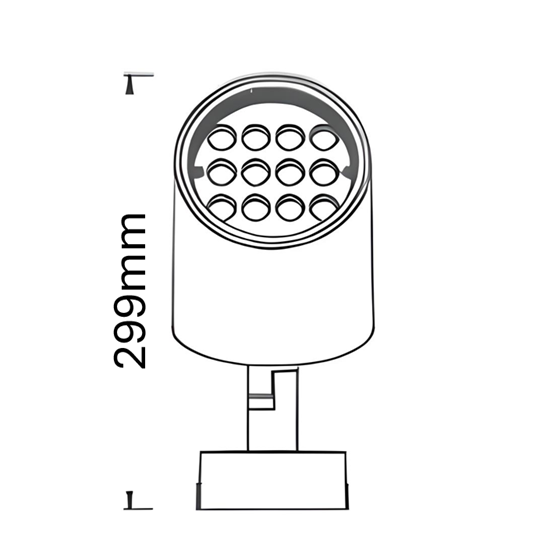

AES-12-D140014-CR 48W 80lm/W 138mmØ x 299mmH 2-3kg 15°, 24°, 38°, 60°
