Endeavour

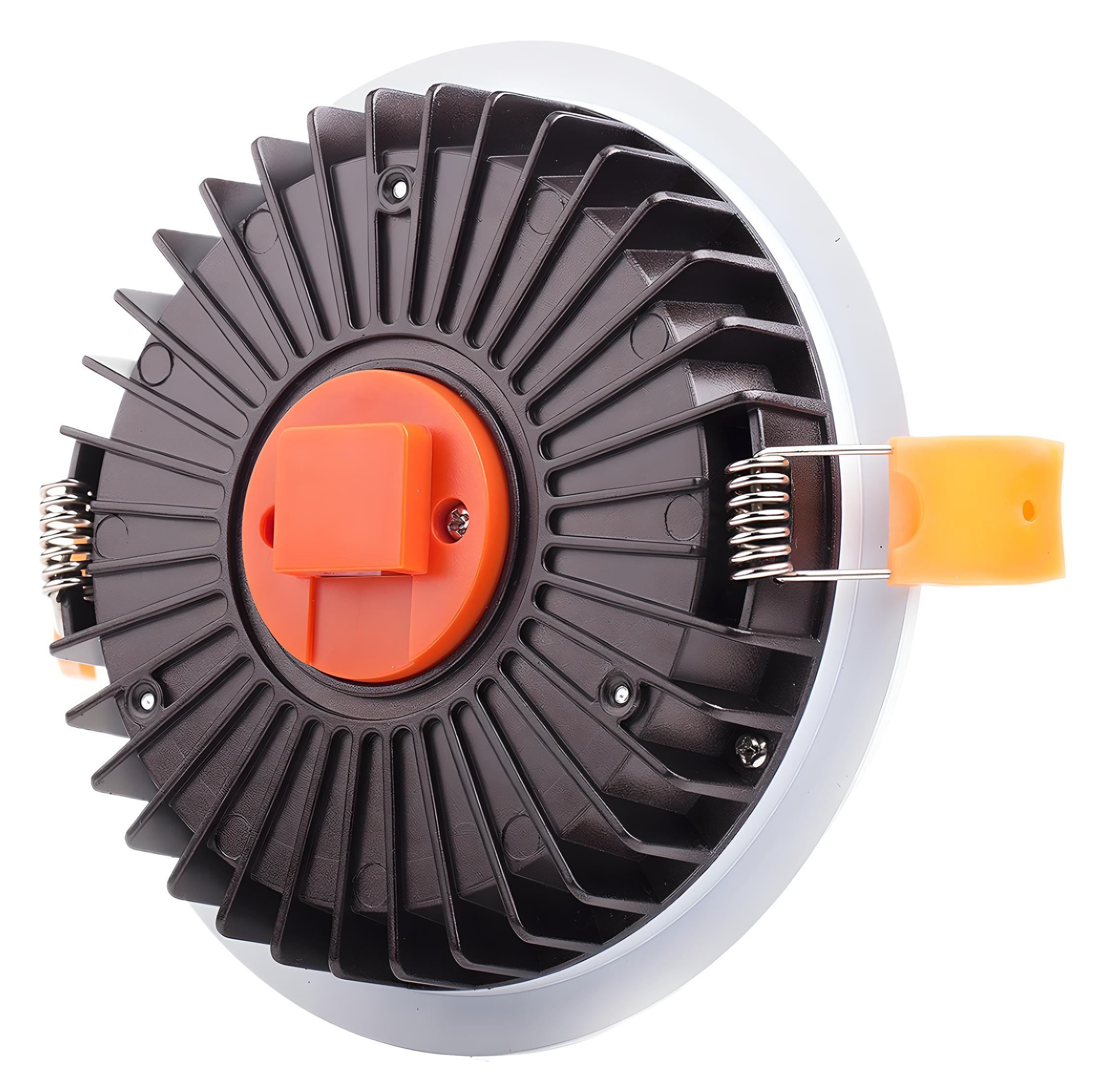

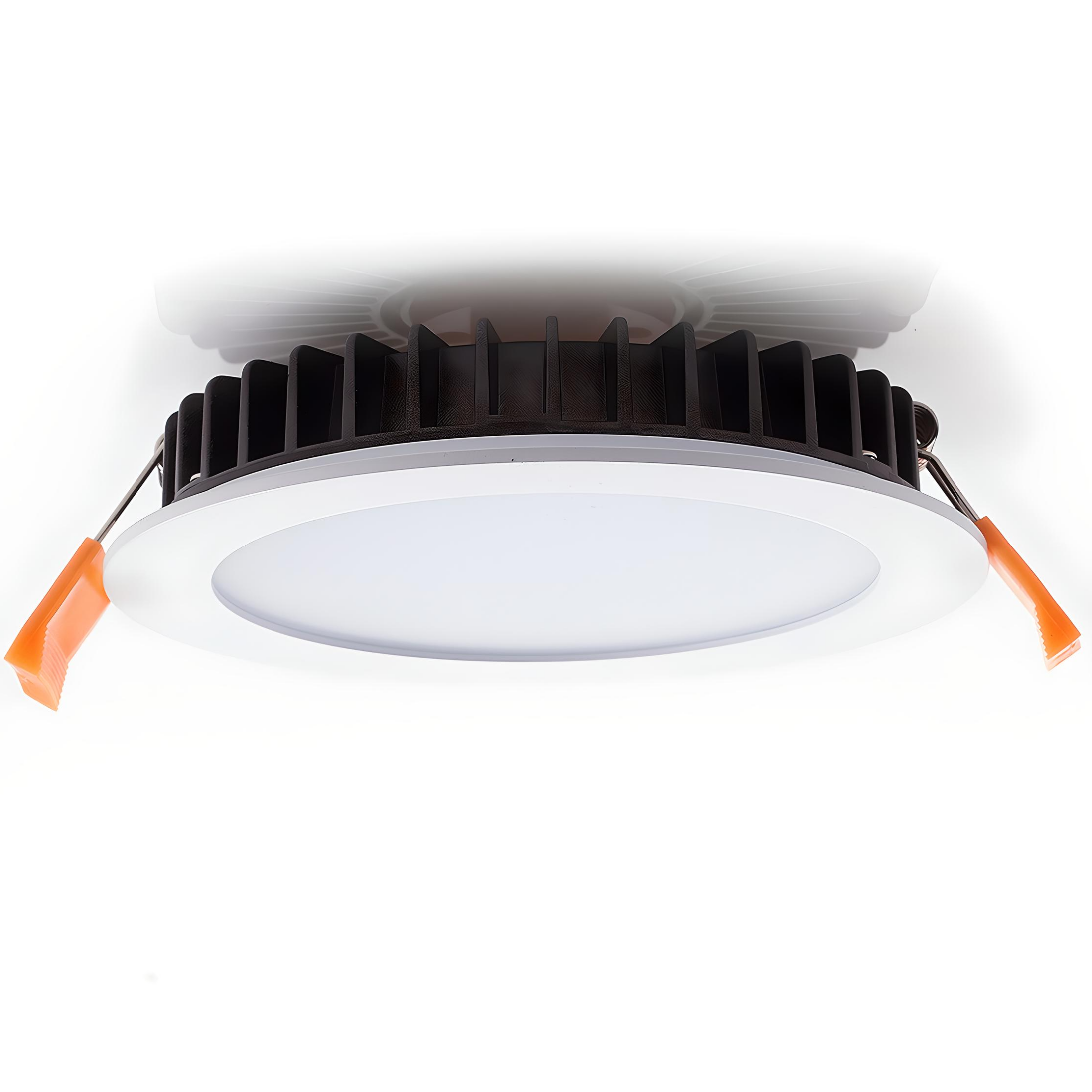

RECESSED LED LIGHT

Overview

  • Aluminium Housing
  • Glass Lens
  • LED Type: Philips SMD 2835
  • Driver: Archi Flicker-Free
  • Full 5-year warranty
  • 50,000 hours lamp life

Customisations

  • 0-10V, Triac or DALI Dimmable
  • Available in black, white or custom colour trims
  • Available in optional CCT: 2700/3000/4000/5000/5700K
Data Sheet
Add to Enquiry
MODEL NO WATTAGE EFFICACY (Lumens/Watt) SIZE CUTOUT

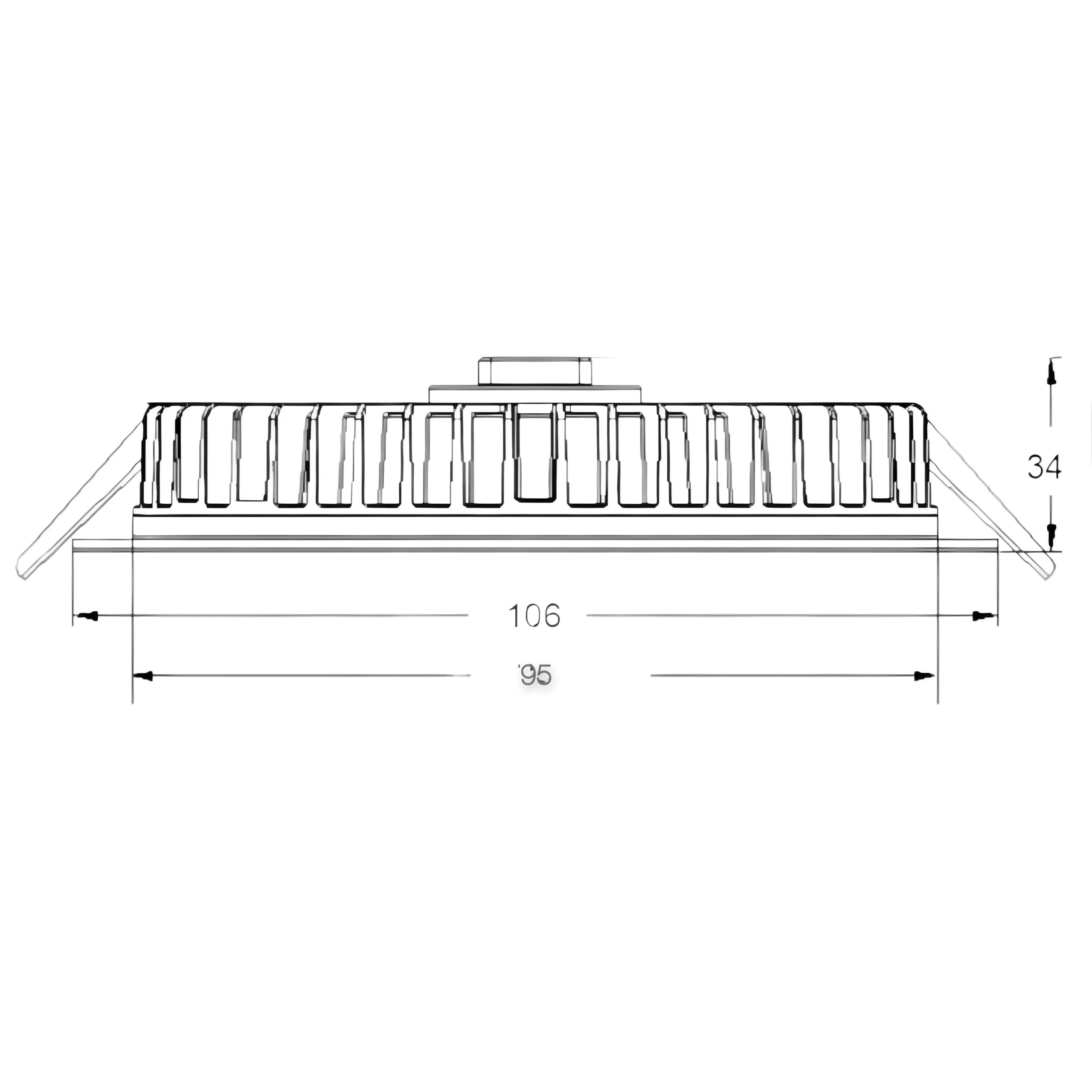

AES-PS-DL-9W-3″-A21-9W 9W 100 106mmØ x 34mmH 90-95mmØ
AES-PS-DL-9W-3″-A21-9W 9W 110 106mmØ x 34mmH 90-95mmØ
AES-PS-DL-9W-3″-A21-9W 9W 120 106mmØ x 34mmH 90-95mmØ

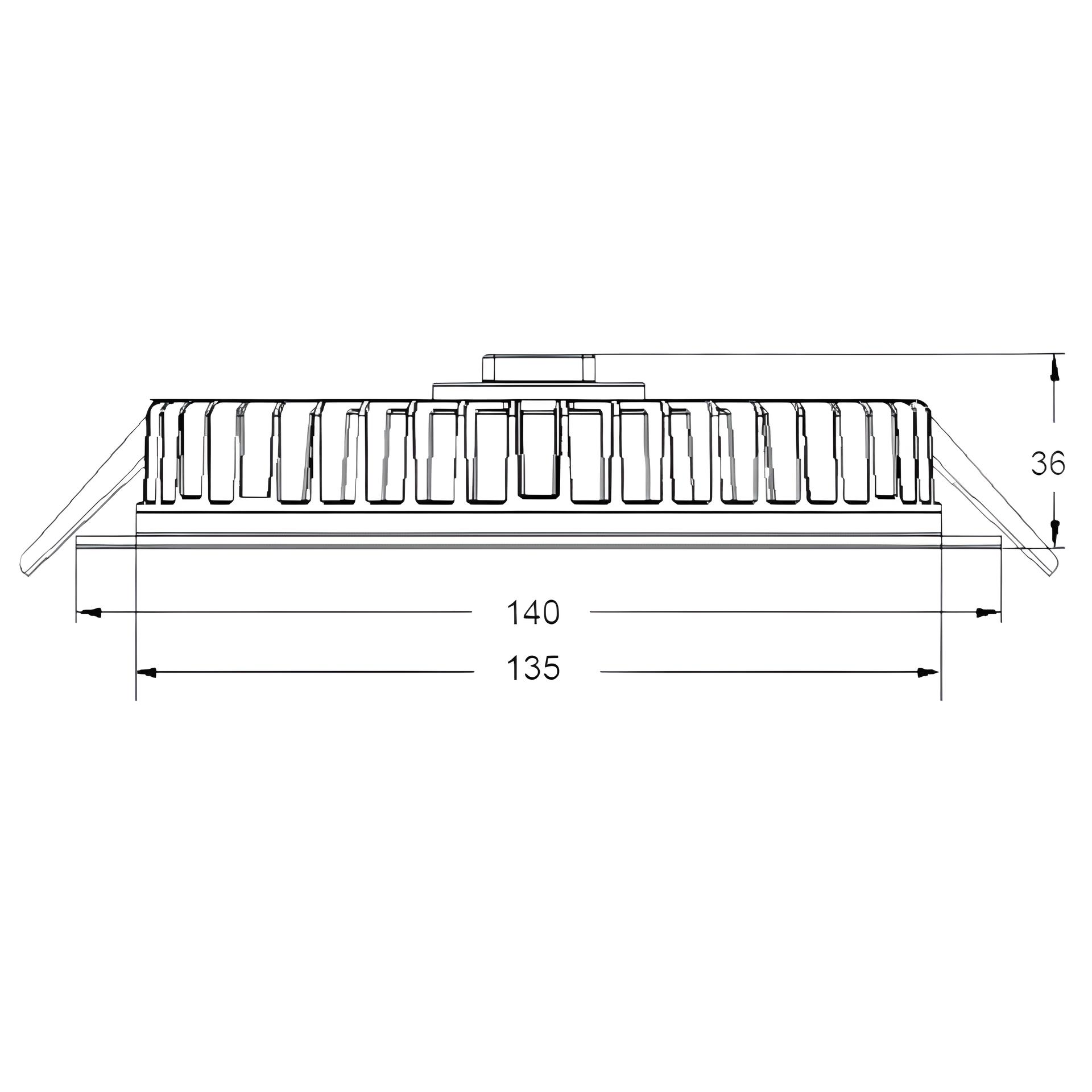

AES-PS-DL-12W-4″-A21-12W 12W 100 140mmØ x 36mmH 125-135mmØ
AES-PS-DL-12W-4″-A21-12W 12W 110 140mmØ x 36mmH 125-135mmØ
AES-PS-DL-12W-4″-A21-12W 12W 120 140mmØ x 36mmH 125-135mmØ

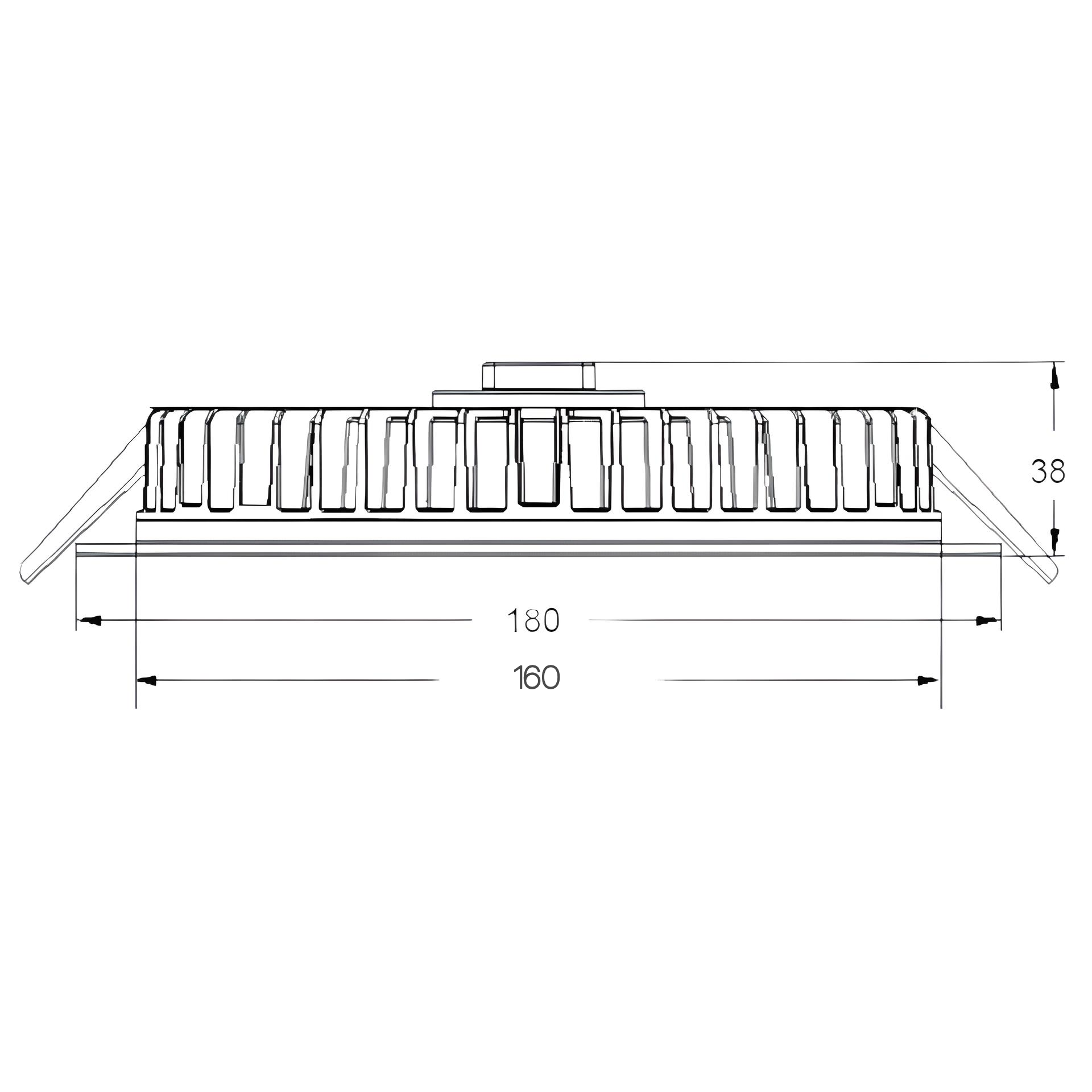

AES-PS-DL-20W-6″-A21-20W 20W 100 180mmØ x 38mmH 160mmØ
AES-PS-DL-20W-6″-A21-20W 20W 110 180mmØ x 38mmH 160mmØ
AES-PS-DL-20W-6″-A21-20W 20W 120 180mmØ x 38mmH 160mmØ

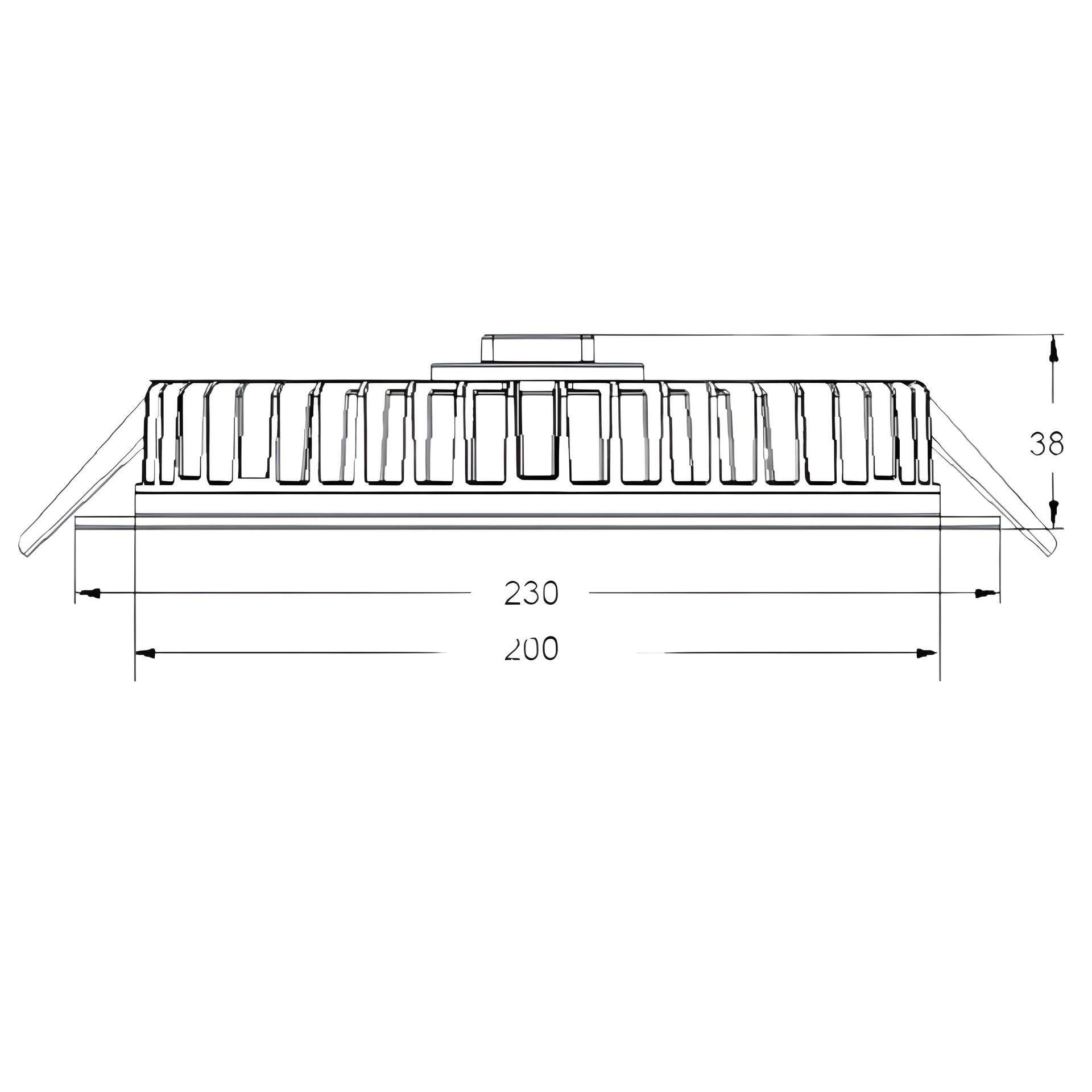

AES-PS-DL-30W-8″-A21-30W 30W 100 230mmØ x 38mmH 200mmØ
AES-PS-DL-30W-8″-A21-30W 30W 110 230mmØ x 38mmH 200mmØ
AES-PS-DL-30W-8″-A21-30W 30W 120 230mmØ x 38mmH 200mmØ
