Macclesfield Series

RECESSED DOWNLIGHT

Overview

  • Diffuser
  • LED Type: Phillips 2835 SMD
  • Non-Dimmable Driver: Boke Flicker-Free
  • Triac Dimmable Driver: AIDimming
  • 0-10V Dimmable Driver: AIDimming
  • DALI Dimmable Driver: Boke Flicker-Free
  • Full 5-year warranty
  • IP Rating: IP20

Customisations

  • Dimming: Non-Dimmable, Triac Dimmable, 0-10V Dimmable or DALI Dimmable
  • Beam Angles: 90°
  • CCT: 2700K, 3000K, 3500K, 4000K, 5000K
  • Trim Colour: White, Black or Custom Colour

Product Details



MODEL NO WATTAGE EFFICACY (Lumens/Watt) SIZE CUTOUT WEIGHT BEAM ANGLE

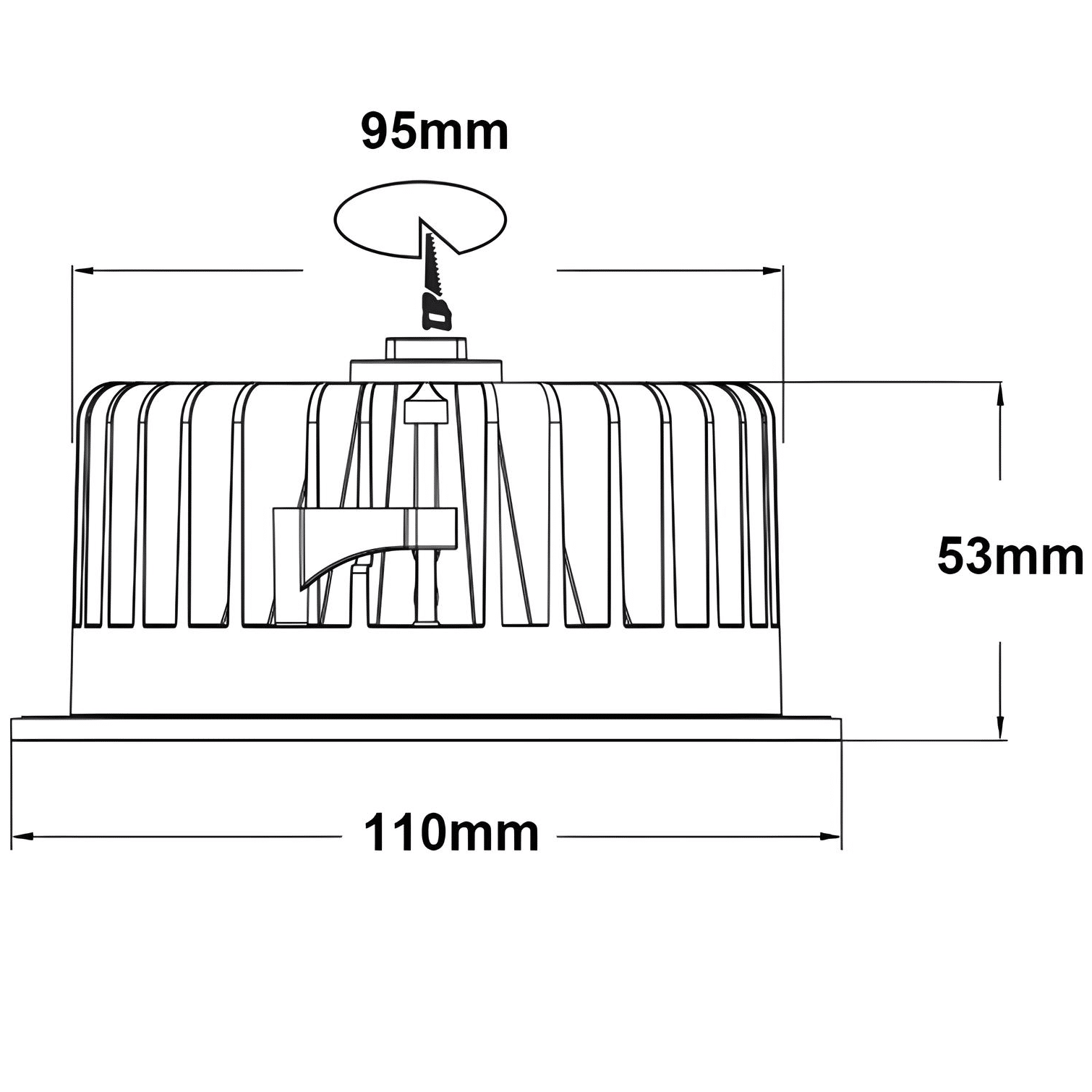

AES-20-A16-110 12W 100lm/W-110lm/W 110mmØ x 53mmH 95mmØ 0.32kg 90°

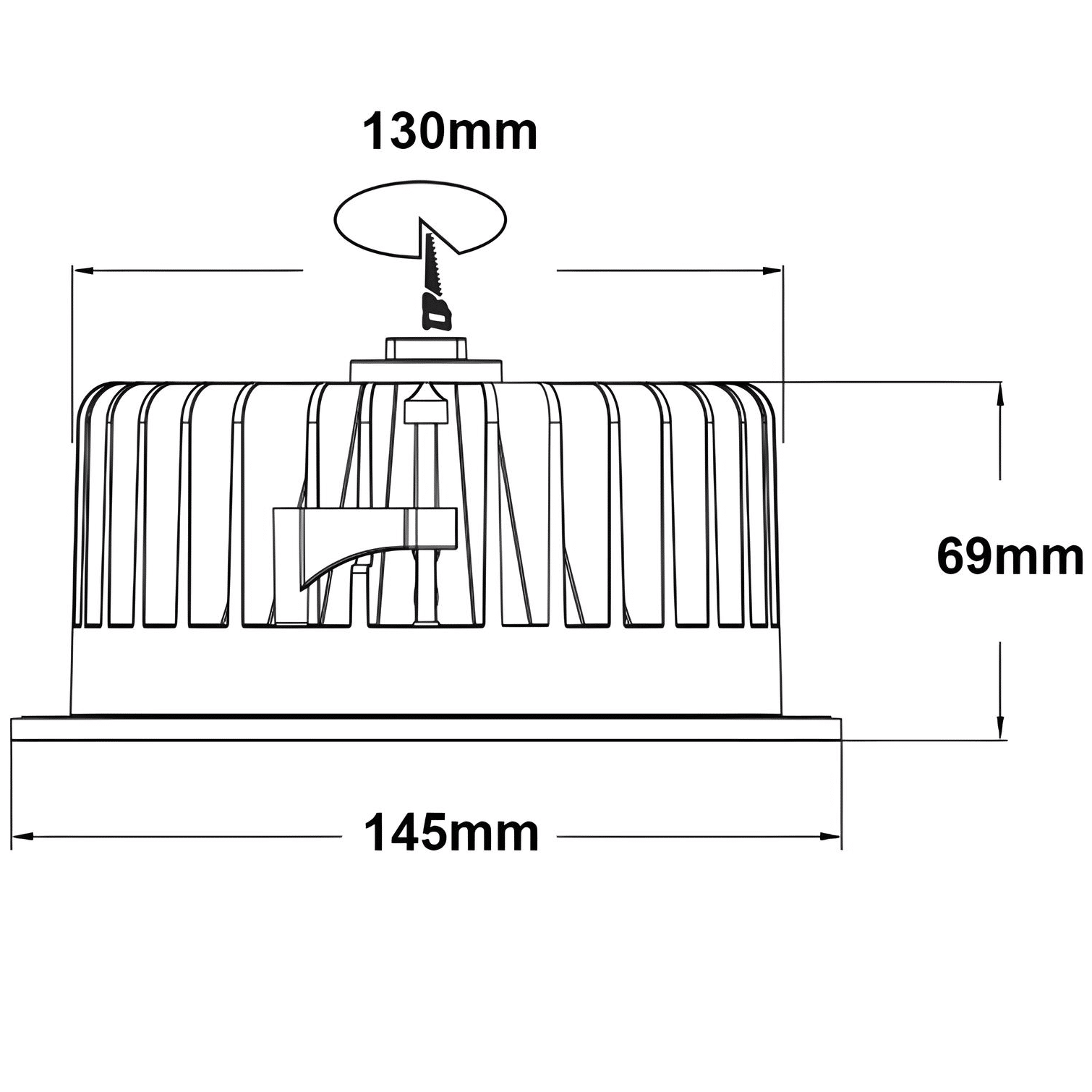

AES-20-A16-145-15W 15W 100lm/W-110lm/W 145mmØ x 69mmH 130mmØ 0.62kg 90°
AES-20-A16-145-20W 20W 100lm/W-110lm/W 145mmØ x 69mmH 130mmØ 0.62kg 90°
AES-20-A16-190-20W 20W 100lm/W-110lm/W 190mmØ x 86mmH 170mmØ 0.98kg 90°
AES-20-A16-190-30W 30W 100lm/W-110lm/W 190mmØ x 86mmH 170mmØ 0.98kg 90°
AES-20-A16-230-30W 30W 100lm/W-110lm/W 230mmØ x 99mmH 210mmØ 1.44kg 90°
AES-20-A16-230-40W 40W 100lm/W-110lm/W 230mmØ x 99mmH 210mmØ 1.44kg 90°
AES-20-A16-230-50W 50W 100lm/W-110lm/W 230mmØ x 99mmH 210mmØ 1.44kg 90°
