Chaffey Series
BATTEN LIGHTS
Overview
LED Type: SMD 2835
Driver: Built In
Full 5-year warranty
IP Rating: IP40 (Suspended / Wall Mounted), IP44 (Surface Mounted)
IK Rating: IK08
Full 5-year warranty
Customisations
Dimming: Non-Dimming, 0-10V Dimming or DALI Dimmable

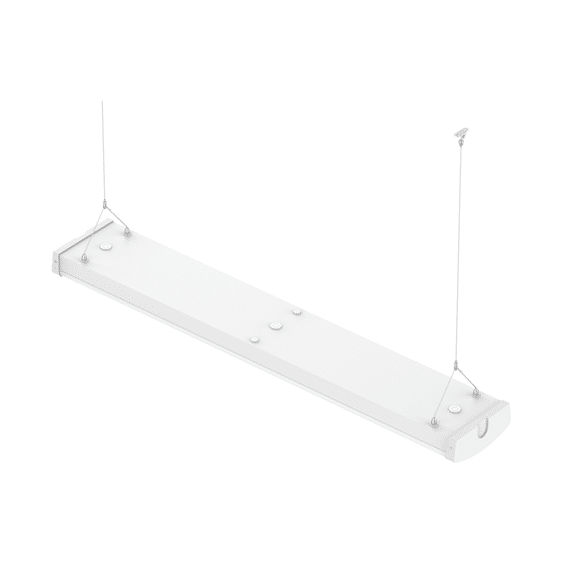

Accessories: Microwave sensor, Suspension Kit
CCT: 3000K, 4000K, 5000K, 5700K or 3CCT: 3000K + 4000K + 5700K
Product Details
MODEL NO
WATTAGE
EFFICACY (Lumens/Watt)
SIZE
WEIGHT
BEAM ANGLE
AES-27-DB106B-600
20W
120lm/W

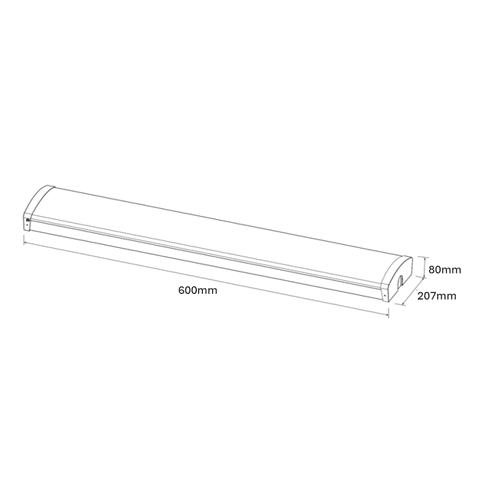

600mmL x 207mmW x 80mmH
1.84kg
120°
AES-27-DB106B-1200
20W-40W
120lm/W

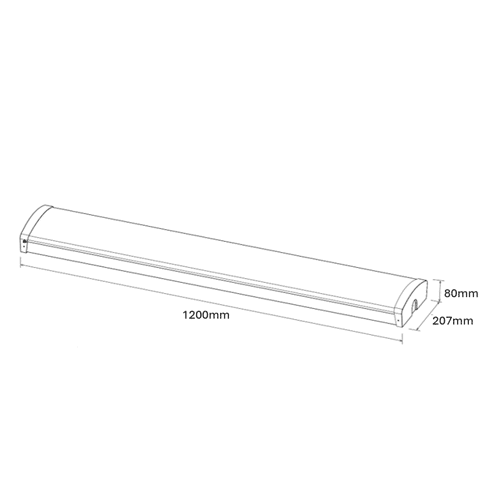

1200mmL x 207mmW x 80mmH
3.33kg
120°
AES-27-DB106B-1500-30W
30W
120lm/W

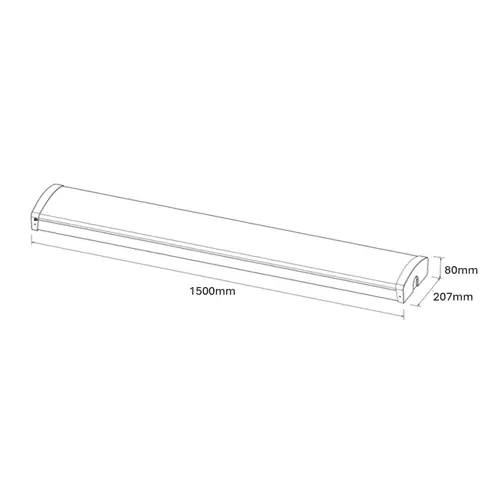

1500mmL x 207mmW x 80mmH
4.16kg
120°
AES-27-DB106B-1500-58W
58W
120lm/W
1500mmL x 207mmW x 80mmH
4.16kg
120°
