Cairns Series

RECESSED DOWNLIGHT

Overview

  • LED Type: SMD 2835
  • Driver: Built Out
  • Full 5-year warranty
  • IP Rating: IP54
  • IK Rating: IK06
  • Trimless

Customisations

  • Dimming: Non-Dimmable, or Triac Dimmable
  • CCT: 3000K, 4000K, 5000K, 5700K or 3CCT: 3000K + 4000K + 5700K

Product Details



MODEL NO WATTAGE EFFICACY (Lumens/Watt) SIZE CUTOUT WEIGHT BEAM ANGLE

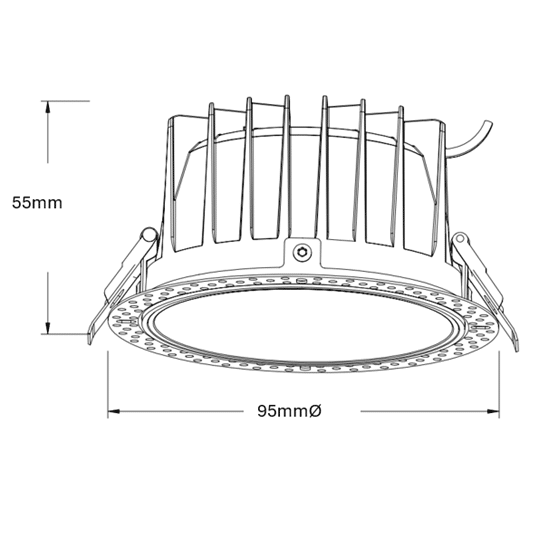

AES-27-DL268B-2.5 8W 80lm/W 95mmØ x 55mmH 82mmØ-88mmØ 0.32kg 60°

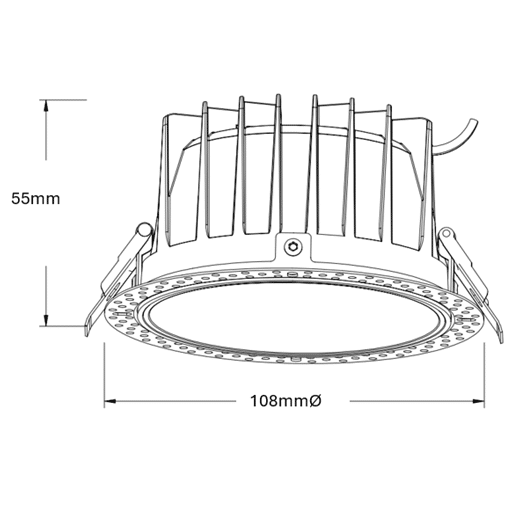

AES-27-DL268B-3 10W 80lm/W 108mmØ x 55mmH 90mmØ-95mmØ 0.35kg 60°

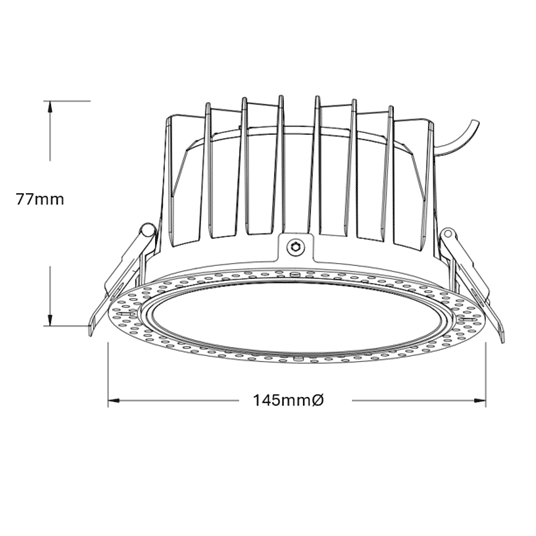

AES-27-DL268B-4 10W, 18W 80lm/W 145mmØ x 77mmH 125mmØ-135mmØ 0.66kg 60°
AES-27-DL268B-6 18W, 25W 80lm/W 172mmØ x 90mmH 150mmØ-165mmØ 0.90kg 60°

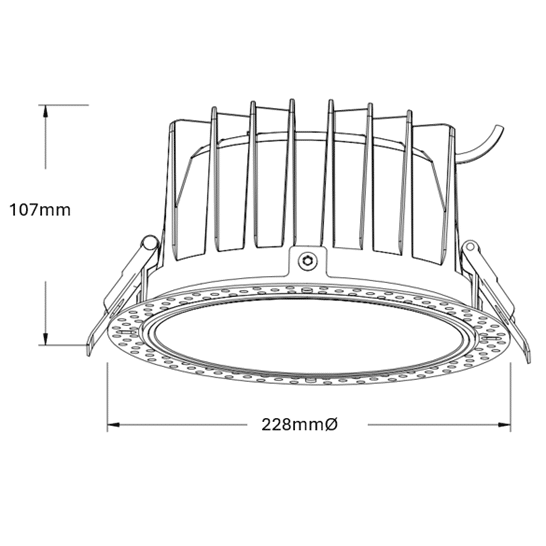

AES-27-DL268B-8 25W, 30W, 40W 80lm/W 228mmØ x 107mmH 200mmØ-210mmØ 1.36kg 60°
AES-27-DL268B-10 35W, 45W, 50W 80lm/W 172mmØ x 90mmH 280mmØ-123mmØ 1.86kg 60°
