Royale Series

RECESSED DOWNLIGHT

Overview

  • Faceted Reflector
  • LED Type: Citizen COB
  • Non-Dimmable Driver: Boke Flicker-Free
  • Triac Dimmable Driver: AIDimming
  • 0-10V Dimmable Driver: AIDimming
  • DALI Dimmable Driver: Boke Flicker-Free
  • Full 5-year warranty
  • IP Rating: IP20
  • Tilt: 90°
  • Horizontal Rotation: 355°

Customisations

  • Dimming: Non-Dimmable, Triac Dimmable, 0-10V Dimmable or DALI Dimmable
  • Beam Angles: 15°, 24°, 38°
  • CCT: 2700K, 3000K, 3500K, 4000K, 5000K
  • Trim Colour: White or Custom Colour

Product Details

MODEL NO WATTAGE EFFICACY (Lumens/Watt) SIZE CUTOUT WEIGHT BEAM ANGLE
AES-20-C38-90 8W-12W 90-100lm/W 90mmØ x 60mmH 75mmØ 0.4kg 15°, 24°, 38°

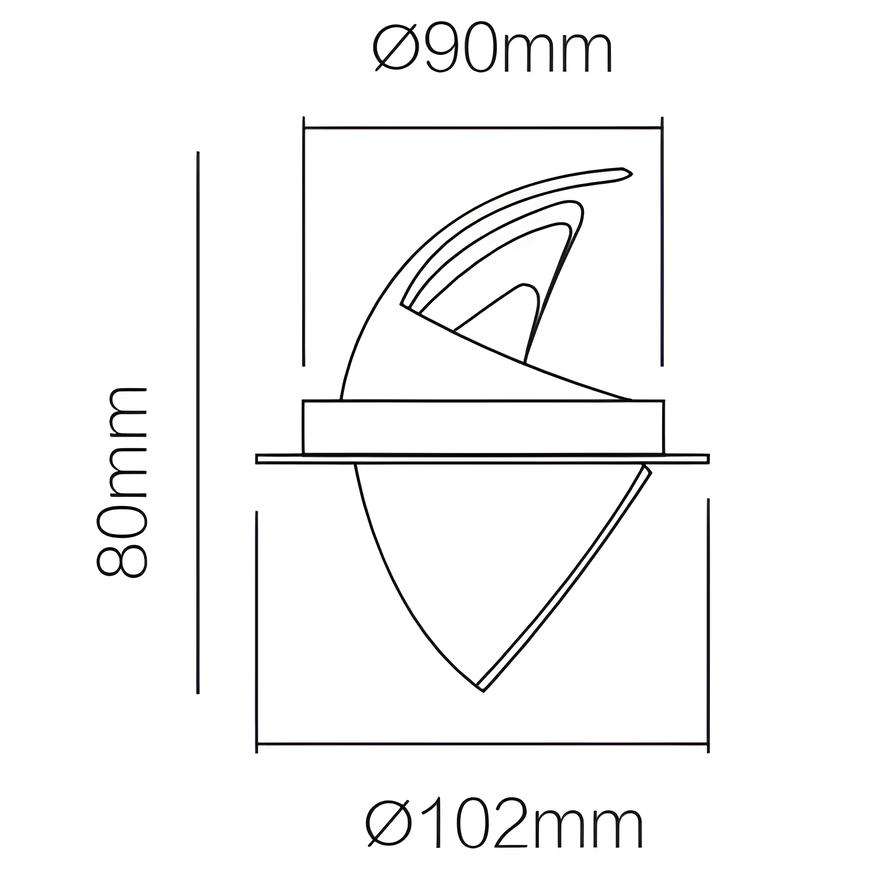

AES-20-C38-102 9W-15W 90-100lm/W 102mmØ x 80mmH 95mmØ 0.5kg 15°, 24°, 38°
AES-20-C38-125 14W-20W 90-100lm/W 125mmØ x 108mmH 110mmØ 0.75kg 15°, 24°, 38°
AES-20-C38-140 19W-25W 90-100lm/W  140mmØ x 115mmH 125mmØ 0.91kg 15°, 24°, 38°

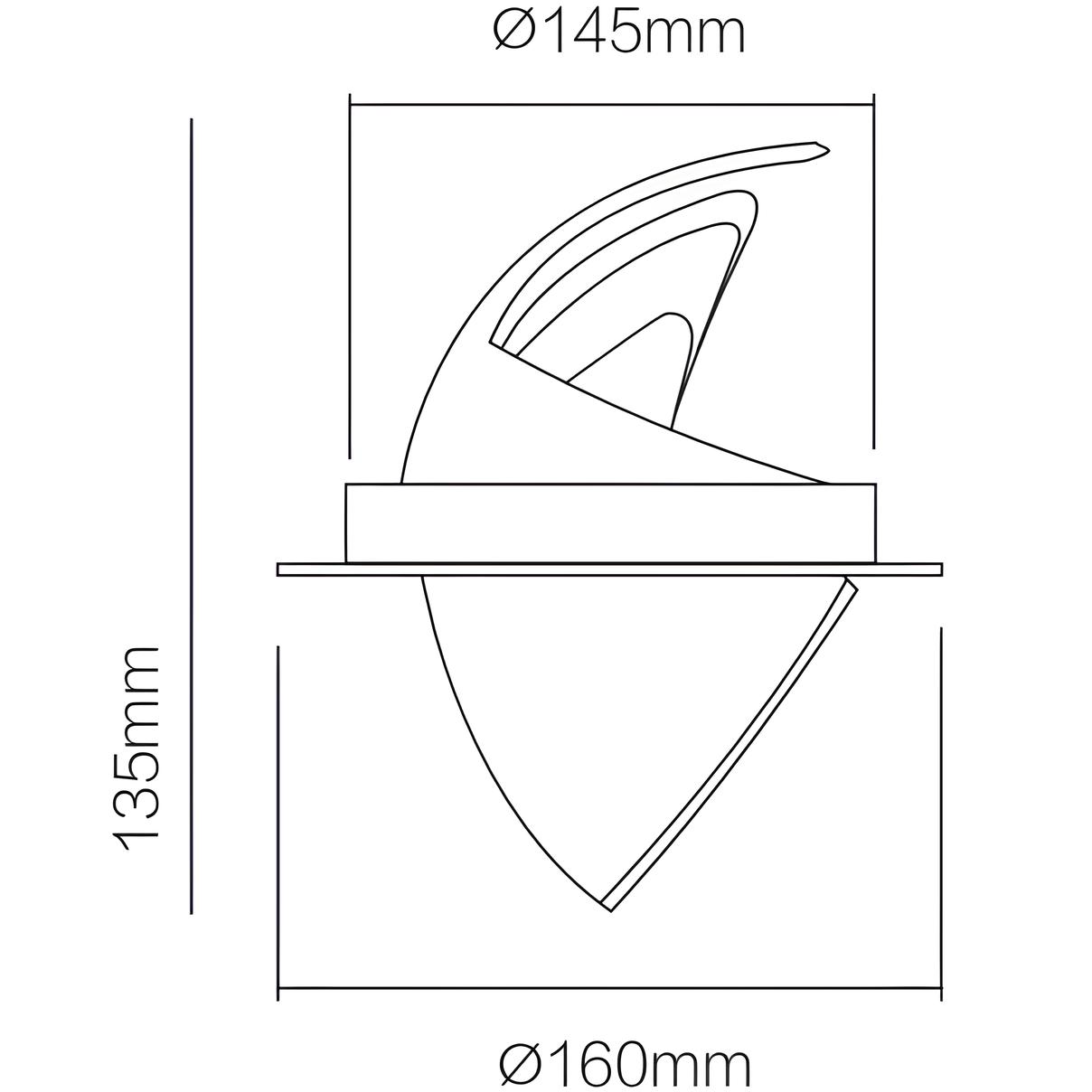

AES-20-C38-160 24W-30W 90-100lm/W 160mmØ x 135mmH 145mmØ 1.2kg 15°, 24°, 38°
AES-20-C38-190-40W 40W 90-100lm/W 190mmØ x 160mmH 175mmØ 1.66kg 15°, 24°, 38°
AES-20-C38-190-50W 50W 90-100lm/W 190mmØ x 160mmH 175mmØ 1.66kg 15°, 24°, 38°
