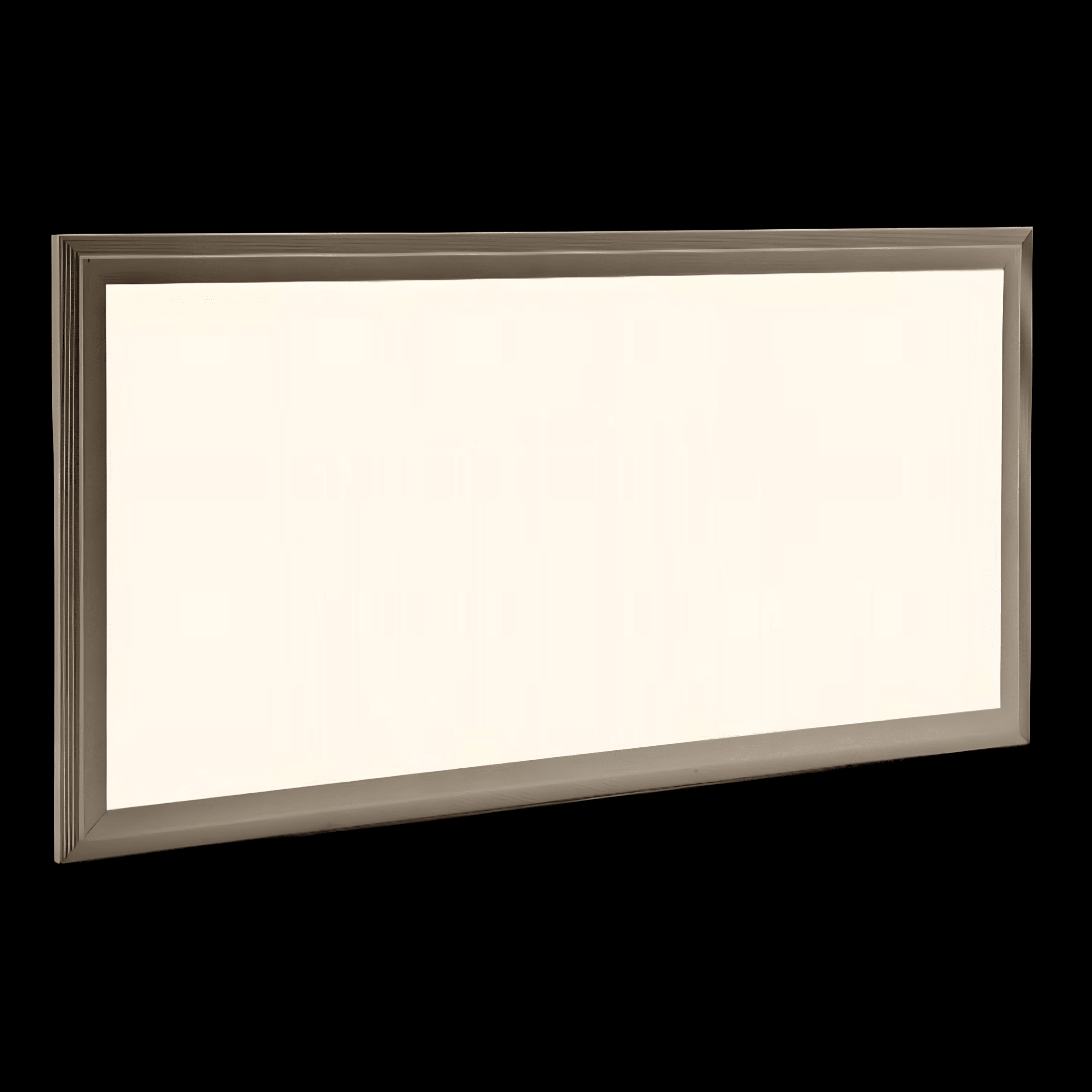

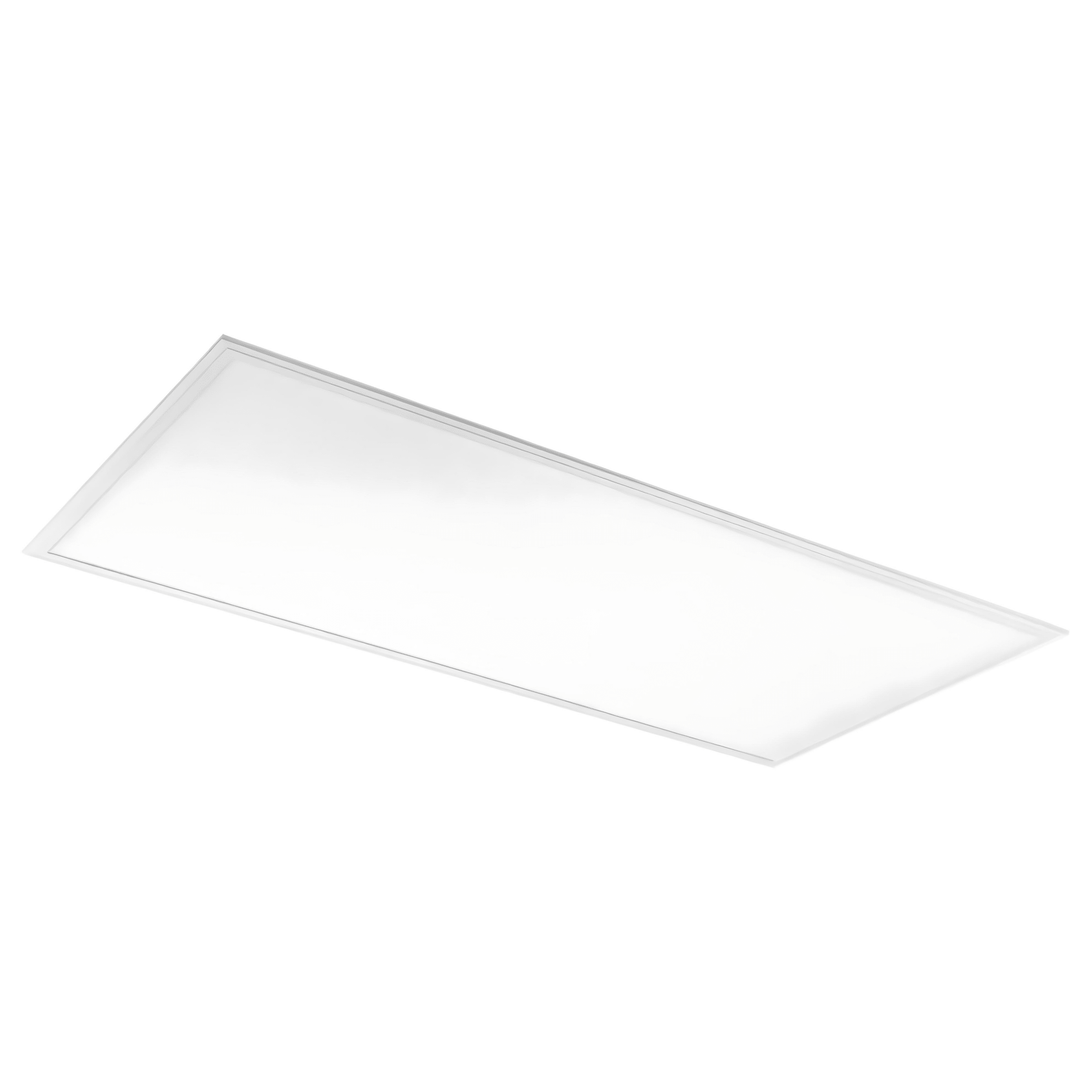

Belgrave EdgeLit Series 1260

LED PANEL FITTING

Overview

  • LED Type: SMD 2835
  • Driver: BOKE
  • Full 5-year warranty
  • IP Rating: IP20

Customisations

  • CCT: 3000K, 4000K, 5000K or 3CCT: 3000K + 4000K + 5000K
  • Trim Colour: White or Custom Colour
  • Surface Mount, Plaster Recess options available
  • UGR<19 Prismatic Diffuser available (90°)

Product Details

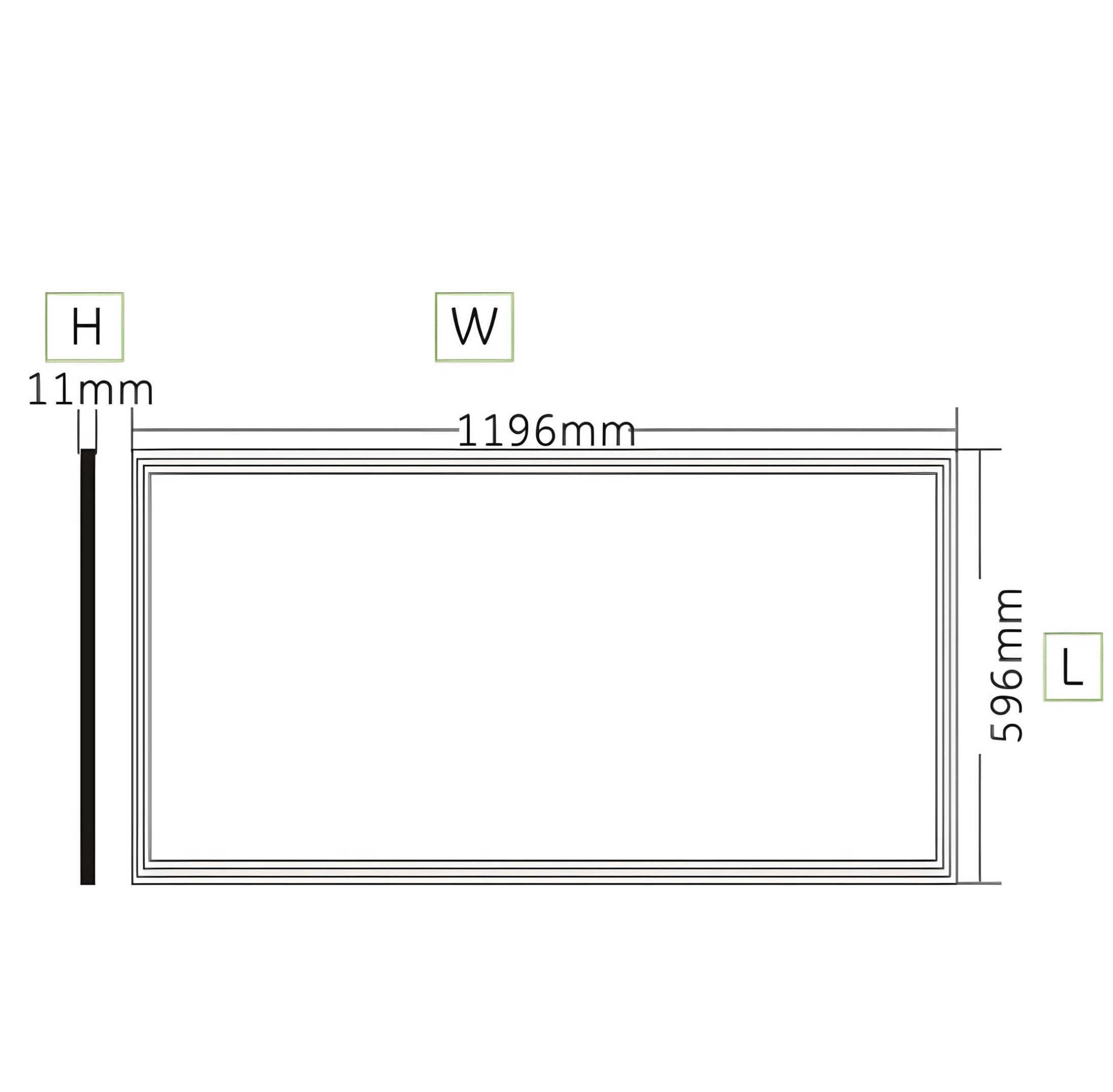

MODEL NO WATTAGE EFFICACY (Lumens/Watt) SIZE WEIGHT BEAM ANGLE
AES-08-B1260-50W 50W 100lm/W or 110lm/W 1195mmL x 595mmW x 11mmH 5.15kg  120° (UGR <19 90°)
AES-08-B1260-55W 55W 100lm/W or 110lm/W 1195mmL x 595mmW x 11mmH 5.15kg  120° (UGR <19 90°)
AES-08-B1260-60W 60W 100lm/W or 110lm/W 1195mmL x 595mmW x 11mmH 5.15kg  120° (UGR <19 90°)
AES-08-B1260-65W 65W 100lm/W or 110lm/W 1195mmL x 595mmW x 11mmH 5.15kg  120° (UGR <19 90°)
AES-08-B1260-70W 70W 100lm/W or 110lm/W 1195mmL x 595mmW x 11mmH 5.15kg  120° (UGR <19 90°)
AES-08-B1260-72W 72W 100lm/W or 110lm/W 1195mmL x 595mmW x 11mmH 5.15kg  120° (UGR <19 90°)
