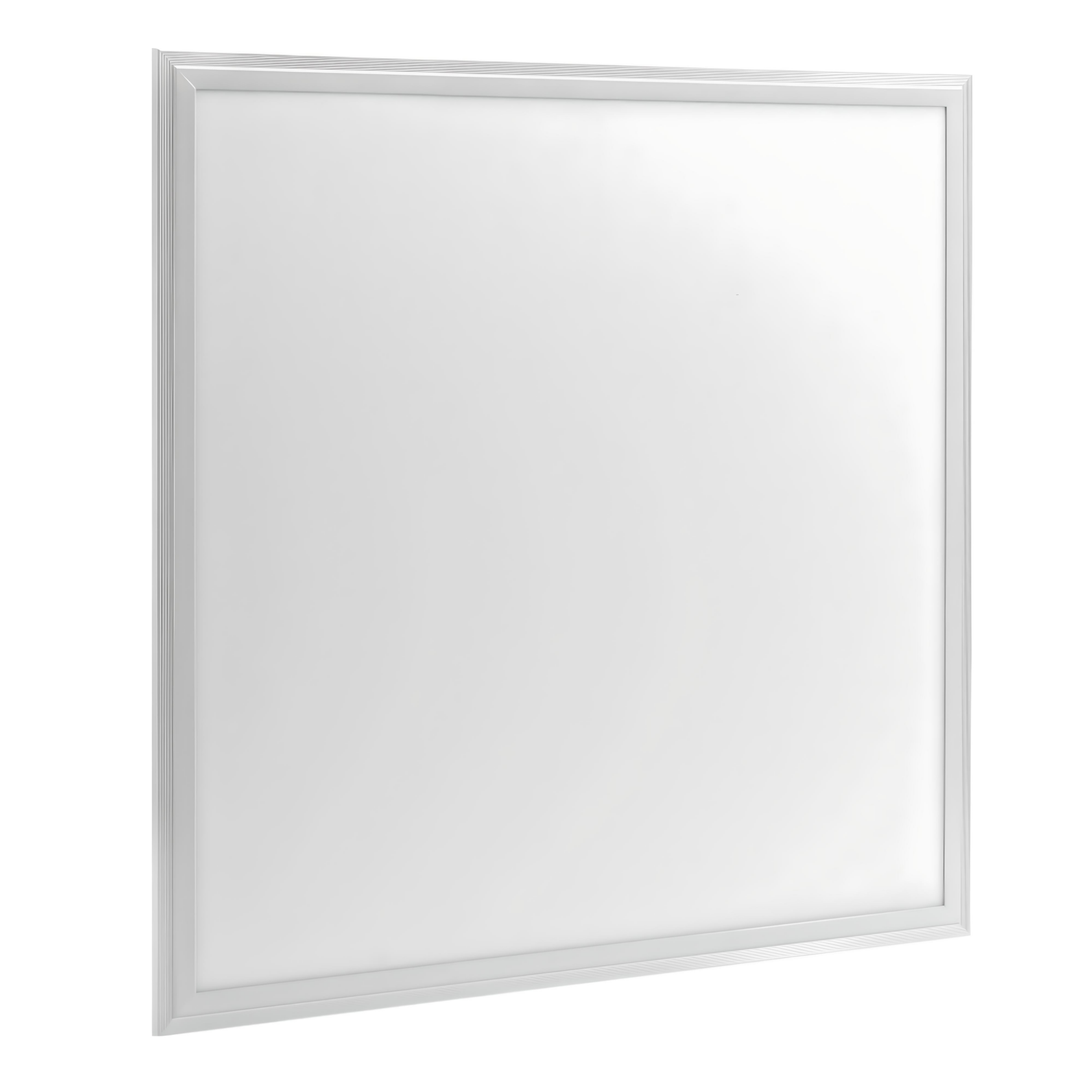

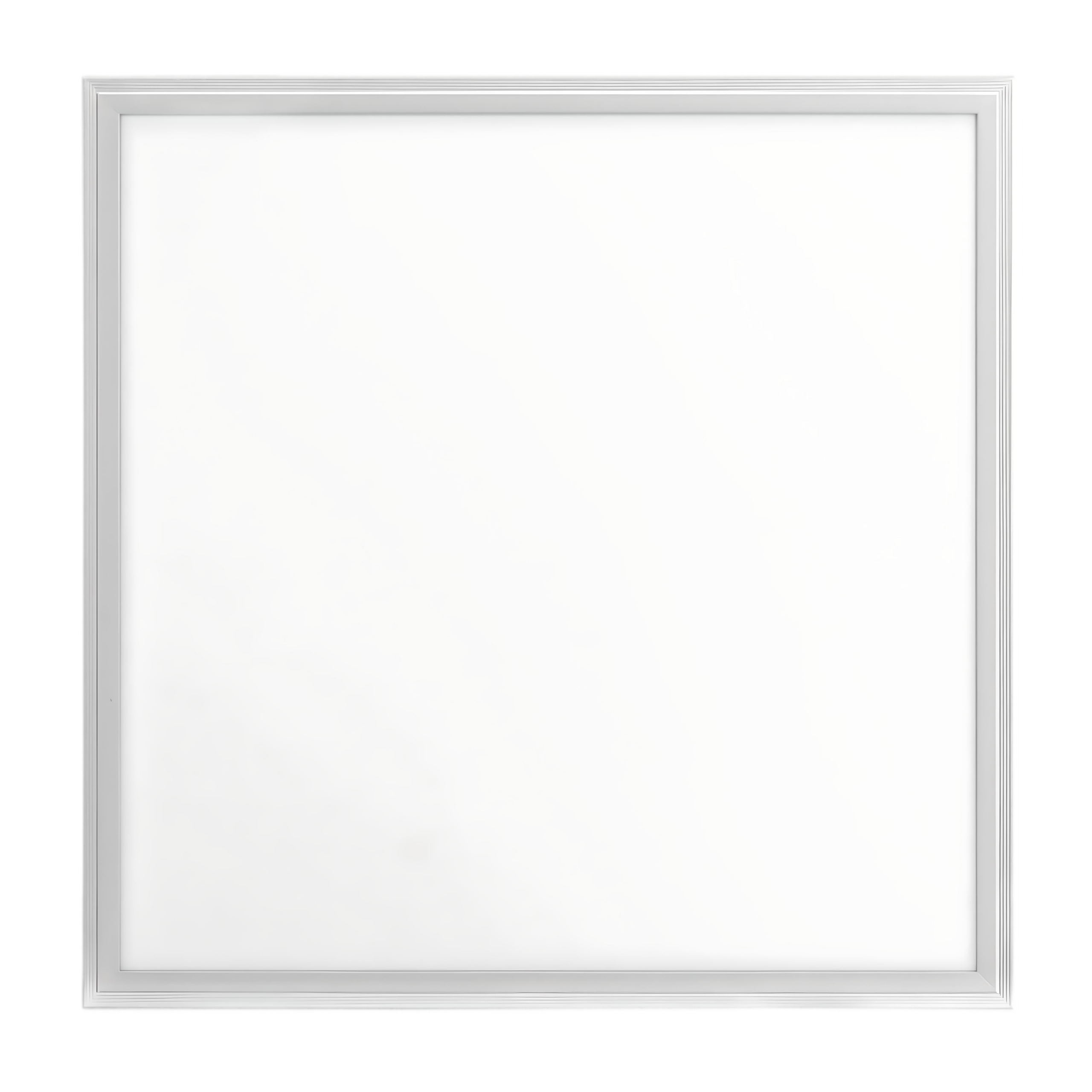

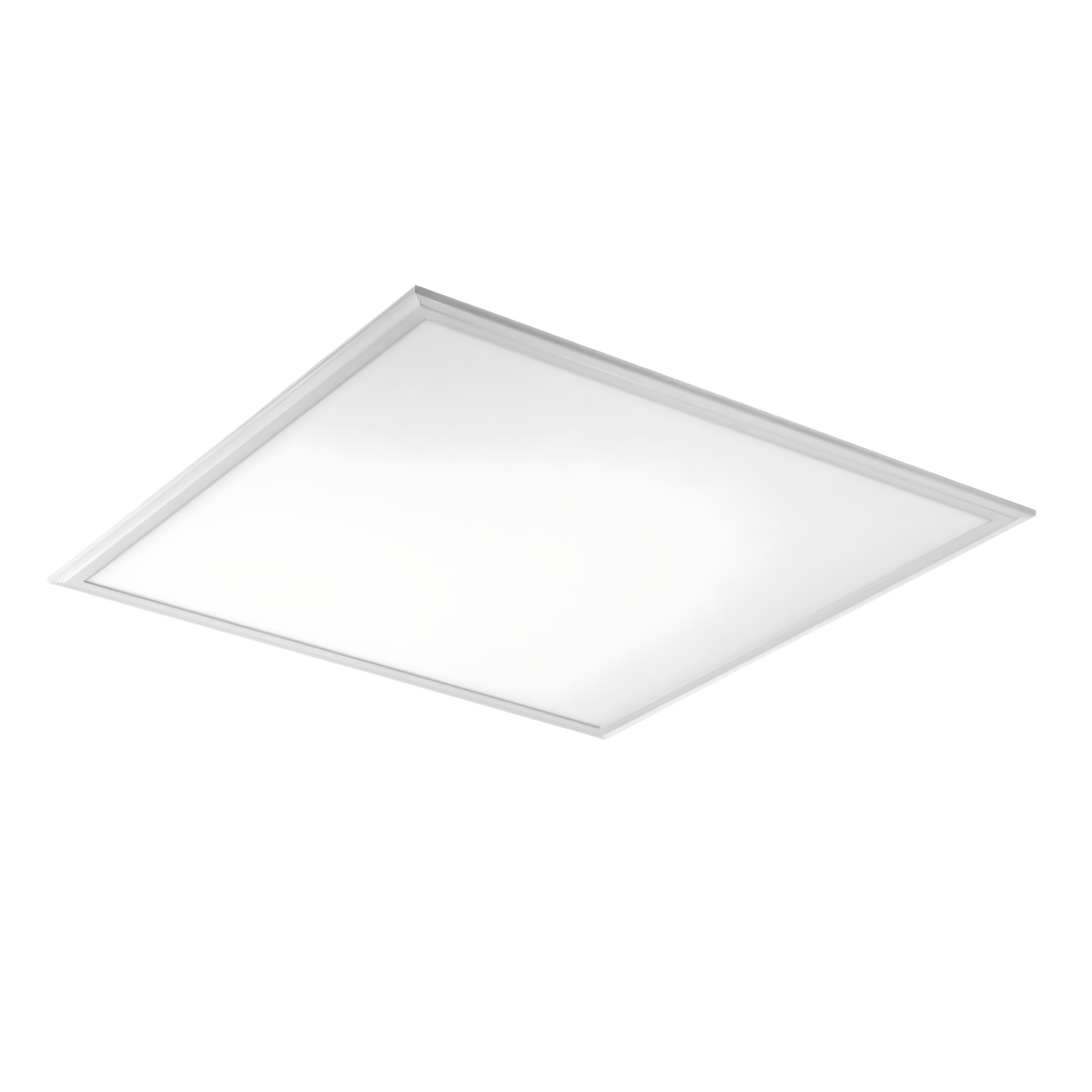

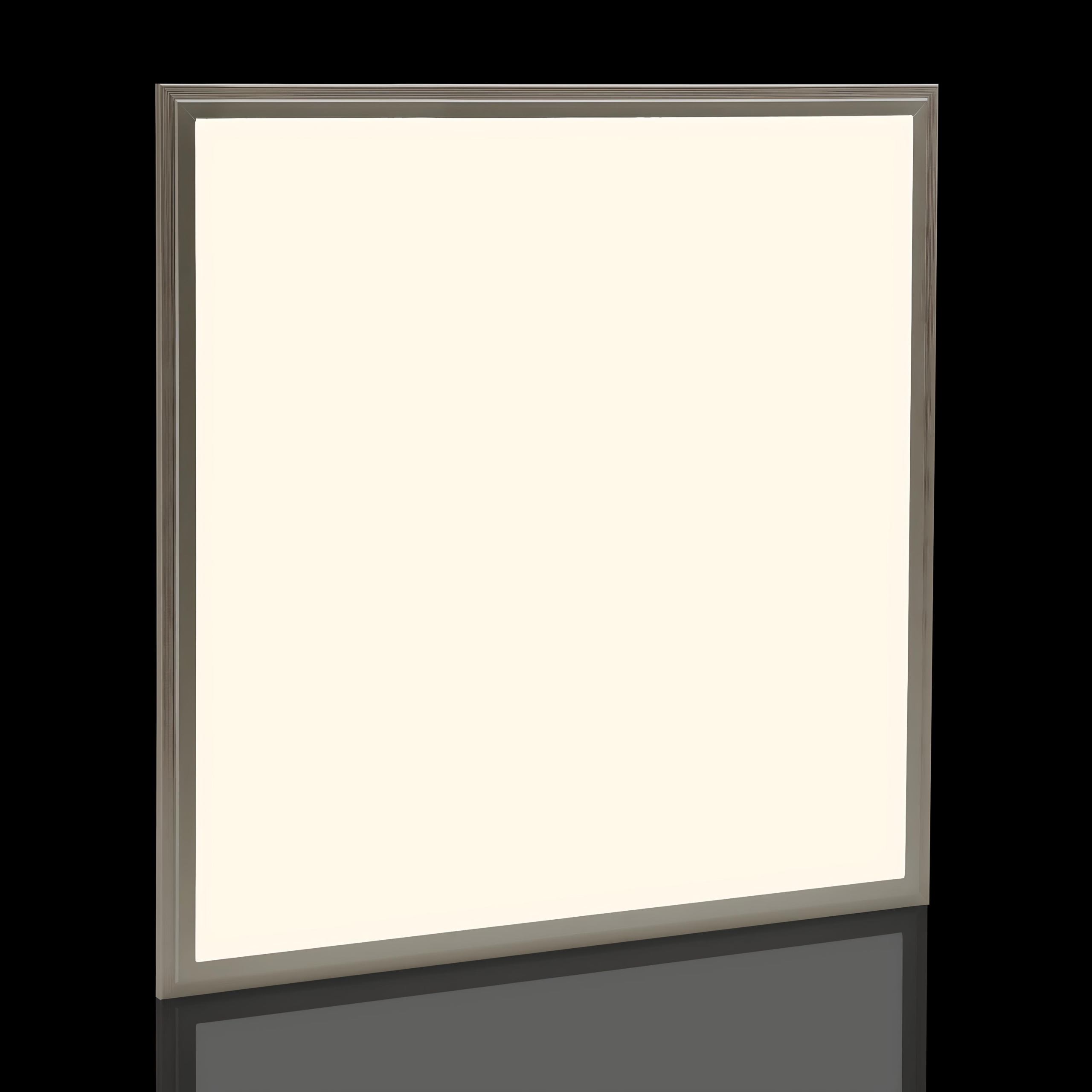

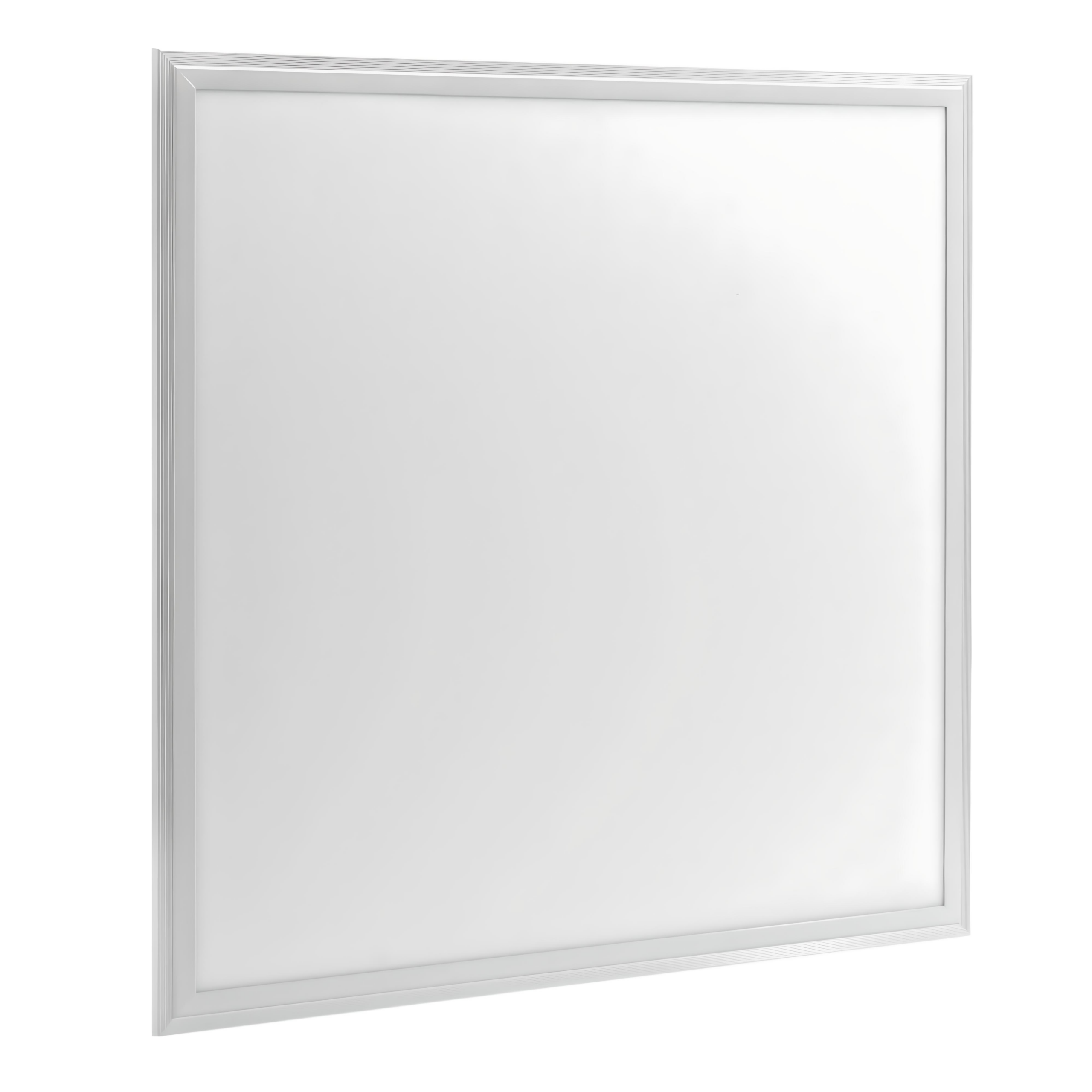

Belgrave EdgeLit Series 6060

LED PANEL FITTING

Overview

  • LED Type: SMD 2835
  • Driver: BOKE
  • Full 5-year warranty
  • IP Rating: IP20

Customisations

  • CCT: 3000K, 4000K, 5000K or 3CCT: 3000K + 4000K + 5000K
  • Trim Colour: White or Custom Colour
  • Surface Mount, Plaster Recess options available
  • UGR<19 Prismatic Diffuser available (90°)

Product Details



MODEL NO WATTAGE EFFICACY (Lumens/Watt) LUMEN OUTPUT SIZE WEIGHT BEAM ANGLE
AES-08-B6060-20W 20W 100lm/W-110lm/W 2000lm or 2200lm 595mmL x 295mmW x 11.5mmH 2.81kg 120° (UGR <19 90°)
AES-08-B6060-25W 25W 100lm/W-110lm/W 2500lm or 2750lm 595mmL x 295mmW x 11.5mmH 2.81kg 120° (UGR <19 90°)
AES-08-B6060-30W 30W 100lm/W-110lm/W 3000lm or 3300lm 595mmL x 295mmW x 11.5mmH 2.81kg 120° (UGR <19 90°)
AES-08-B6060-35W 35W 100lm/W-110lm/W 3500lm or 3850lm 595mmL x 295mmW x 11.5mmH 2.81kg 120° (UGR <19 90°)
AES-08-B6060-40W 40W 100lm/W-110lm/W 4000lm or 4400lm 595mmL x 295mmW x 11.5mmH 2.81kg 120° (UGR <19 90°)
