Bagnoo Series

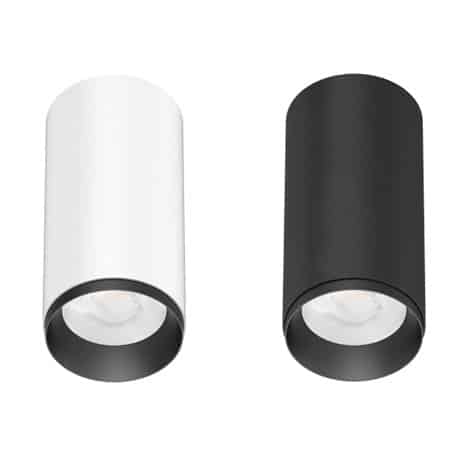

SURFACE MOUNTED DOWNLIGHT

Overview

  • LED Type: Citizen COB
  • Driver: Built-In
  • Full 5-year warranty
  • IP Rating: IP20

Customisations

  • Dimming: Non-Dimmable, Triac Dimmable or DALI Dimmable
  • Beam Angles: 24°, 36°, 60°
  • CCT: 2700K, 3000K, 4000K, 5000K
  • Trim Colour: White, Black or Custom Colour
  • Internal Colour: White, Black or Custom Colour

Product Details

MODEL NO WATTAGE EFFICACY (Lumens/Watt) SIZE WEIGHT BEAM ANGLE

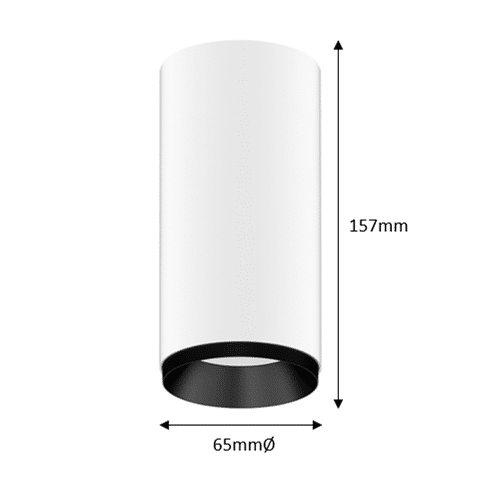

AES-27-DL228A-65-10W 10W 100lm/W 65mmØ x 157mmH 0.55kg 24°, 36°, 60°
AES-27-DL228A-65-15W 15W 100lm/W 65mmØ x 157mmH 0.55kg 24°, 36°, 60°
AES-27-DL228A-85-20W 20W 100lm/W 85mmØ x 178mmH 0.77kg 24°, 36°, 60°
AES-27-DL228A-85-25W 25W 100lm/W 85mmØ x 178mmH 0.77kg 24°, 36°, 60°

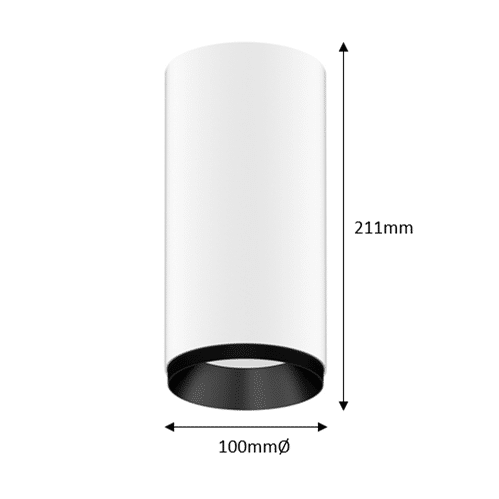

AES-27-DL228A-100-30W 30W 100lm/W 100mmØ x 211mmH 1.1kg 24°, 36°, 60°
AES-27-DL228A-100-40W 40W 100lm/W 100mmØ x 211mmH 1.1kg 24°, 36°, 60°
