Abington Series – SMD

RECESSED DOWNLIGHT

Overview

  • LED Type: SMD
  • Non-Dimmable Driver: Lifud
  • Triac Dimmable Driver: AIDimming
  • 0-10V Dimmable Driver: CUPower
  • DALI Dimmable Driver: CUPower
  • Full 5-year warranty
  • IP Rating: IP20

Customisations

  • Dimming: Non-Dimmable, Triac Dimmable, 0-10V Dimmable or DALI Dimmable
  • CCT: 2700K, 3000K, 3500K, 4000K, 5000K, 6500K

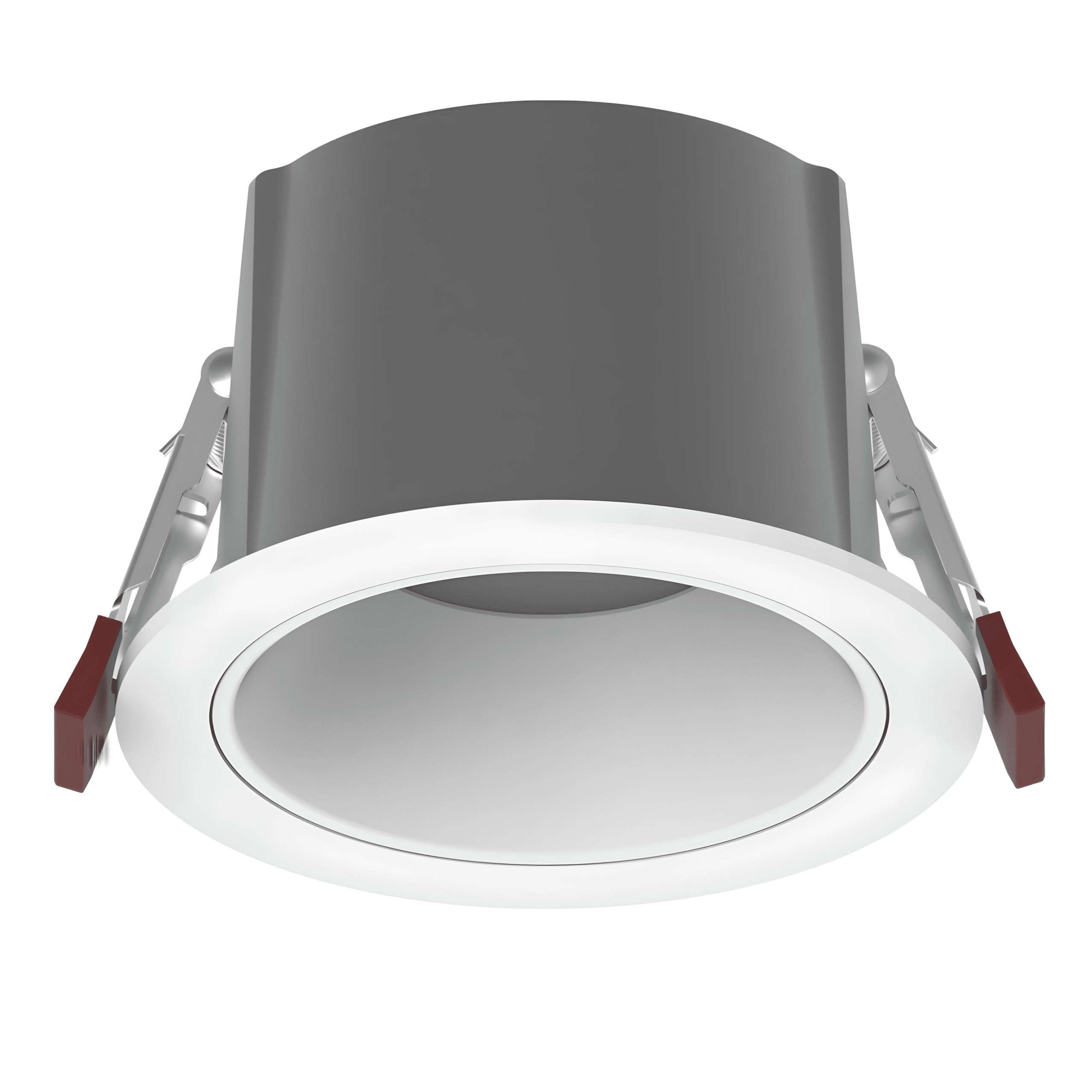

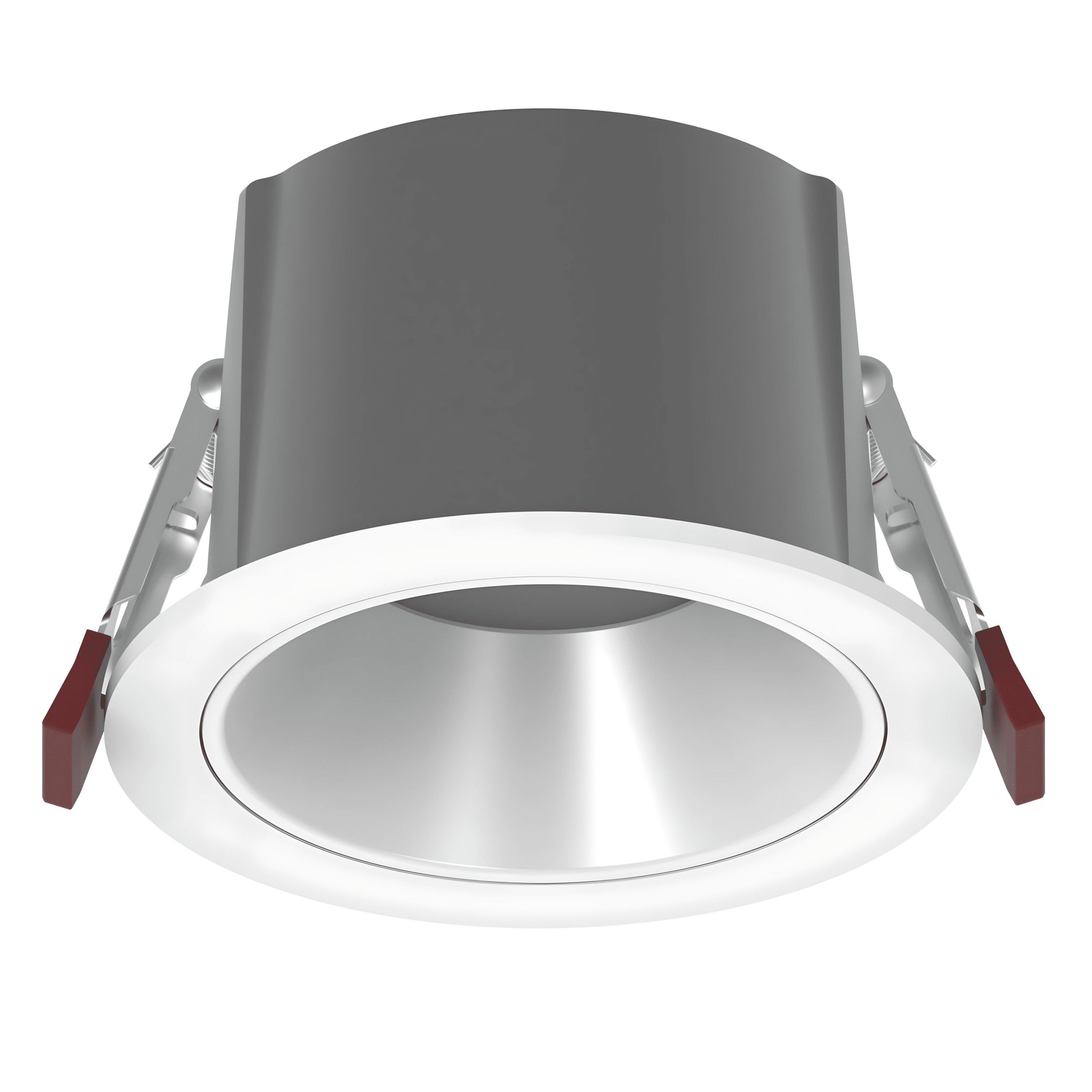

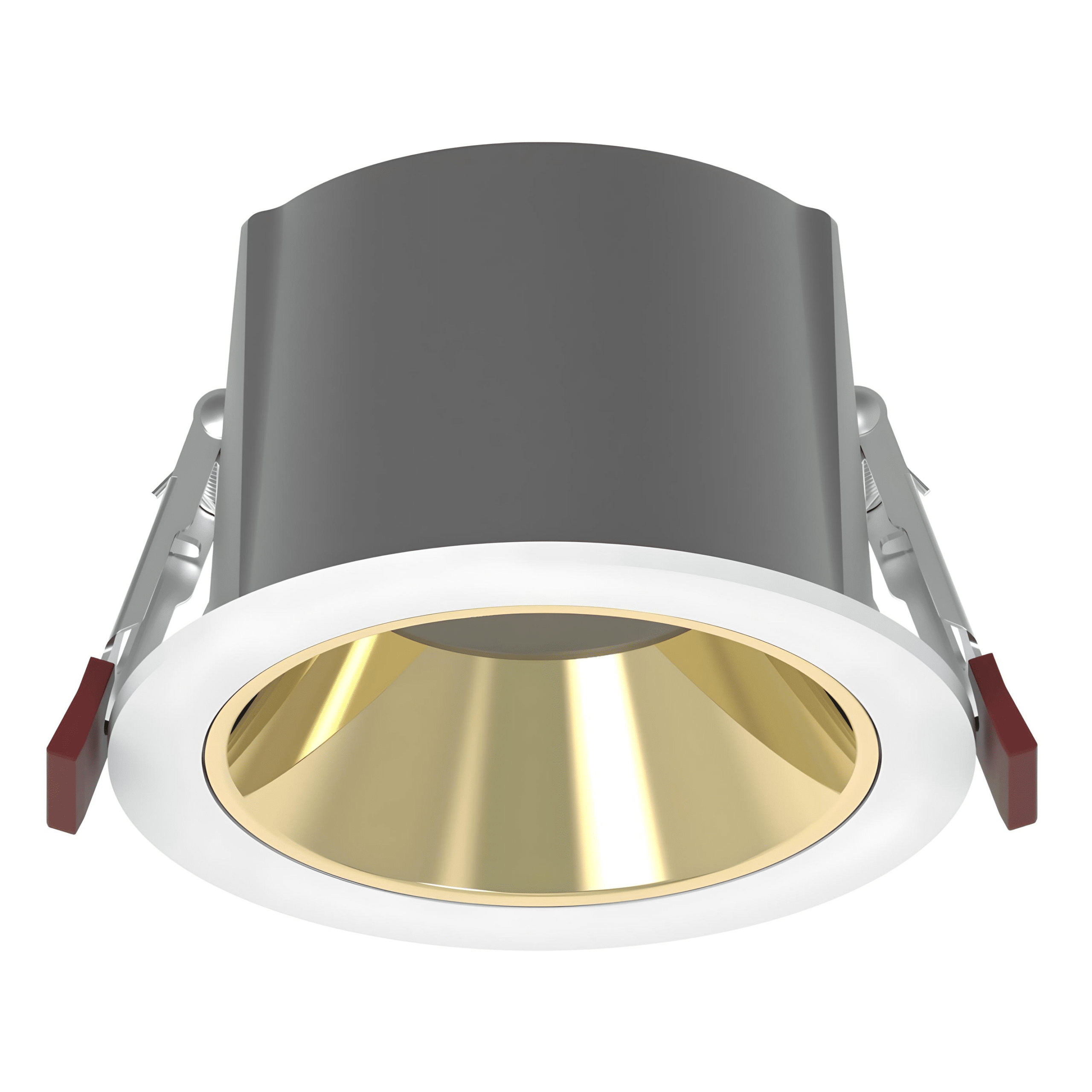

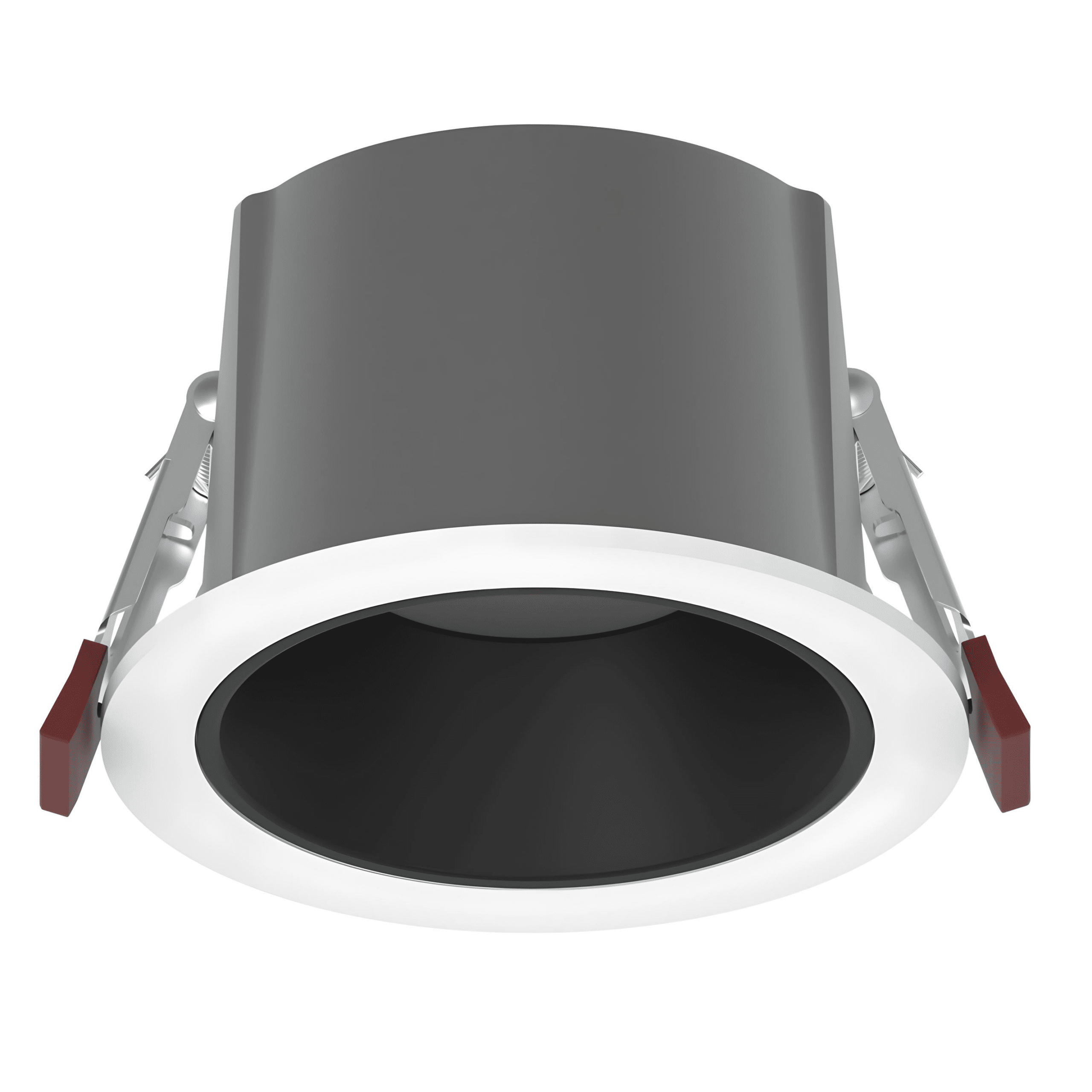

  • Internal Colour: White, Black, Matt Black, Shiny Silver, Shiny Black or Custom Colour
  • External Colour: White, Black or Custom Colour

Product Details

MODEL NO WATTAGE EFFICACY (Lumens/Watt) SIZE CUTOUT WEIGHT BEAM ANGLE

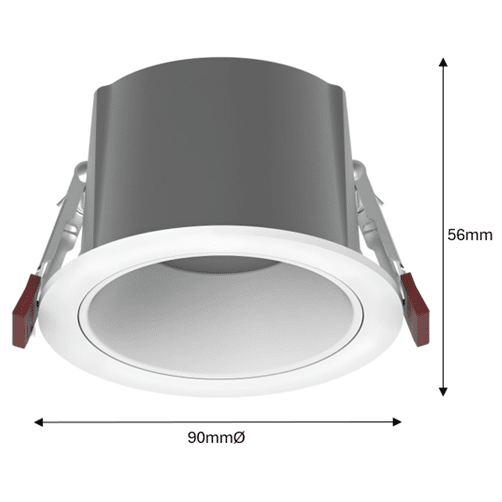

AES-15-ALPS-90-SMD 12W 90lm/W 90mmØ x 56mmH 75mmØ 0.30kg 100°
AES-15-ALPS-95-SMD 15W 90lm/W 95mmØ x 60mmH 80mmØ 0.33kg 100°

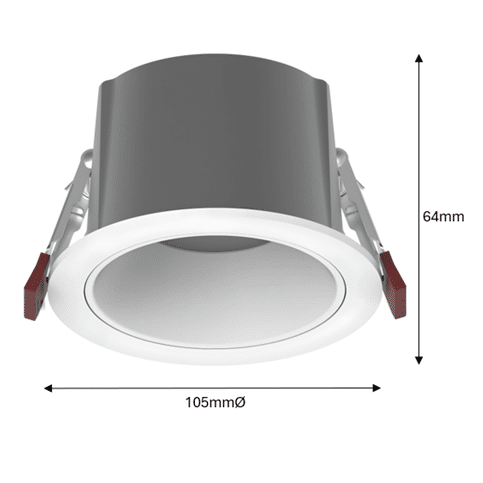

AES-15-ALPS-105-SMD 18W 90lm/W 105mmØ x 64mmH 95mmØ 0.38kg 100°

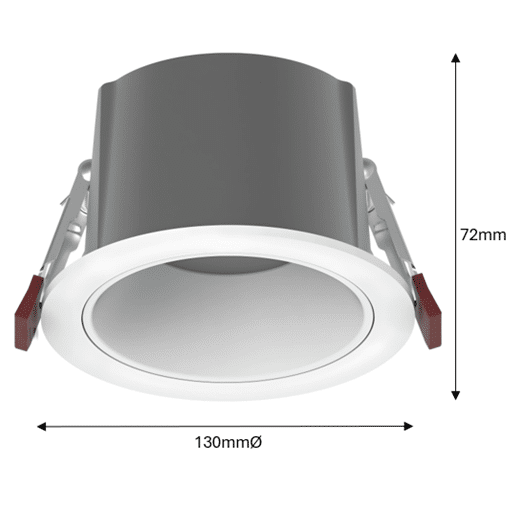

AES-15-ALPS-130-SMD 20W 90lm/W 130mmØ x 72mmH 120mmØ 0.57kg 100°

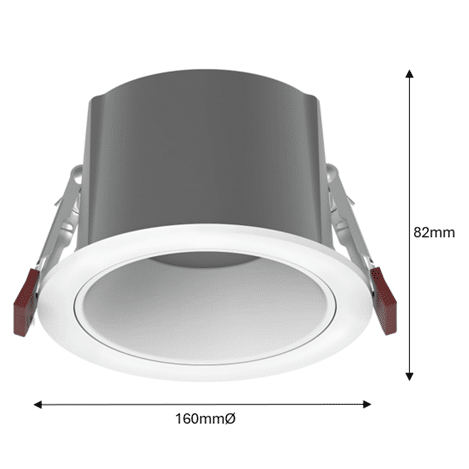

AES-15-ALPS-160-SMD 30W 90lm/W 160mmØ x 82mmH 145mmØ 0.87kg 100°

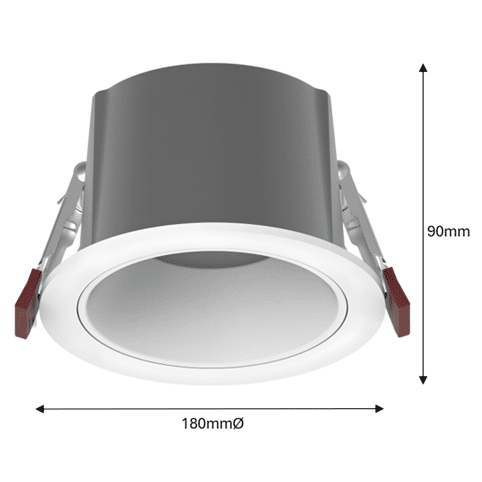

AES-15-ALPS-180-SMD 40W 90lm/W 180mmØ x 90mmH 160mmØ 1.02kg 100°

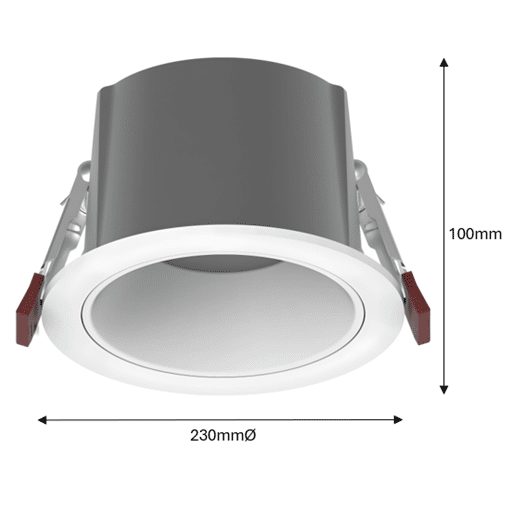

AES-15-ALPS-230-SMD 50W 90lm/W 230mmØ x 100mmH 200mmØ 1.75kg 100°
